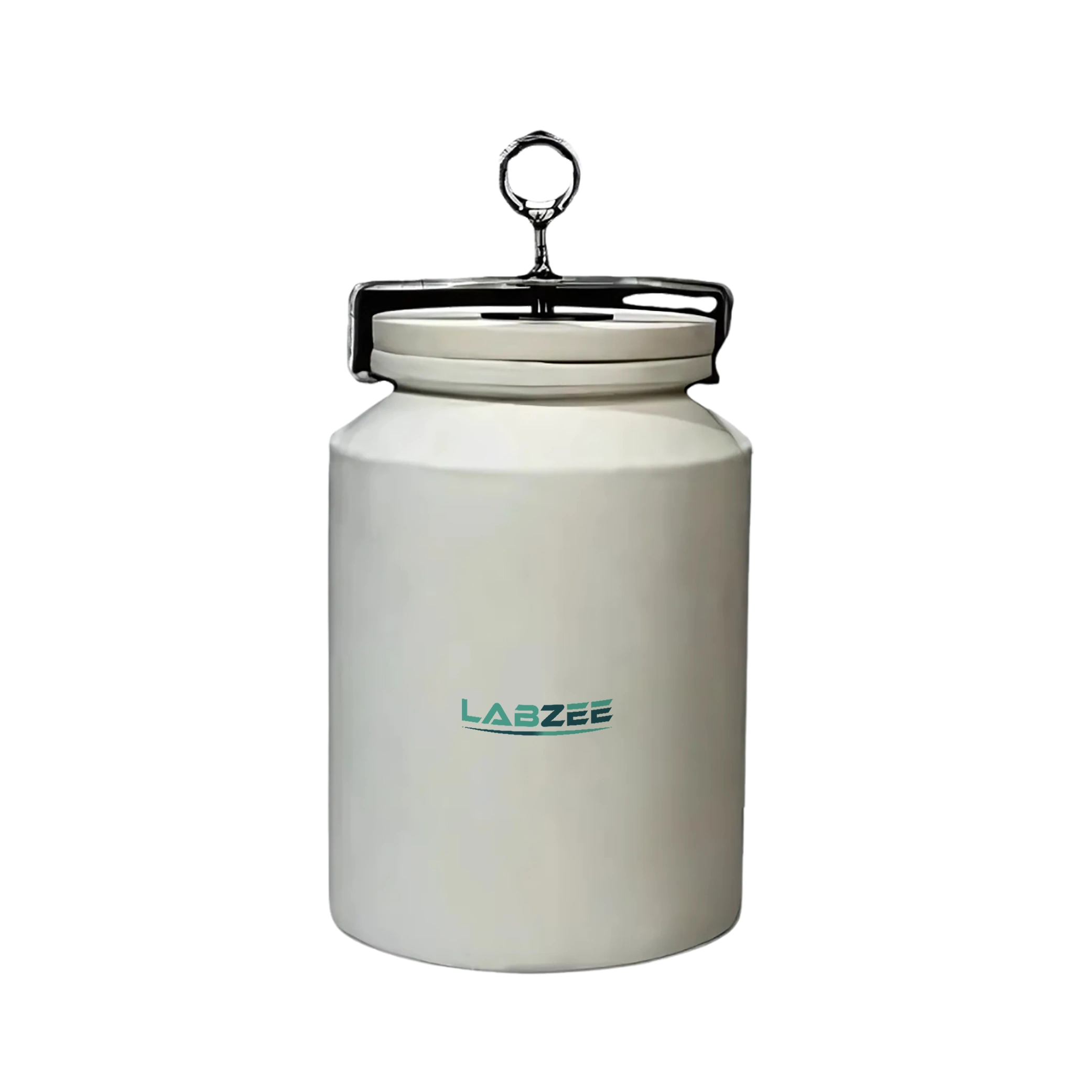

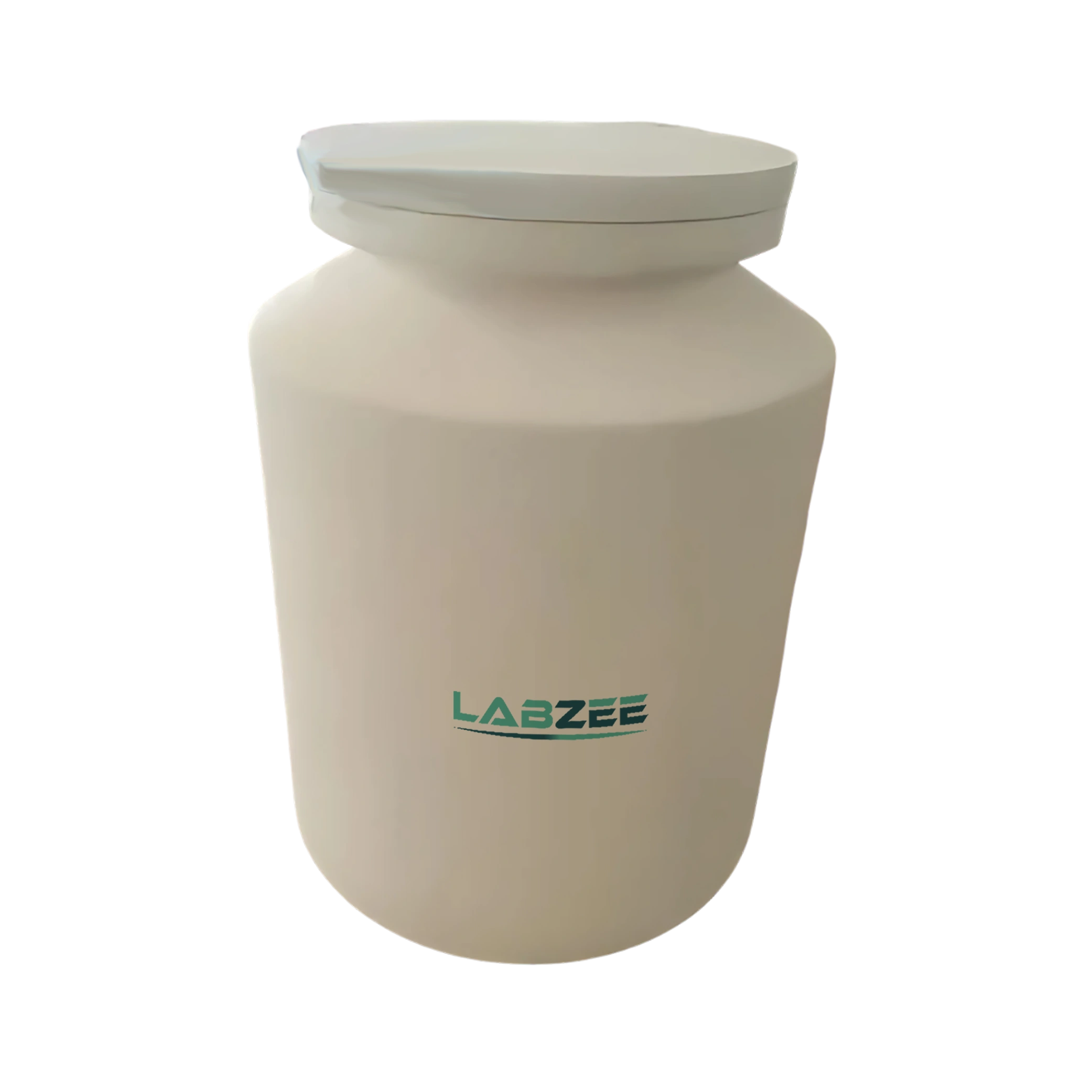

Horizontal Nylon Ball Mill Jar BZHNJ-507 is a large-capacity, contamination-free milling jar engineered for precision grinding of soft, moisture-sensitive, and chemically reactive materials. This Ball Mill Jar features a wall thickness of 16 mm and a cover thickness of 18 mm, delivering exceptional durability and shock absorption during continuous operation. It is made from high-grade nylon, offering low noise performance, chemical resistance, and lightweight handling. Its horizontal configuration ensures balanced energy transfer, promoting consistent and uniform milling. Our Horizontal Nylon Ball Mill Jar BZHNJ-507 is ideal for dispersing pigments, blending polymers, and processing low-reactivity compounds in bulk.
| Volume | 10 L |
| Height | 341 mm |
| Wall Thickness | 16 mm |
| Cover Thickness | 18 mm |
| Internal Diameter | 218 mm |
| External Diameter | 250 mm |
| Bottom Diameter | 250 mm |
| Cover Weight | 0.477 Kg |
| Grinding Jar Weight | 5.813 Kg |
Our Horizontal Nylon Ball Mill Jar BZHNJ-507 is best suited for pigment dispersion, cosmetic compound mixing, polymer batch processing, and soft material homogenization in controlled lab and industrial environments.
Frequently Asked Questions
1: What does the capacity of the Horizontal Nylon Ball Mill Jar BZHNJ-507?
The BZHNJ-507 has a 10 L capacity, making it suitable for large-batch milling of soft or reactive materials.
2: Can you use BZHNJ-507 for cosmetic and pigment formulations?
Yes, its smooth nylon interior and non-reactive construction make it ideal for dispersing cosmetic and pigment-based compounds.
3: Is BZHNJ-507 resistant to impact during heavy operation?
Absolutely, the 16 mm thick nylon walls provide excellent durability and shock absorption under extended milling use.
4: How does the nylon material benefit the grinding process?
Nylon reduces operational noise, prevents contamination, and resists chemical degradation during milling of sensitive substances.
5: What are the best use cases for BZHNJ-507?
BZHNJ-507 is ideal for pigment dispersion, polymer blending, cosmetic slurry mixing, and organic material processing.
6: What materials are best suited for nylon ball mill jars?
Nylon jars are best for grinding soft to medium-hard materials that must avoid metal contamination. They are commonly used with ceramics, polymers, biological samples, and certain organics.
7: Can this jar be used for wet grinding?
Yes, nylon jars support both wet and dry milling. However, they should be sealed properly, and solvents must be compatible with polyamide material to avoid degradation.
8: Does the jar react with acids or bases?
Nylon is resistant to many chemicals but can be affected by strong acids and alkalis. Check compatibility with your sample's chemical nature before use.
9: How do I maintain the jar after use?
Clean with mild detergents or solvents that do not react with nylon. Avoid abrasive cleaning tools that may scratch the interior and reduce jar longevity.
10: Is nylon strong enough for high-speed planetary mills?
Yes, nylon offers excellent impact resistance and tensile strength, making it suitable for medium-speed planetary or roller mills. Avoid overloading or aggressive conditions.
