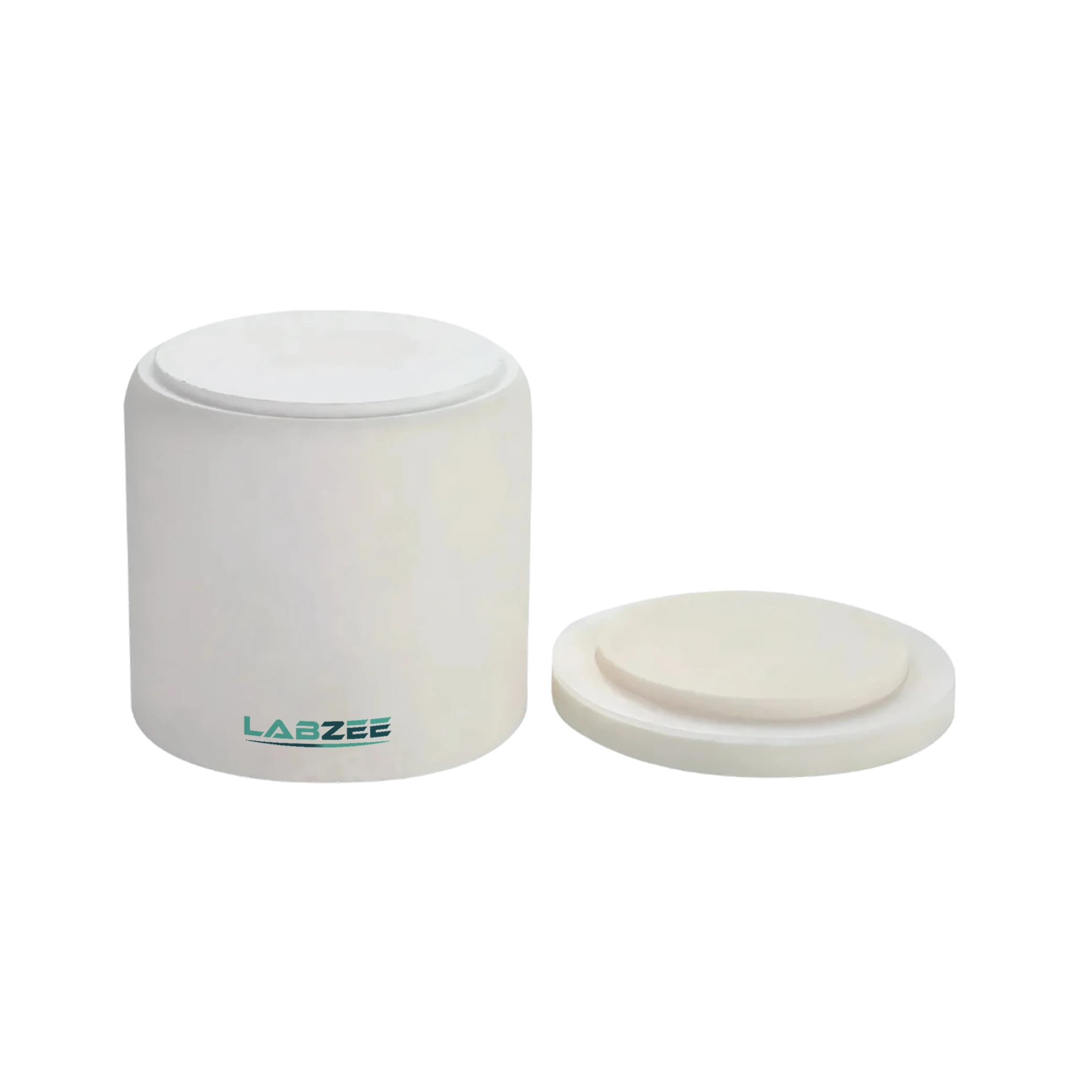

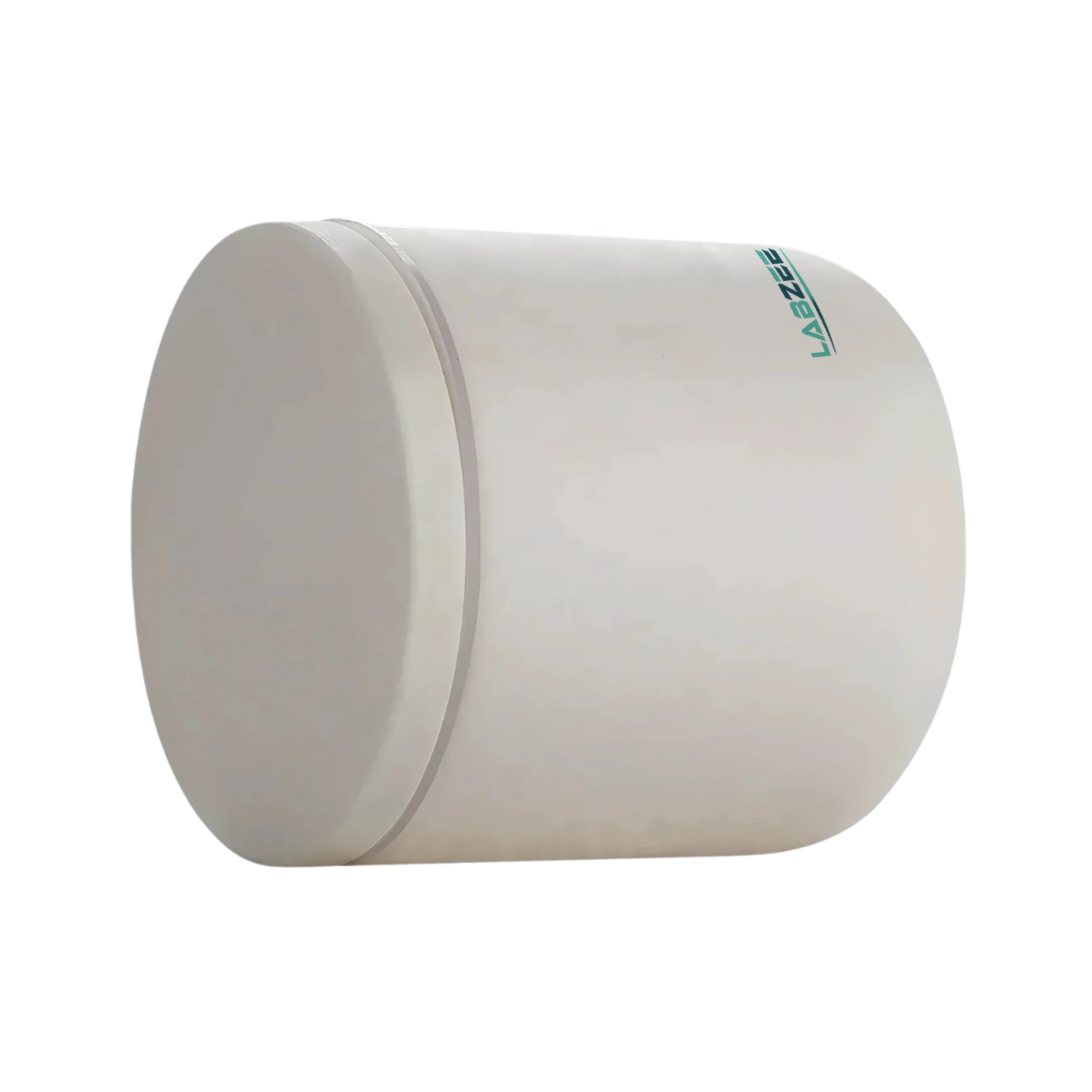

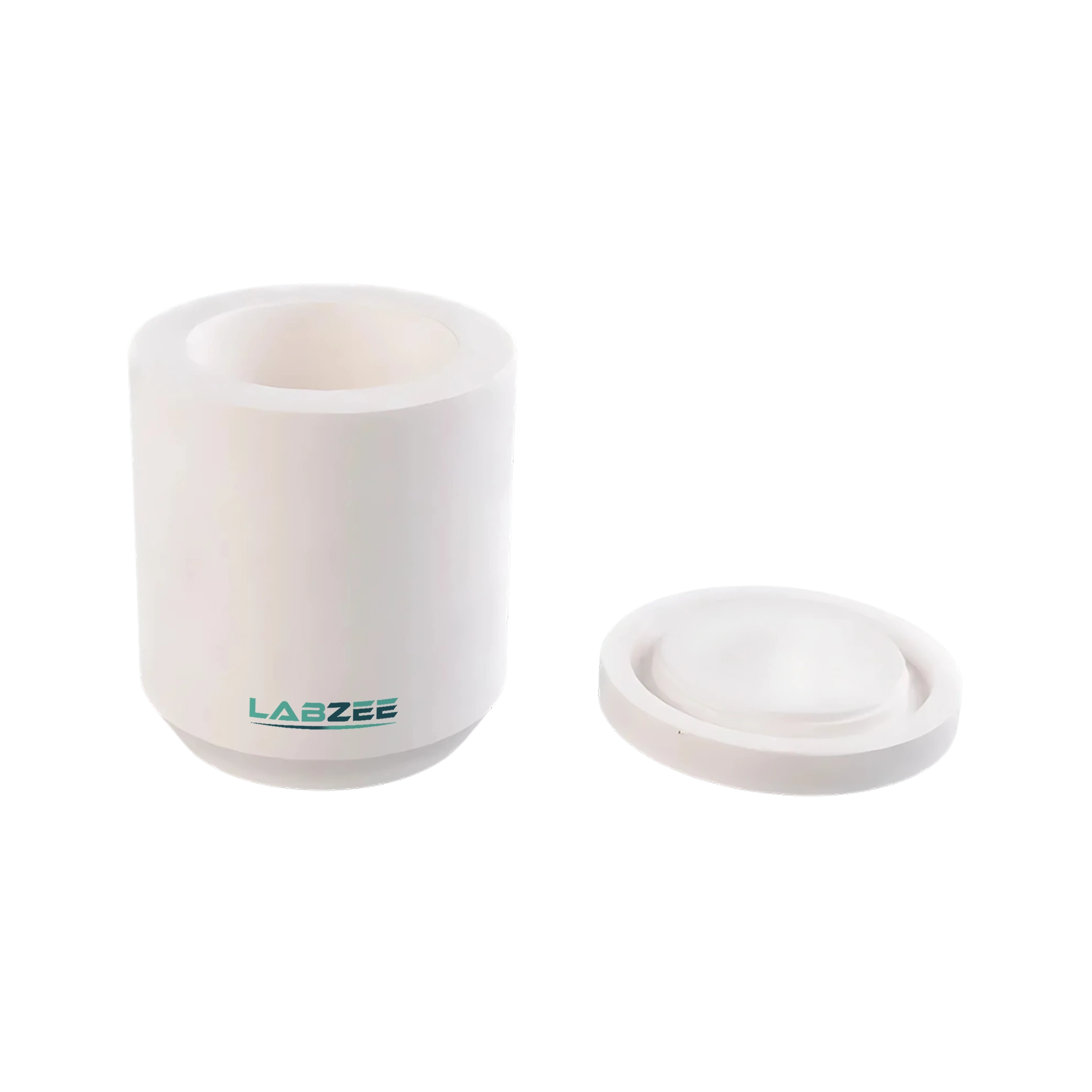

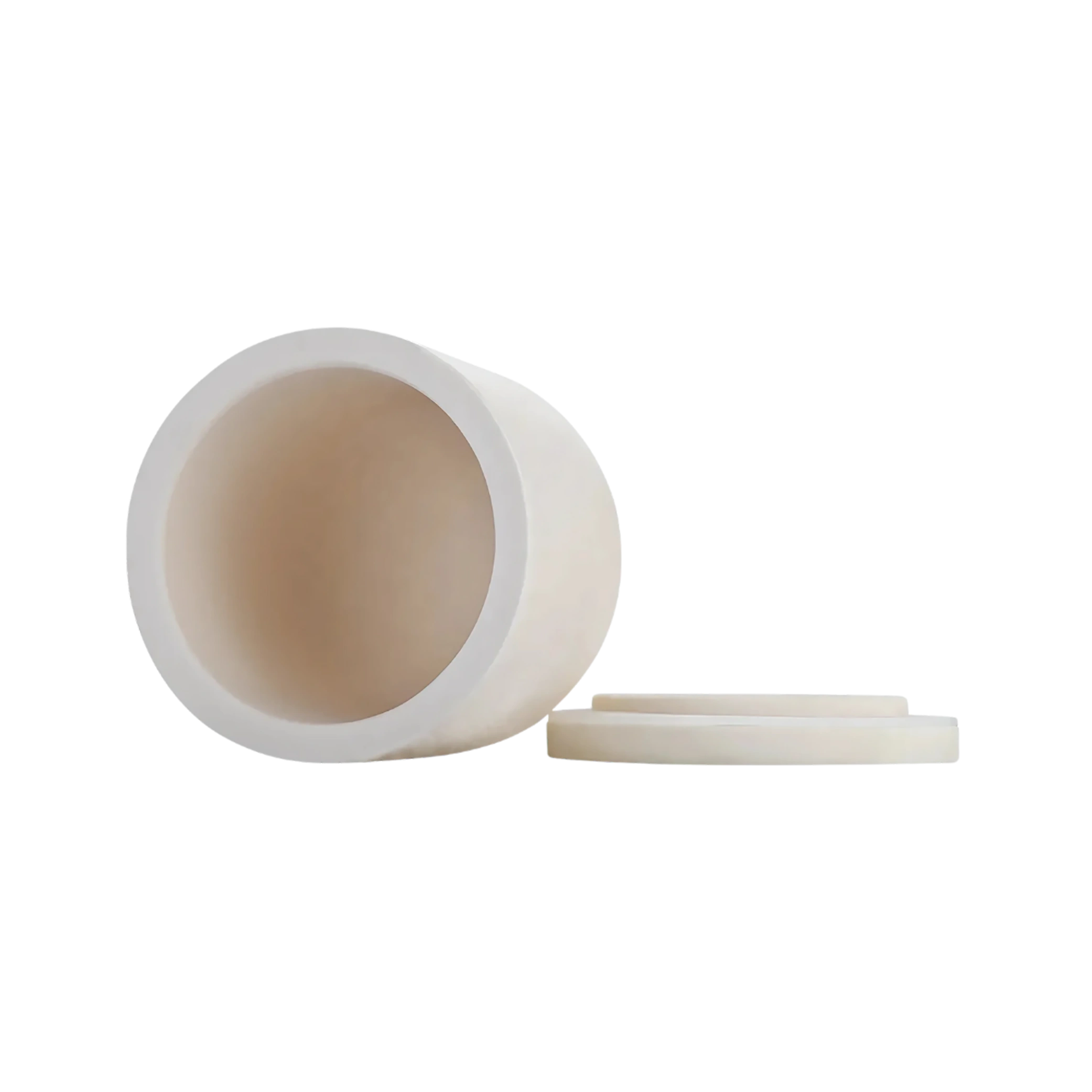

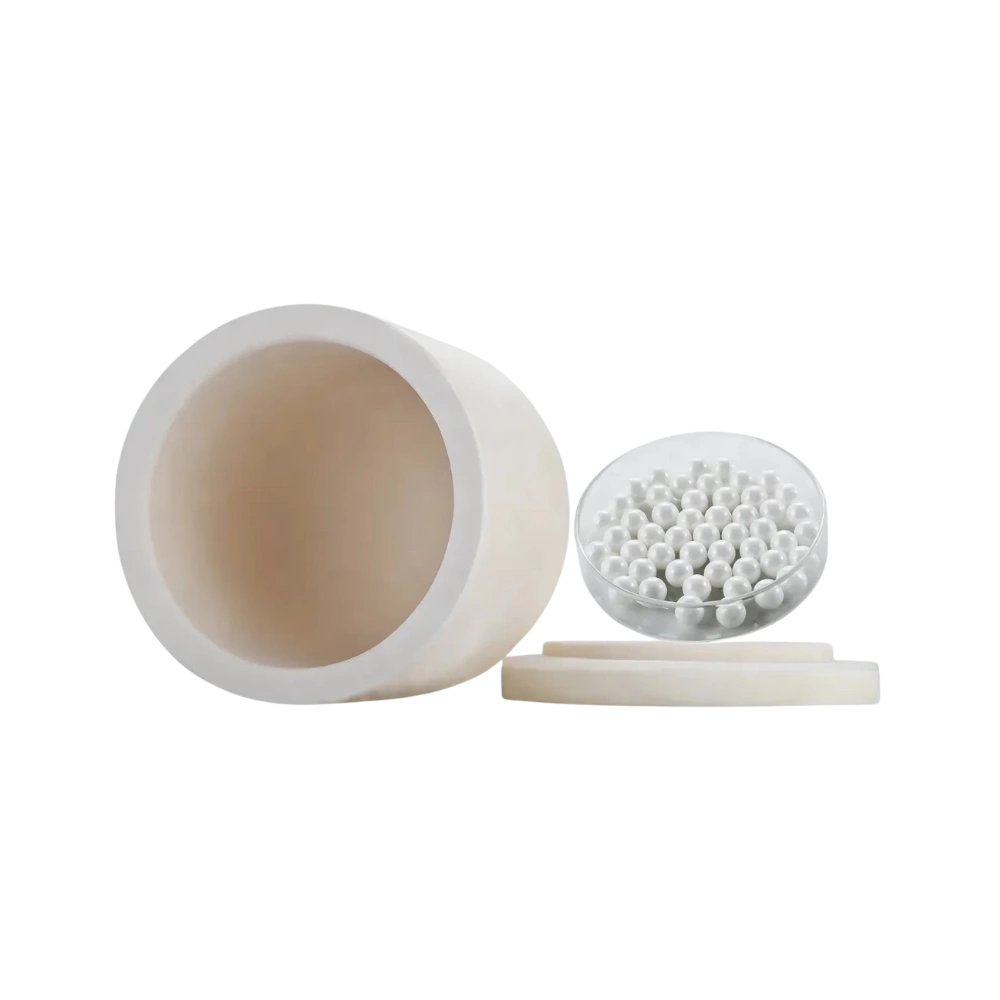

Alumina Oxide Ball Mill Jar BZAOJ-501 offers exceptional chemical resistance for fine grinding tasks. This ball mill jar comes with a 50 ml volume and a 56 mm height, making it suitable for precision batch grinding. It is designed with uniform wall thickness and high-density ceramic to ensure effective grinding and minimal contamination. Its structure withstands high mechanical stress while preserving sample purity throughout the process. Our Alumina Oxide Ball Mill Jar BZAOJ-501 is ideal for grinding corrosive powders, producing nanomaterials, and conducting ceramic compound tests.
| Volume | 50 ml |
| Height | 56 mm |
| Wall Thickness | 7 mm |
| Cover Thickness | 10 mm |
| Internal Diameter | 50 mm |
| External Diameter | 64 mm |
| Bottom Diameter | 57 mm |
| Grinding Jar Cover Weight | 135 g |
| Grinding Jar Wet Weight | 519 g |
Our Alumina Oxide Ball Mill Jar BZAOJ-501 is used in nano-powder synthesis, ceramic material milling, high-purity compound homogenization, and low-contamination grinding of rare earth oxides or catalyst materials.
Frequently Asked Questions
1: What makes BZAOJ-501 suitable for sensitive grinding?
The Alumina Oxide Ball Mill Jar BZAOJ-501 501 offers chemical inertness and high purity, making it ideal for grinding materials that require zero contamination, such as rare earth elements or pharmaceutical powders.
2: Is BZAOJ-501 compatible with standard ball mills?
The jar’s dimensions and balanced build make it suitable for most benchtop and industrial ball mills with clamp or sleeve mechanisms.
3: How does BZAOJ-501 maintain sample purity?
Its alumina ceramic body prevents metal ion leaching, and the smooth internal surface minimizes residue buildup, ensuring consistent purity for repeated experiments.
4: What applications benefit from BZAOJ-501?
BZAOJ-501 is excellent for catalyst formulation, electronic ceramic production, and fine grinding of pigments, especially in analytical and materials research labs.
5: Can you use BZAOJ-501 with aggressive media?
Yes, BZAOJ-501 resists acidic and basic reagents, allowing safe grinding of chemically reactive or corrosive compounds without degrading the jar surface.
6: What makes BZAOJ-501 suitable for sensitive grinding?
The Alumina Oxide Ball Mill Jar BZAOJ-501 501 offers chemical inertness and high purity, making it ideal for grinding materials that require zero contamination, such as rare earth elements or pharmaceutical powders.
7: When are Alumina Oxide Ball Mill Jars used in the lab?
Alumina Oxide Ball Mill Jars are used when contamination-free grinding is essential, especially for ceramics, electronics, and chemical research. Their non-metallic composition ensures sample purity during high-energy milling. They are ideal for grinding hard, brittle, and corrosive materials.
8: Can Alumina Oxide Ball Mill Jars be used for wet grinding?
Yes, Alumina Oxide Ball Mill Jars are suitable for both dry and wet grinding applications. Their tight-sealing lids prevent leaks during liquid milling. Always ensure the sealing ring is intact before starting a wet cycle.
9: Can different sizes of Alumina Oxide Ball Mill Jars be used on the same machine?
Yes, if the ball mill supports multi-jar configurations, various sizes of Alumina Oxide Ball Mill Jars can be mounted. Ensure that the weight and dimensions are balanced to avoid vibration. Always refer to the mill’s compatibility chart.
10: When should Alumina Oxide Ball Mill Jars be replaced?
Alumina Oxide Ball Mill Jars should be replaced when you notice cracking, internal chipping, or a drop in grinding performance. Regular visual inspection helps detect early signs of wear. Worn jars can contaminate sensitive samples.
11: Can Alumina Oxide Ball Mill Jars be cleaned easily?
Yes, Alumina Oxide Ball Mill Jars have a dense, non-porous interior that resists residue buildup. They can be cleaned using water, alcohol, or mild lab-grade solvents. Avoid using metallic brushes that may scratch the surface.
