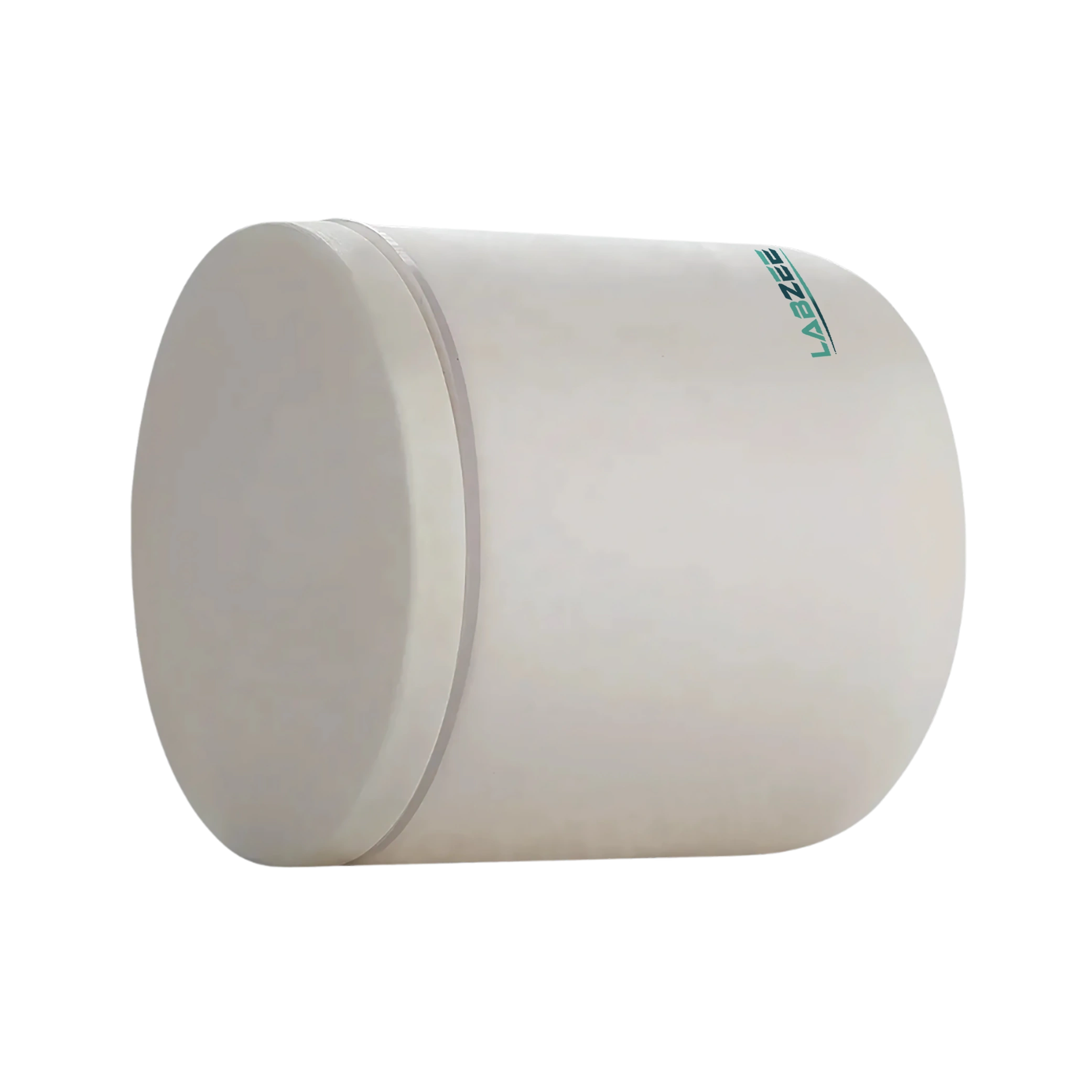

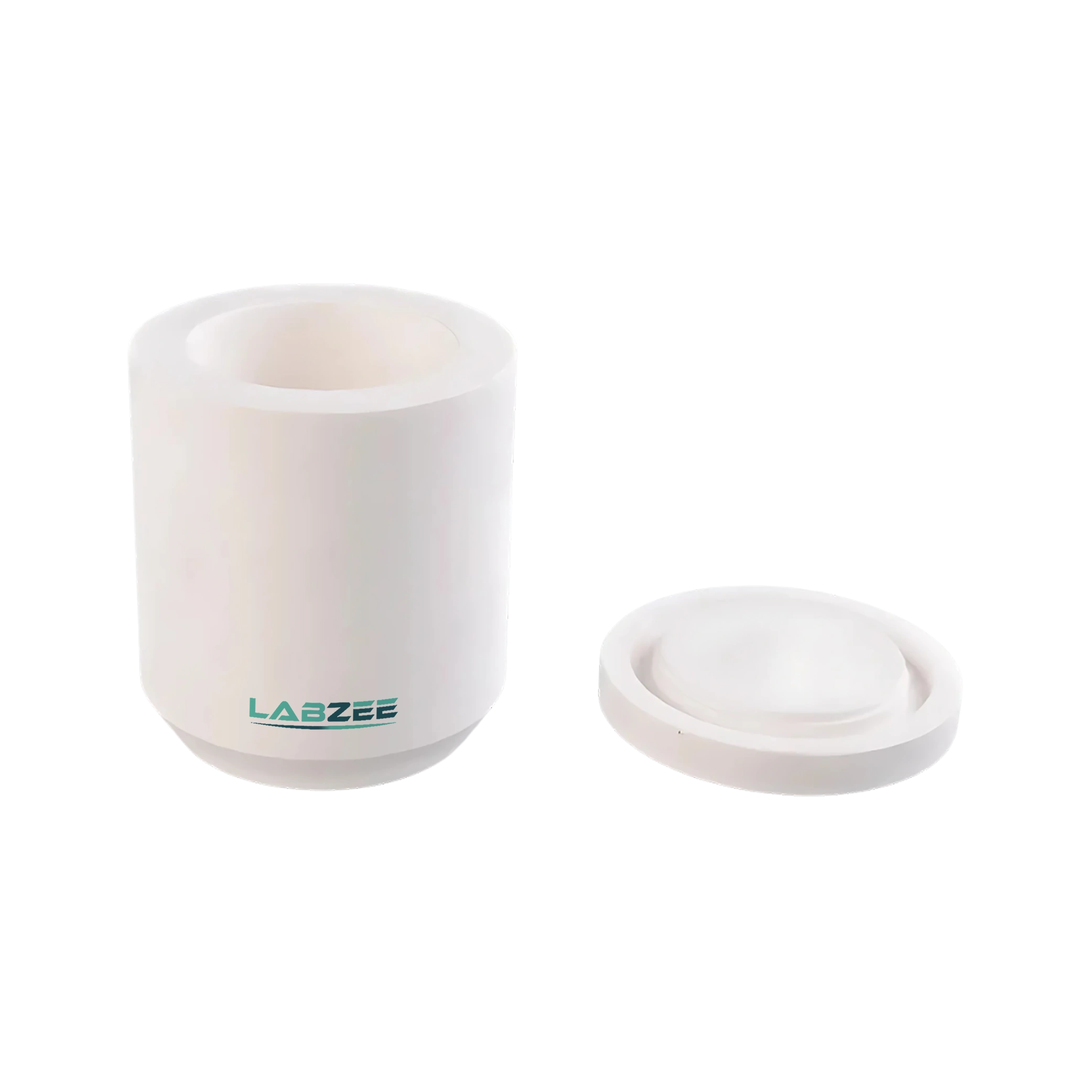

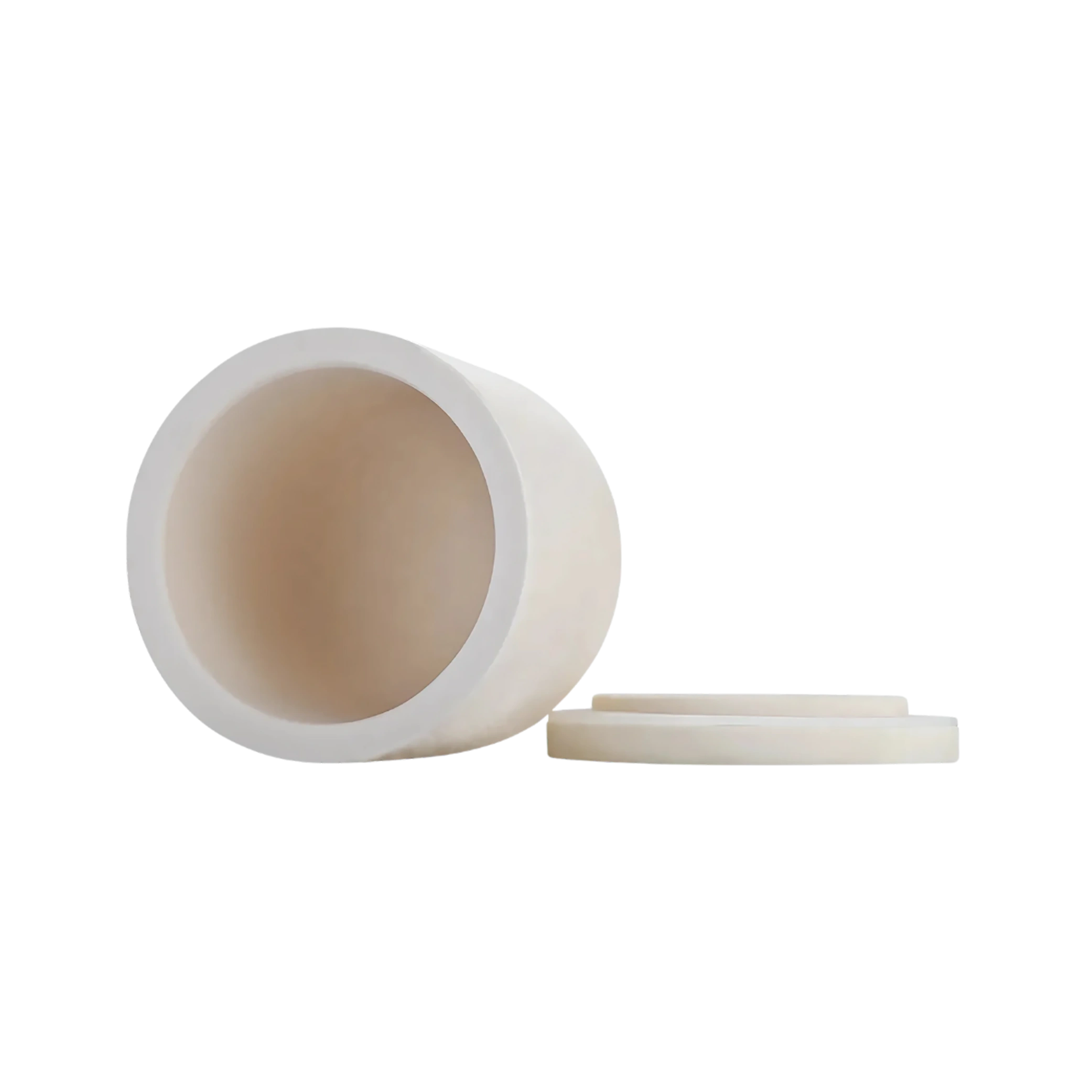

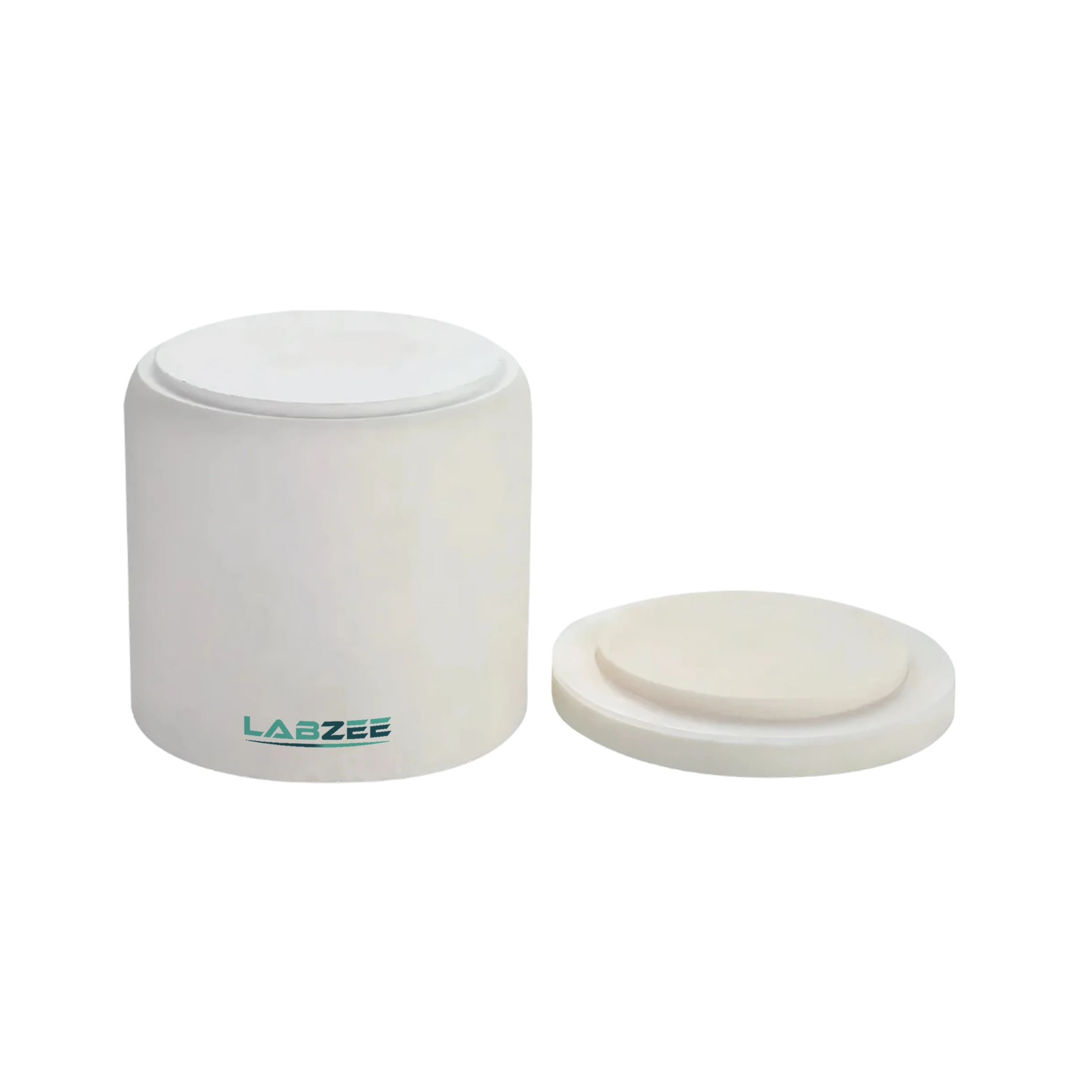

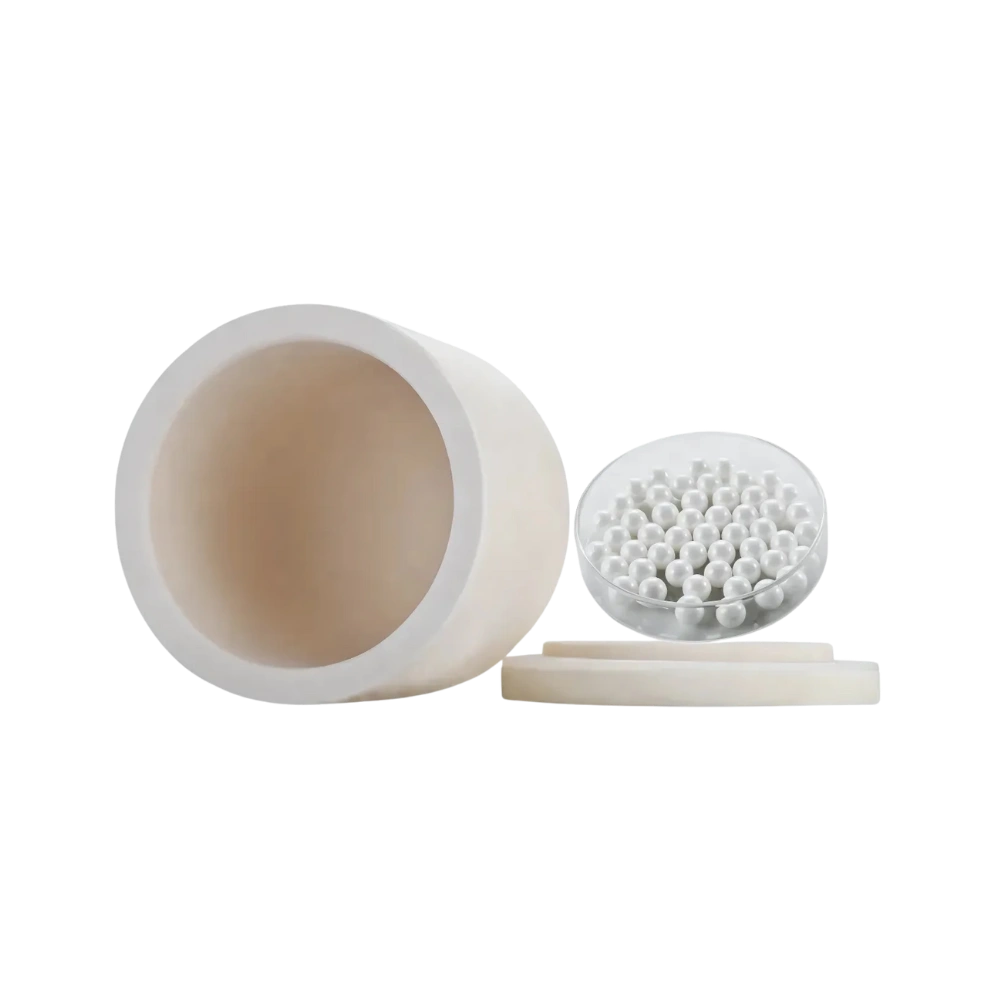

Alumina Oxide Ball Mill Jar BZAOJ-502 is crafted for precision and durability in grinding. This ball mill jar offers a 100 ml capacity and features a wall thickness of 9 mm for reliable mechanical performance. It is made from high-purity alumina oxide, providing superior wear resistance during grinding cycles. Its smooth inner surface reduces contamination risk, supporting efficient material processing. Our Alumina Oxide Ball Mill Jar BZAOJ-502 is widely used for grinding metal oxides, ceramics, rare earth powders, and hard minerals.
| Volume | 100 ml |
| Height | 68 mm |
| Wall Thickness | 9 mm |
| Cover Thickness | 10 mm |
| Internal Diameter | 56 mm |
| External Diameter | 74 mm |
| Bottom Diameter | 54 mm |
| Grinding Jar Cover Weight | 141 g |
| Grinding Jar Wet Weight | 530 g |
Our Alumina Oxide Ball Mill Jar BZAOJ-502 is ideal for use in grinding advanced ceramics, powder metallurgy samples, rare earth elements, and research-grade inorganic oxides in controlled milling environments.
Frequently Asked Questions
1: What materials can you grind with BZAOJ-502?
The BZAOJ-502 is designed to handle hard and abrasive materials like ceramics, metal oxides, and mineral samples, making it ideal for advanced material research.
2: How durable is the Alumina Oxide Ball Mill Jar BZAOJ-502?
Its 9 mm thick alumina walls and robust construction, this jar offers excellent resistance to cracking and mechanical stress during grinding.
3: Can you use BZAOJ-502 for high-purity grinding?
Yes, it is suitable for high purity grinding due to its chemically stable surface and minimal interaction with processed materials.
4: Is thermal shock a concern with BZAOJ-502?
The alumina construction provides excellent thermal stability, making it resistant to sudden temperature changes during operation.
5: What ensures low contamination in BZAOJ-502?
Its smooth interior surface and inert alumina composition significantly reduce the risk of material contamination during grinding.
6: When are Alumina Oxide Ball Mill Jars used in the lab?
Alumina Oxide Ball Mill Jars are used when contamination-free grinding is essential, especially for ceramics, electronics, and chemical research. Their non-metallic composition ensures sample purity during high-energy milling. They are ideal for grinding hard, brittle, and corrosive materials.
7: Can Alumina Oxide Ball Mill Jars be used for wet grinding?
Yes, Alumina Oxide Ball Mill Jars are suitable for both dry and wet grinding applications. Their tight-sealing lids prevent leaks during liquid milling. Always ensure the sealing ring is intact before starting a wet cycle.
8: Can different sizes of Alumina Oxide Ball Mill Jars be used on the same machine?
Yes, if the ball mill supports multi-jar configurations, various sizes of Alumina Oxide Ball Mill Jars can be mounted. Ensure that the weight and dimensions are balanced to avoid vibration. Always refer to the mill’s compatibility chart.
9: When should Alumina Oxide Ball Mill Jars be replaced?
Alumina Oxide Ball Mill Jars should be replaced when you notice cracking, internal chipping, or a drop in grinding performance. Regular visual inspection helps detect early signs of wear. Worn jars can contaminate sensitive samples.
10: Can Alumina Oxide Ball Mill Jars be cleaned easily?
Yes, Alumina Oxide Ball Mill Jars have a dense, non-porous interior that resists residue buildup. They can be cleaned using water, alcohol, or mild lab-grade solvents. Avoid using metallic brushes that may scratch the surface.
