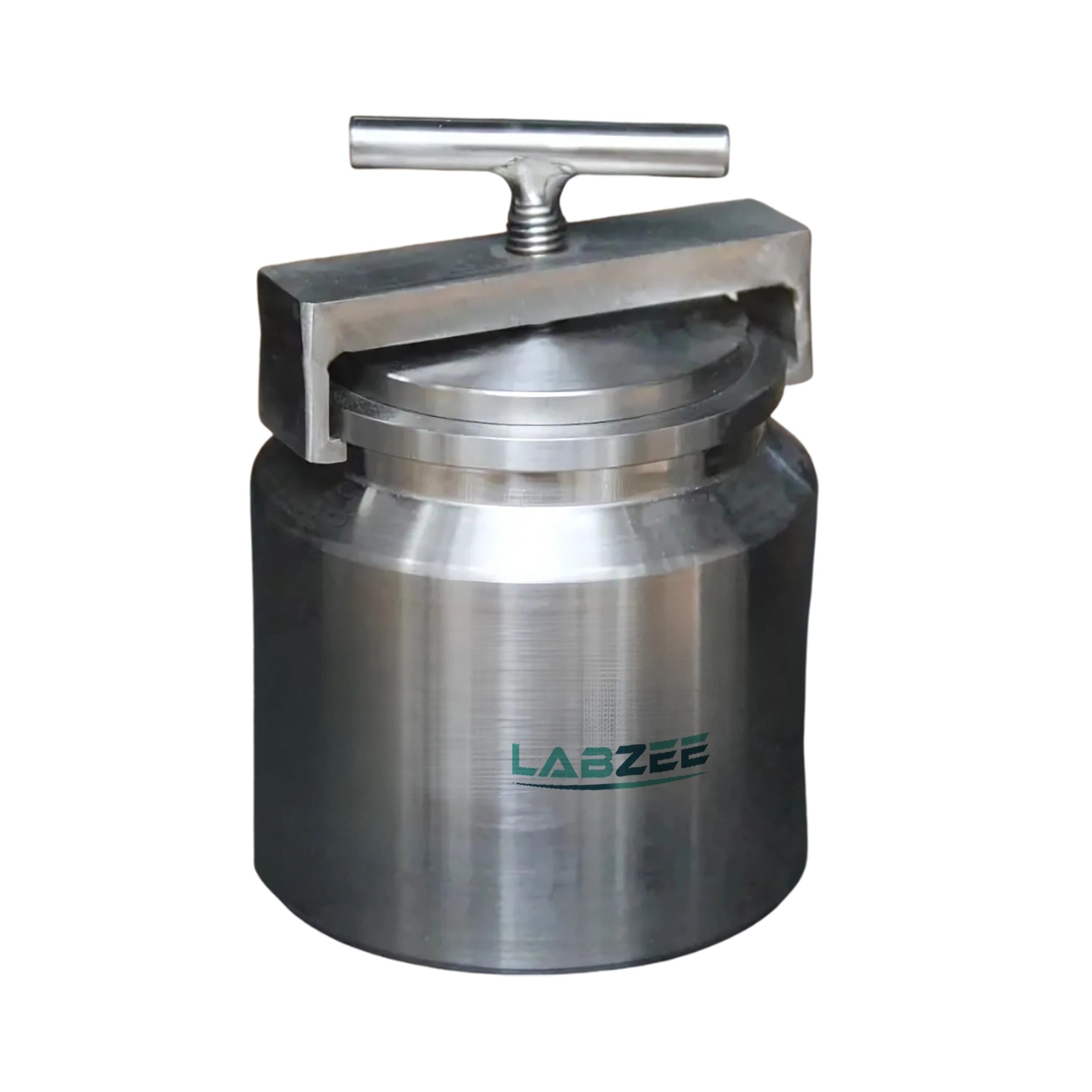

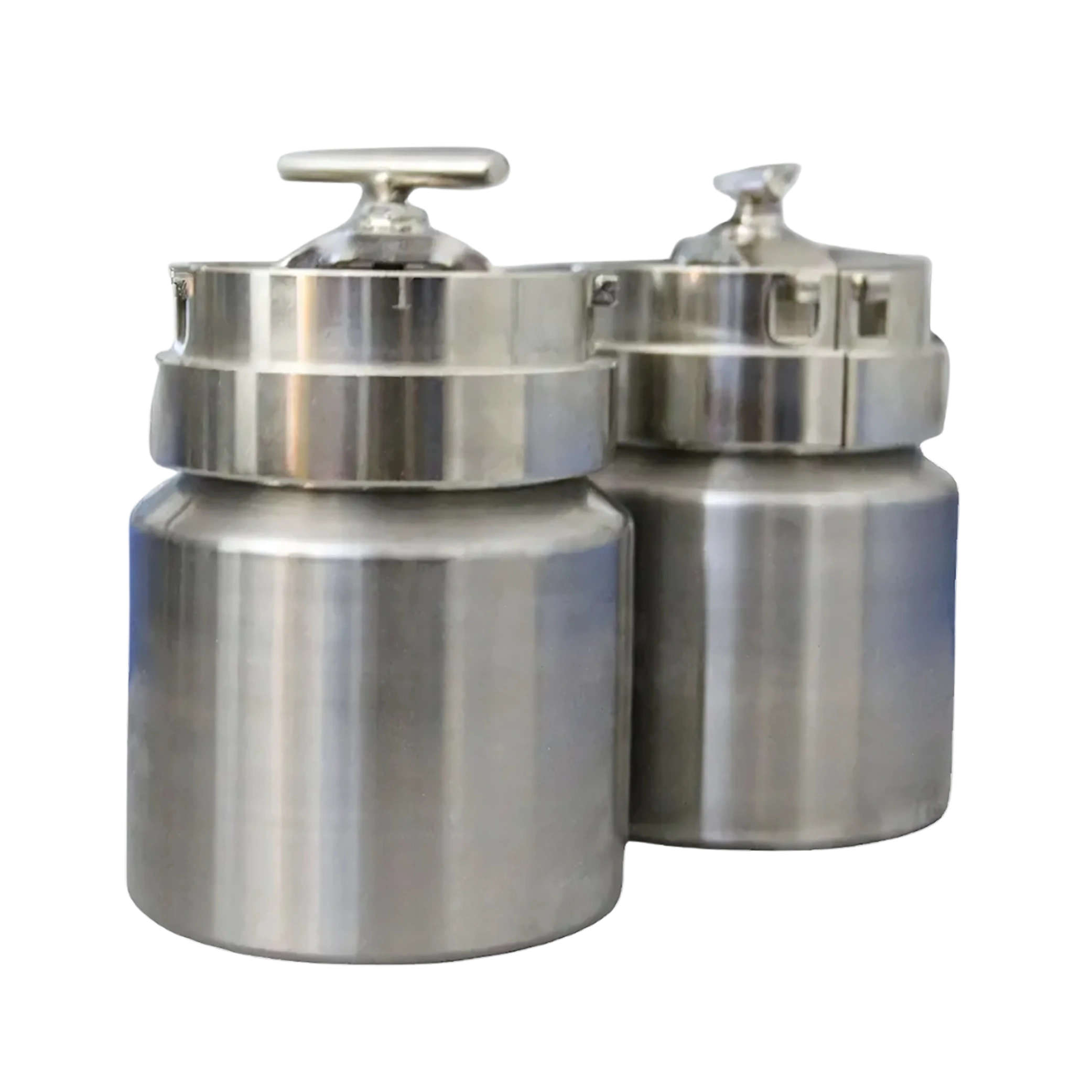

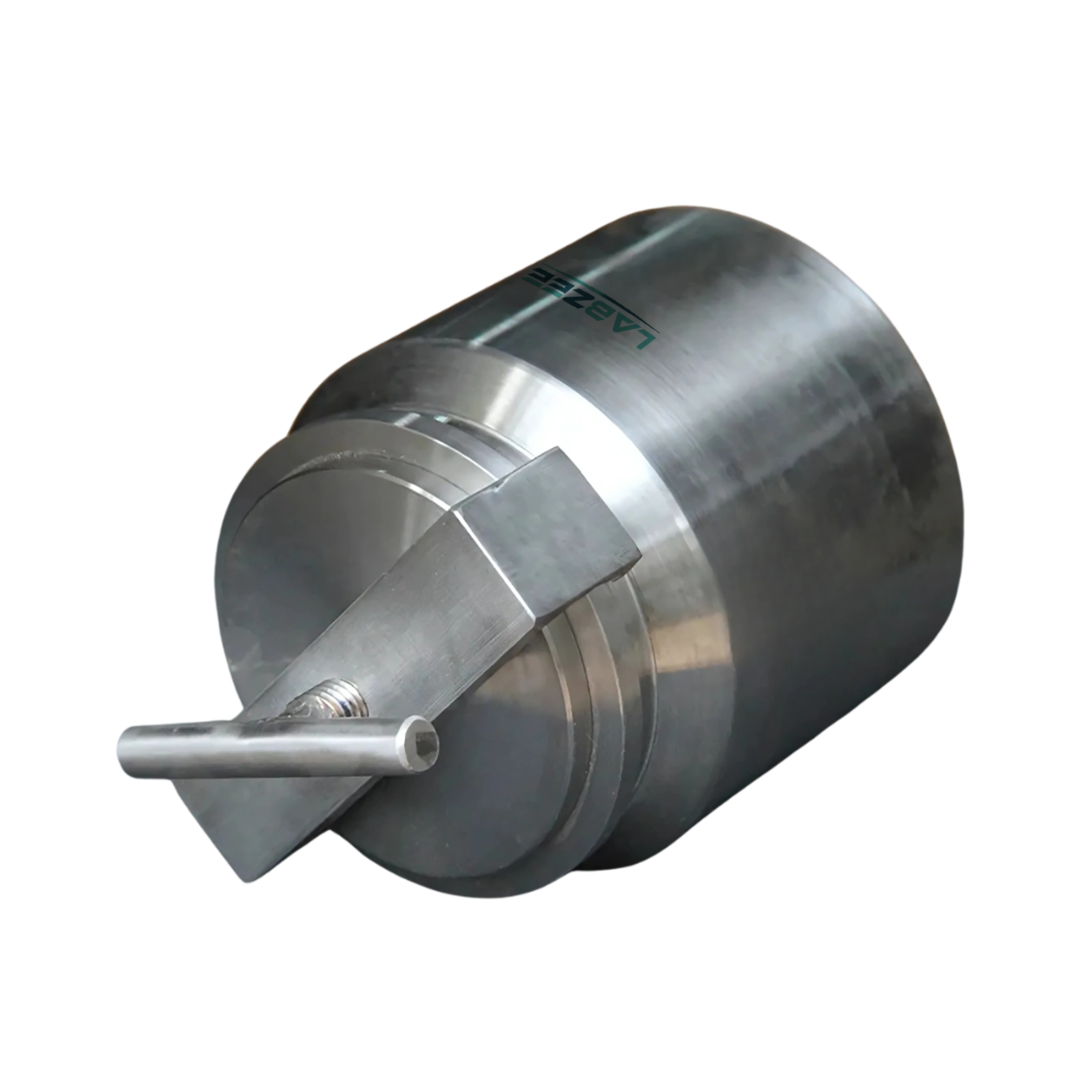

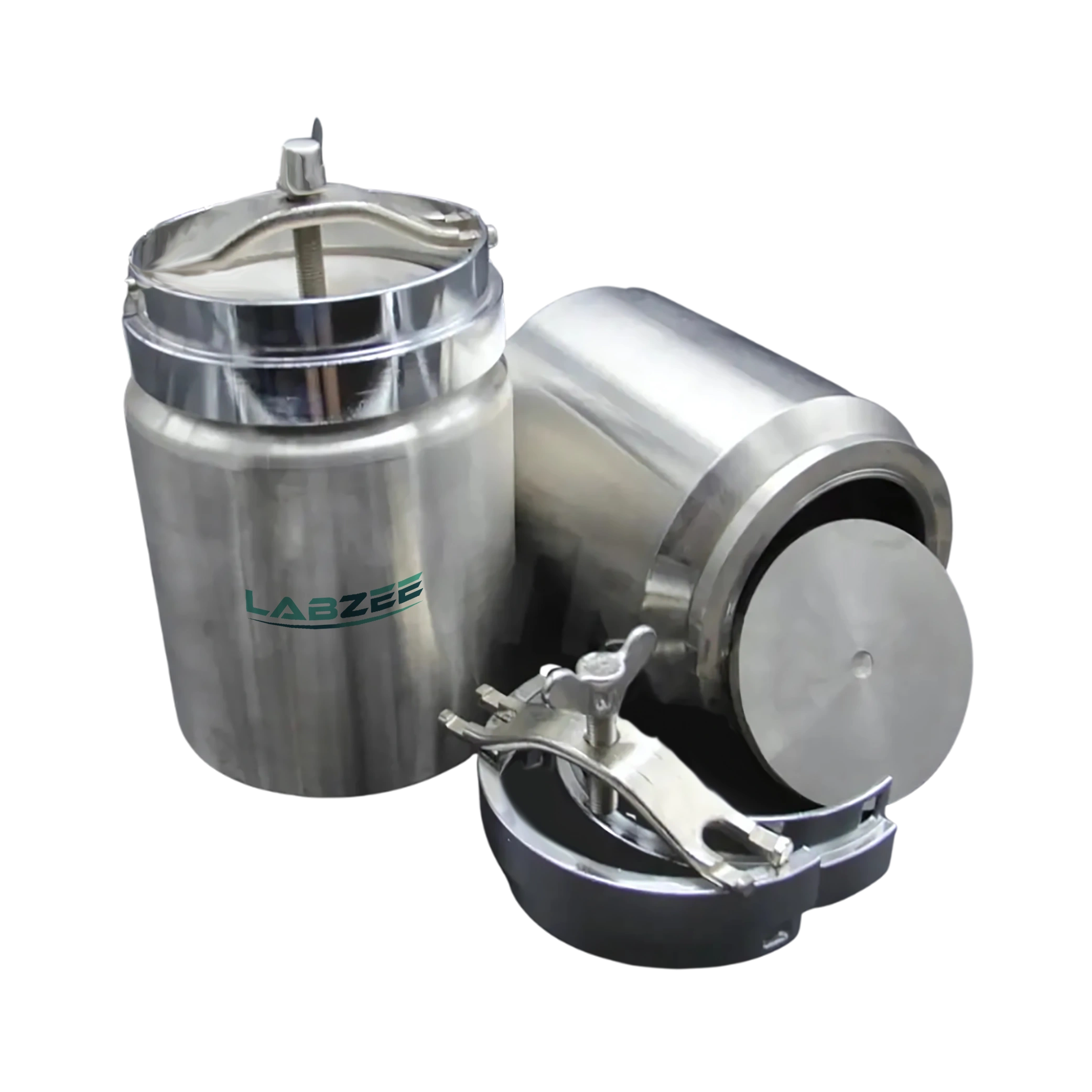

Horizontal Stainless-Steel Ball Mill Jar BZHSJ-504 is a high-strength, large-capacity milling jar built for demanding grinding operations involving tough, dense materials. This Ball Mill Jar features a wall thickness of 6.5 mm and a cover thickness of 13 mm, delivering excellent mechanical stability and consistent performance under high-energy conditions. It is fabricated from corrosion-resistant stainless steel, making it suitable for long-term use in abrasive environments. Its horizontal orientation ensures uniform grinding force distribution for enhanced particle refinement. Our Horizontal Stainless-Steel Ball Mill Jar BZHSJ-504 is ideal for processing hard metal powders, preparing ceramic dispersions, and blending mechanically activated compounds.
| Volume | 3 L |
| Height | 205 mm |
| Wall Thickness | 6.5 mm |
| Cover Thickness | 13 mm |
| Internal Diameter | 155 mm |
| External Diameter | 168 mm |
| Bottom Diameter | 149 mm |
| Cover Weight | 1.407 Kg |
| Grinding Jar Weight | 8.615 Kg |
Our Horizontal Stainless-Steel Ball Mill Jar BZHSJ-504 is best suited for alloy powder processing, advanced ceramic slurry mixing, dense mineral particle milling, and high-volume mechanical alloying in metallurgical and material science labs.
Frequently Asked Questions
1: What does the capacity of Horizontal Stainless-Steel Ball Mill Jar BZHSJ-504?
The BZHSJ-504 offers a 3 L capacity, ideal for handling high-volume grinding of heavy or abrasive materials in advanced milling applications.
2: Can you use BZHSJ-504 for ceramic and metal powder preparation?
Yes, its high-strength stainless-steel build makes it suitable for both ceramic dispersions and metal powder processing.
3: How does the horizontal layout benefit grinding in BZHSJ-504?
The horizontal design ensures consistent energy distribution across the media, promoting even grinding and faster material breakdown.
4: Is BZHSJ-504 capable of long-term operation?
Absolutely, its corrosion-resistant construction and reinforced wall design provide reliable performance in continuous or repeated milling cycles.
5: What industries commonly use BZHSJ-504?
BZHSJ-504 is widely used in metallurgy, ceramics, materials science, and powder processing industries for alloying, homogenizing, and mechanical activation.
6: When should a Horizontal Stainless-Steel Ball Mill Jar be used?
This jar is ideal when high mechanical strength and resistance to impact or corrosion are required. It's commonly used for alloying, powder mixing, and grinding hard materials.
7: Can it be used for both wet and dry grinding applications?
Yes, the stainless-steel jar supports both wet and dry milling processes. Its leak-proof design makes it suitable for solvent-based or aqueous grinding without risk of spillage.
8: Is the material of the jar safe for sensitive samples?
Stainless steel minimizes contamination and is safe for many samples, although it is not recommended for applications requiring non-metallic or ultra-pure environments.
9: What precautions are needed for long-term usage?
Avoid corrosive agents incompatible with steel, regularly inspect for dents or weld stress, and ensure the sealing mechanism is intact for safe milling.
10: How should the Horizontal Stainless-Steel Ball Mill Jar be cleaned?
It can be cleaned using standard lab detergents, ultrasonic baths, or solvents. Avoid abrasive pads that may damage the polished inner surface.
