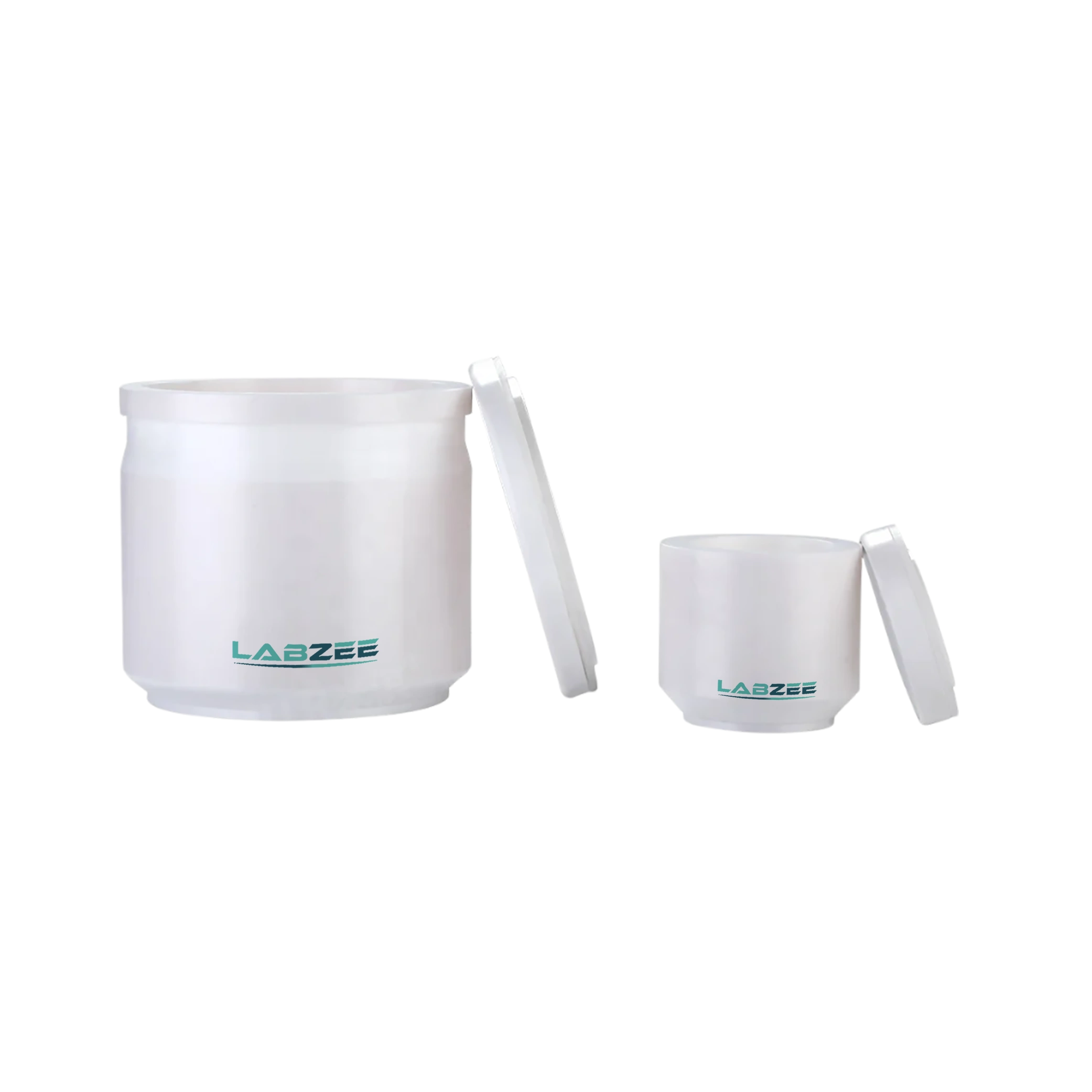

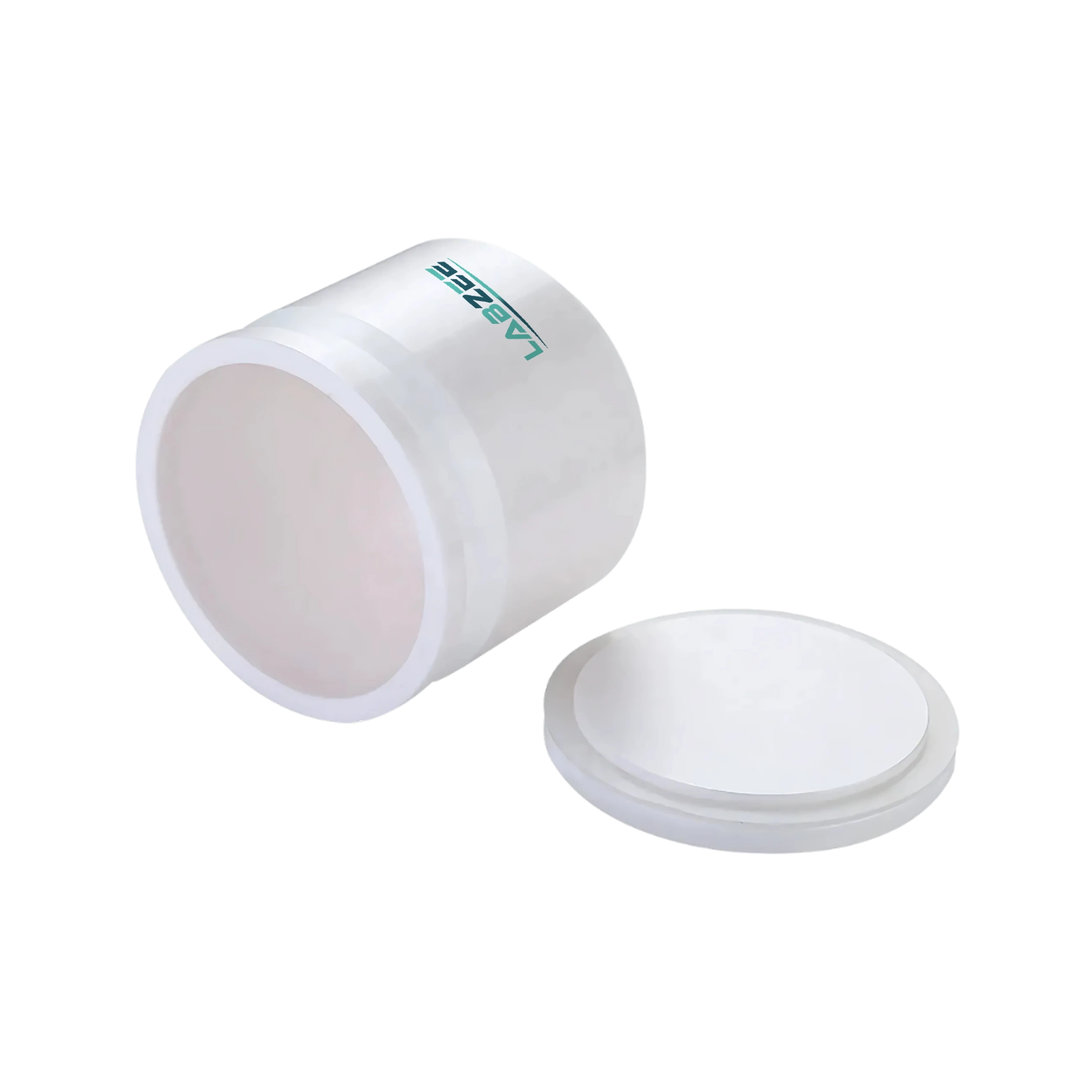

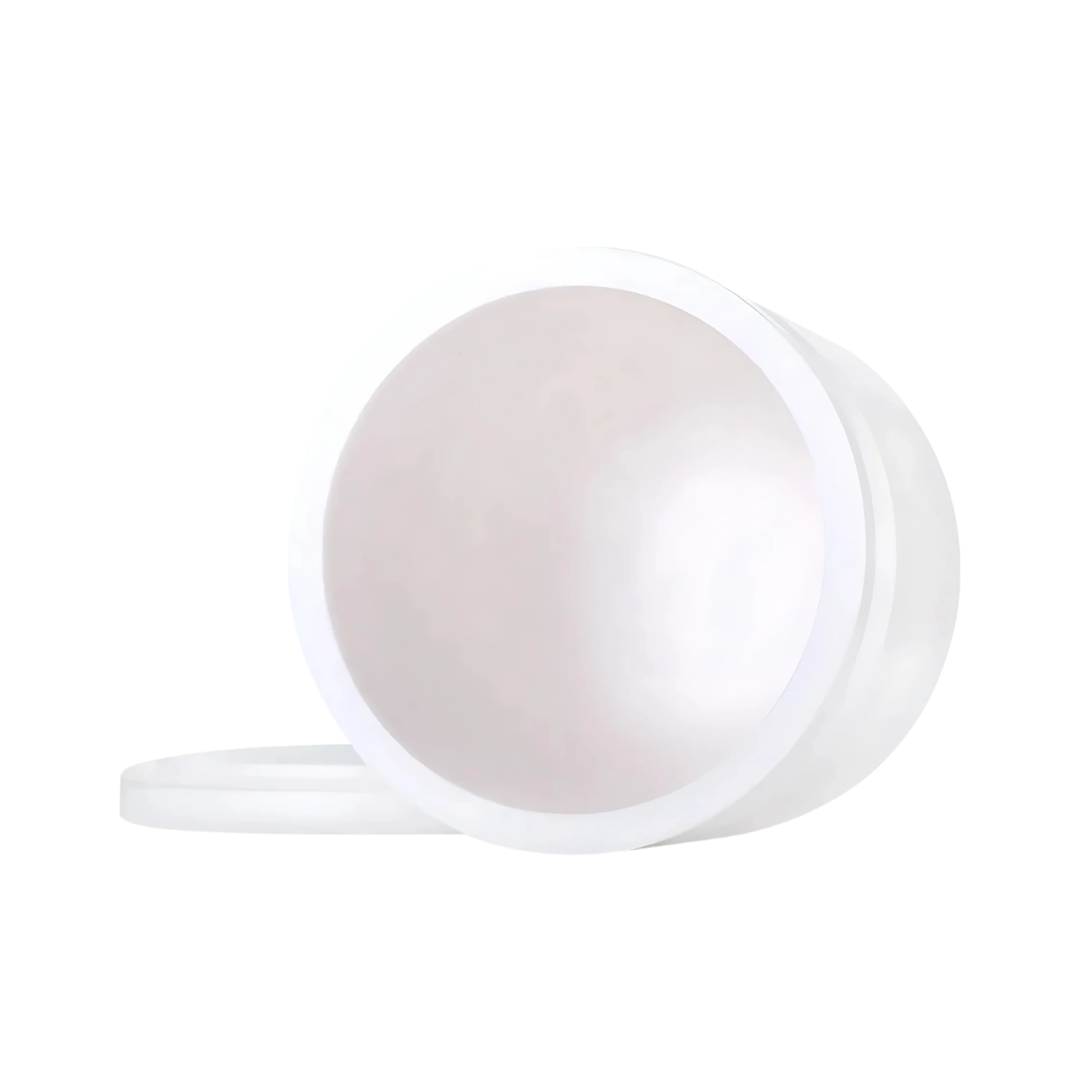

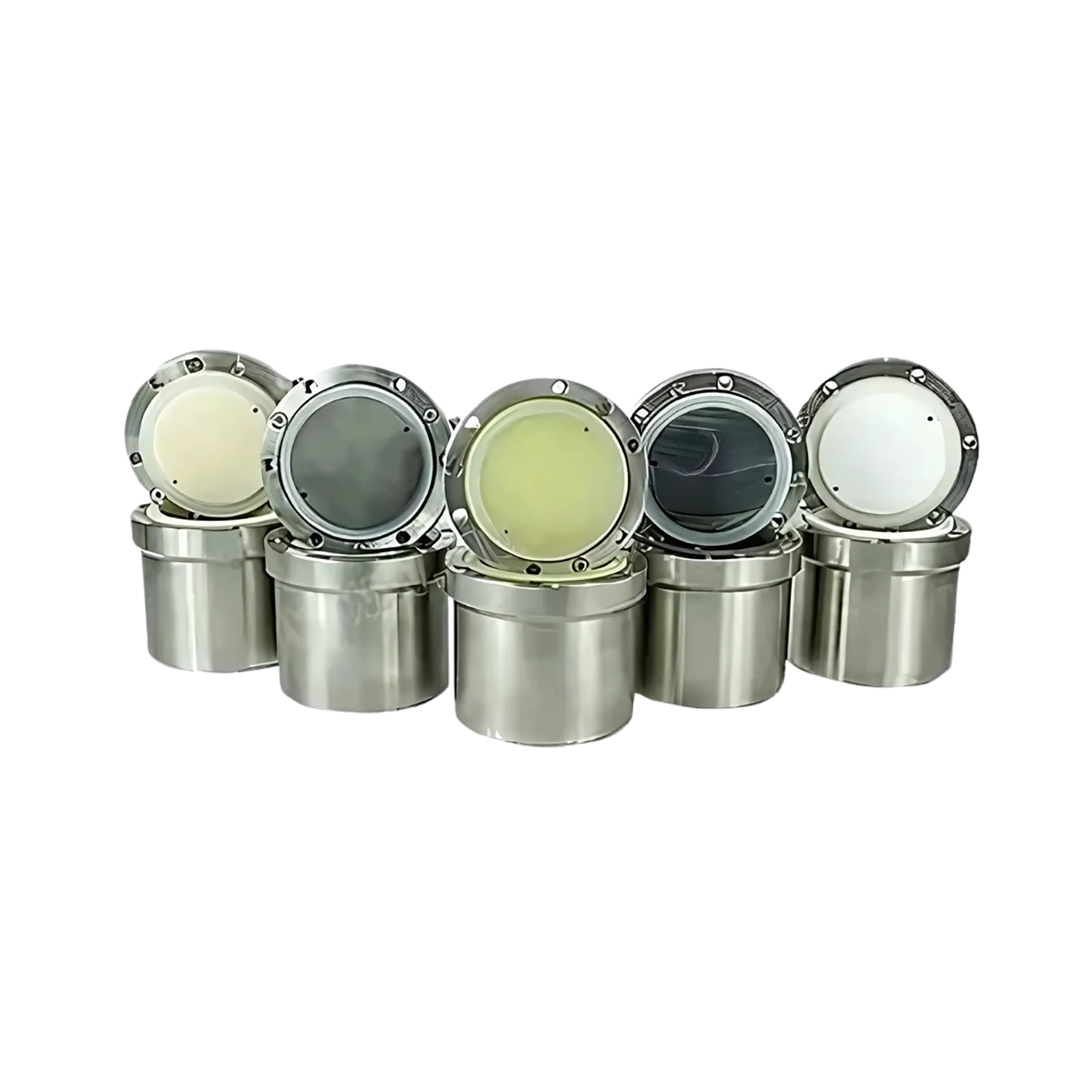

Lined Zirconia Vacuum Ball Mill Jar BZVZJ-504 is a medium-capacity grinding container designed for ultra-clean sample milling under vacuum conditions. This Ball Mill Jar comes with a thick 7 mm wall and a 13 mm cover, ensuring high mechanical stability and leak-free performance. It is engineered for processing abrasive or high-purity materials without contamination. Its zirconia lining offers excellent chemical resistance and withstands prolonged operational stress. Our Lined Zirconia Vacuum Ball Mill Jar BZVZJ-504 is best suited for applications in catalyst development, advanced ceramics, and material property testing.
| Volume | 250 ml |
| Height | 88 mm |
| Wall Thickness | 7 mm |
| Cover Thickness | 13 mm |
| Bottom Diameter | 83 mm |
| Internal Diameter | 69 mm |
| External Diameter | 83 mm |
| Cover Weight | 0.929 Kg |
| Grinding Jar Weight | 3.264 Kg |
Our Lined Zirconia Vacuum Ball Mill Jar BZVZJ-504 is used for catalyst sample preparation, ceramic compound grinding, battery powder homogenization, rare-earth oxide processing, and advanced abrasive formulation studies.
Frequently Asked Questions
1: What is the internal lining material of BZVZJ-504?
BZVZJ-504 is internally lined with high-density zirconia for excellent chemical resistance.
2: Can you mill abrasive compounds in BZVZJ-504?
Yes, BZVZJ-504 is ideal for grinding abrasive and hard compounds with minimal wear.
3: Is BZVZJ-504 resistant to chemical corrosion?
Absolutely, the zirconia lining offers excellent corrosion resistance for reactive materials.
4: How secure is the vacuum seal in BZVZJ-504?
BZVZJ-504 ensures a robust seal suitable for vacuum-based milling processes.
5: Can you use BZVZJ-504 for battery powder processing?
Yes, BZVZJ-504 is widely used for preparing battery powders and rare-earth oxide materials.
6: Why choose a zirconia-lined vacuum jar?
Zirconia is highly wear-resistant and chemically inert, making it ideal for contamination-sensitive grinding of hard, brittle, or high-purity samples under vacuum conditions.
7: Is this jar compatible with wet and dry milling?
Yes, the zirconia lining resists water, solvents, and abrasion, enabling both wet and dry milling while maintaining material integrity and preventing leaching.

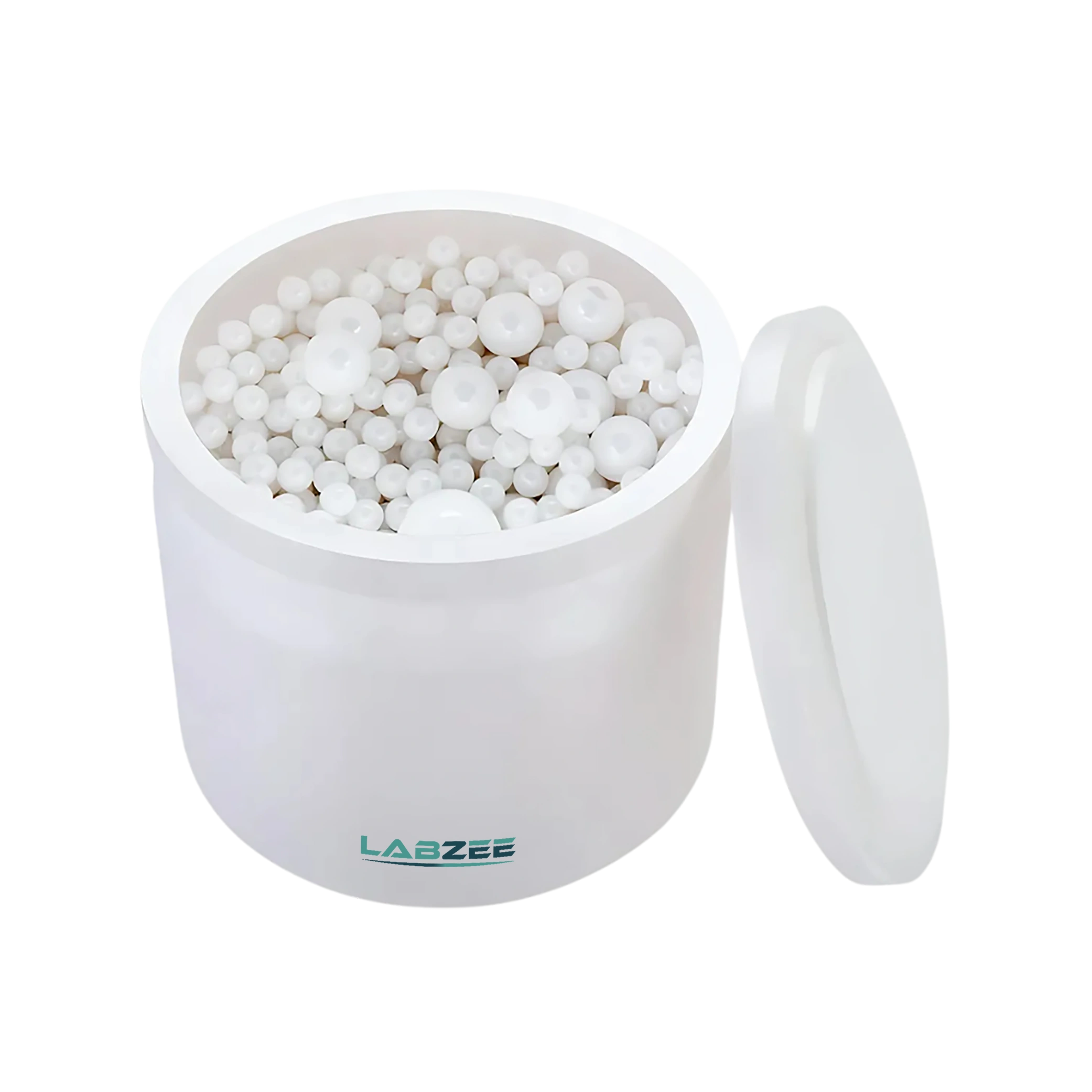

8: What media are suitable for this jar?
Zirconia or other ceramic-based grinding media are best. Using compatible hardness media preserves the lining and reduces contamination.
9: Can it be used in high-speed planetary ball mills?
Absolutely. The steel shell provides mechanical strength, and the jar’s balanced geometry ensures safe, efficient operation even under high rotational speeds.
10: How should the jar be maintained?
Rinse with neutral solvents or use ultrasonic cleaning. Avoid sudden temperature changes and mechanical shock, as the zirconia lining, while tough, can be sensitive to thermal or impact stress.
