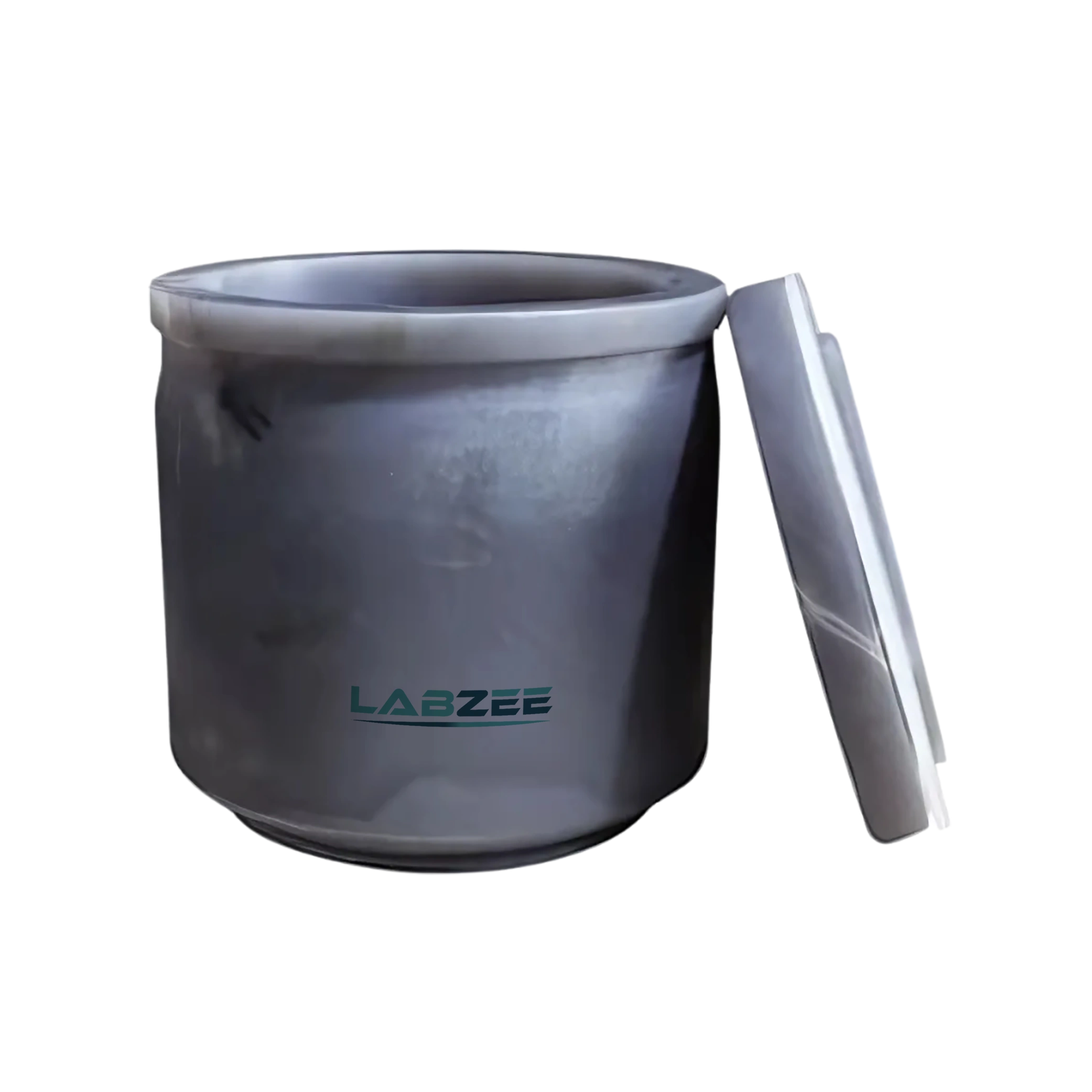

Agate Ball Mill Jar BZABJ-506 is built for precise, contamination-free milling of specialized materials. This ball mill jar features a 2L volume and a flat gasket sealing ring to ensure airtight performance during use. It provides strong wear resistance and is highly effective for grinding reactive or high-purity substances. Its design allows uniform particle size reduction while minimizing sample loss. Our Agate Ball Mill Jar BZABJ-506 is best suited for critical applications like nano-compounding, elemental dispersions, and advanced ceramic research.
| Volume | 2L |
| Seal Ring Type | Flat Gasket |
| Height | 154 mm |
| Wall Thickness | 13 mm |
| Cover Thickness | 23 mm |
| Internal Diameter | 128 mm |
| External Diameter | 187 mm |
| Bottom Diameter | 119 mm |
| Grinding Jar Cover Weight | 0.955 Kg |
| Grinding Jar Wet Weight | 3.508 Kg |
Our Agate Ball Mill Jar BZABJ-506 is used for milling magnetic materials, electronic components, catalyst materials, advanced ceramic substrates, and high-purity oxides where chemical purity and wear resistance are essential.
Frequently Asked Questions
1: What are the main benefits of using Agate Ball Mill Jar BZABJ-506?
It offers superior hardness and excellent chemical resistance, making it ideal for contamination-free grinding of sensitive materials.
2: Can you use the BZABJ-506 jar for high-energy milling processes?
Yes, the jar's dense structure and flat gasket seal make it reliable for high-speed, high-impact grinding without deformation.
3: How durable is the flat gasket seal in BZABJ-506 under repeated usage?
The gasket ensures a consistent and secure seal over repeated use, maintaining pressure and preventing leakage during milling.
4: Is BZABJ-506 suitable for use with abrasive materials?
Yes, it’s specifically designed to handle abrasive and corrosive samples without degrading the jar or compromising sample integrity.
5: What kind of maintenance does Agate Ball Mill Jar BZABJ-506 require?
Minimal maintenance is required; routine cleaning with water and soft brushes is usually sufficient to retain performance.
6: When is an Agate Ball Mill Jar most suitable?
An Agate Ball Mill Jar is ideal when ultra-purity is required and contamination must be strictly avoided. It’s widely used in trace element analysis, geology, and nanotechnology. Its inert nature prevents sample alteration during grinding.
7: Can the Agate Ball Mill Jar be used for both dry and wet grinding?
Yes, the Agate Ball Mill Jar supports dry and wet grinding of small volumes. For wet grinding, ensure proper sealing to avoid spills. It’s recommended for fine grinding, not heavy mechanical impact.
8: Can it be used with hard or metallic samples?
No, the Agate Ball Mill Jar is best suited for soft to medium-hard materials. Avoid using it with metallic or very hard samples to prevent cracking. Always match the jar’s hardness to the sample type.
9: When should the Agate Ball Mill Jar be replaced?
Replace the Agate Ball Mill Jar if cracks, surface wear, or visible chips are found. Even small fractures can compromise sample safety. Inspect regularly to maintain purity and prevent breakage.
10: Can the Agate Ball Mill Jar be cleaned easily between batches?
Yes, the Agate Ball Mill Jar has a smooth, non-stick surface that makes cleaning simple. Use distilled water, alcohol, or mild solvents depending on the material milled. Avoid extreme temperature changes that may cause stress fractures.
