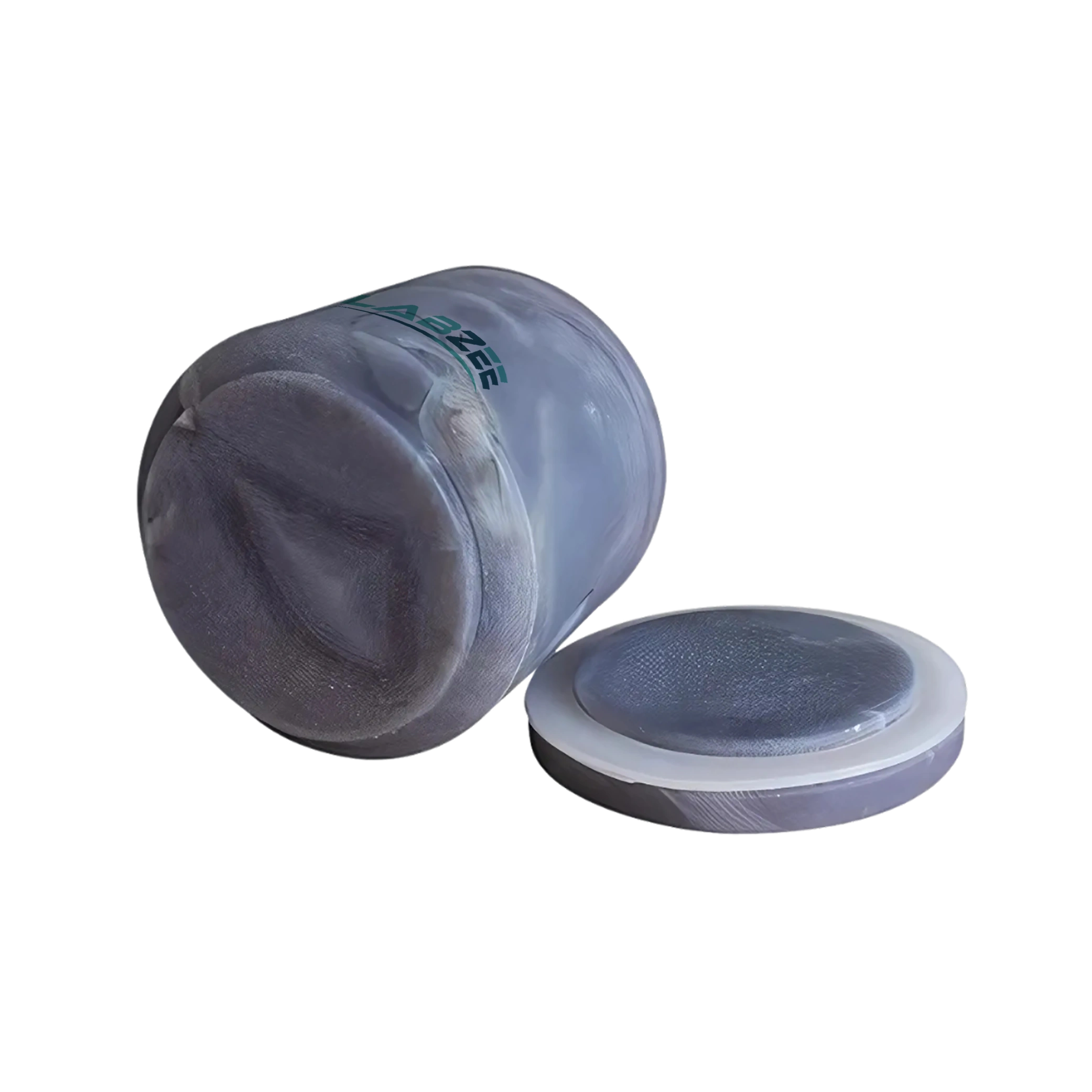

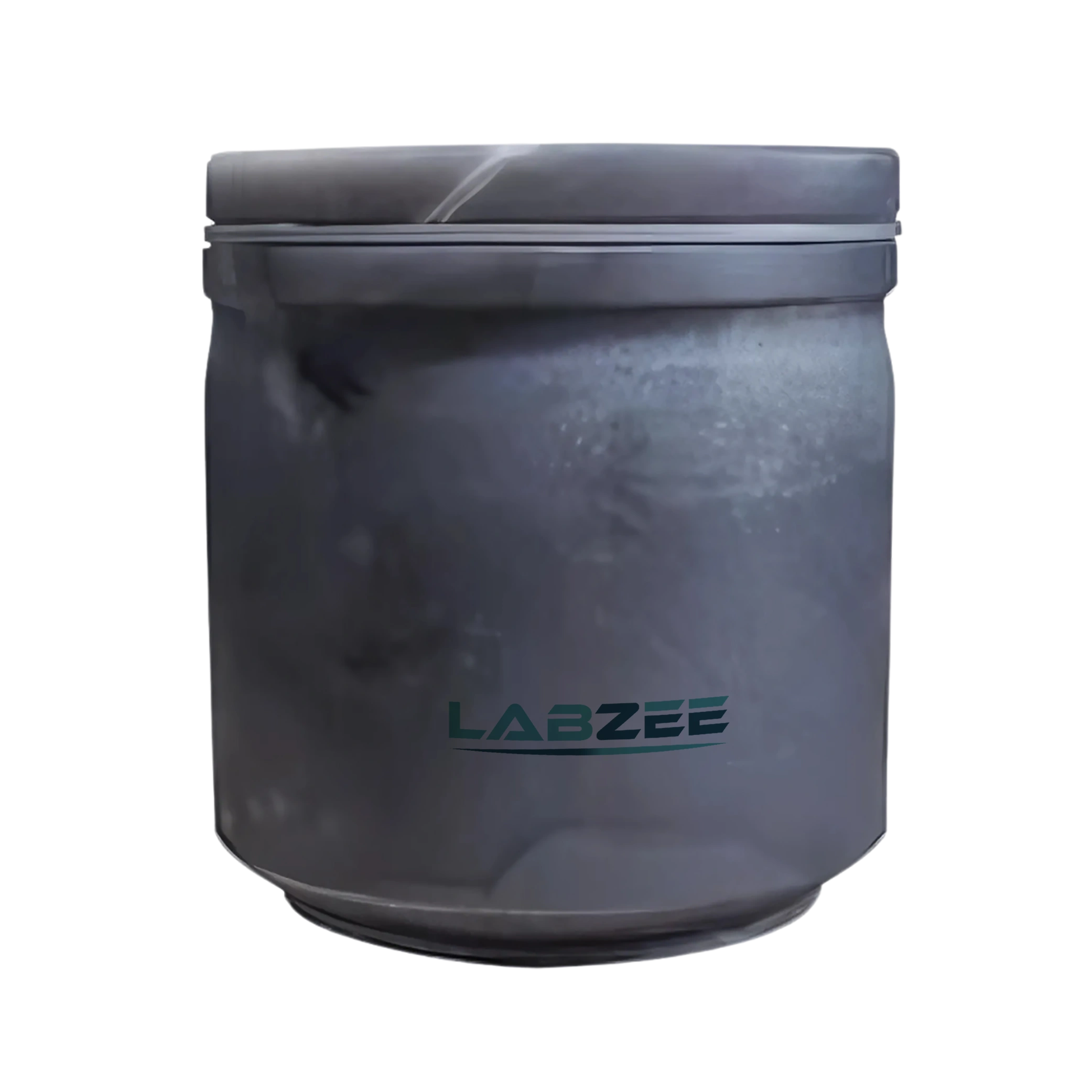

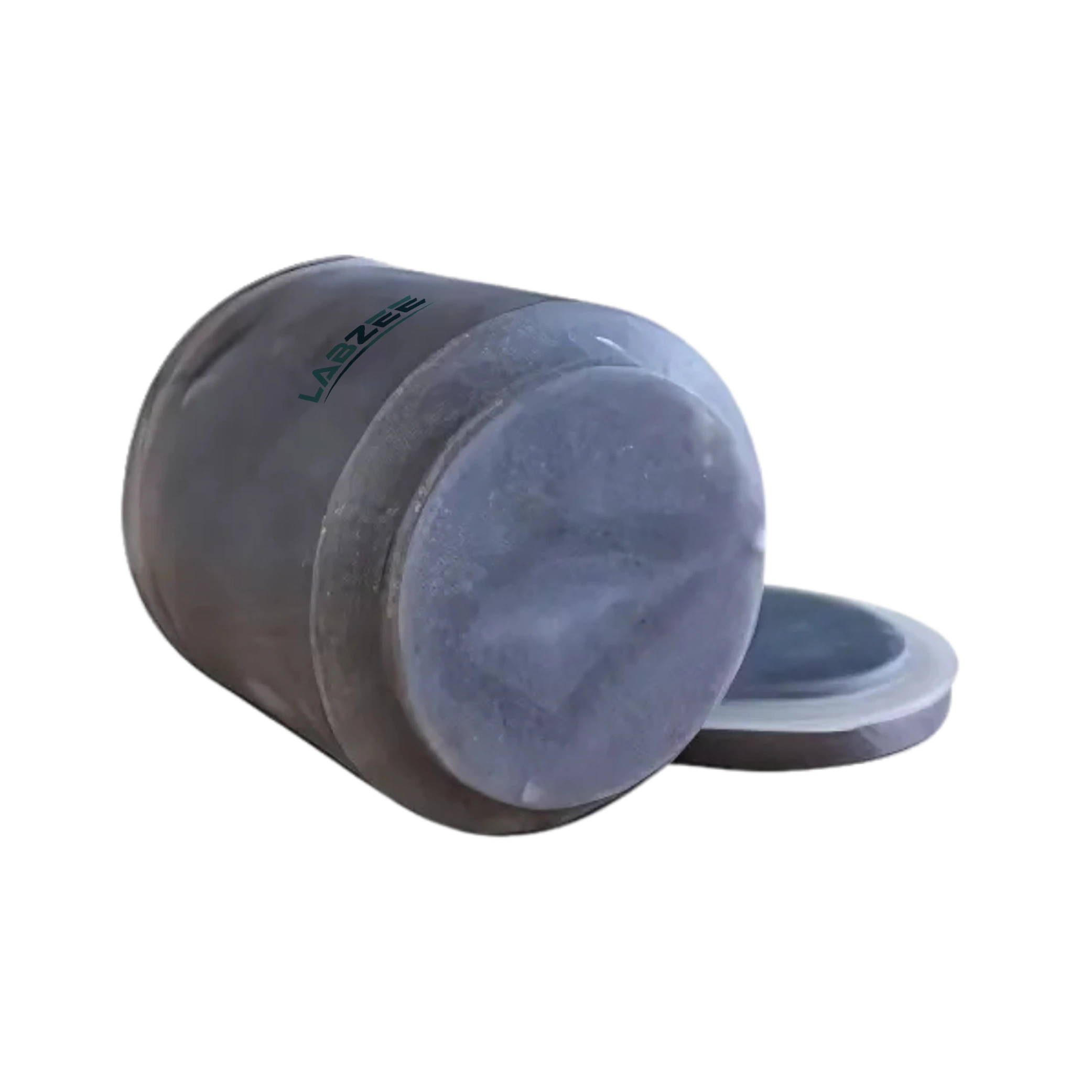

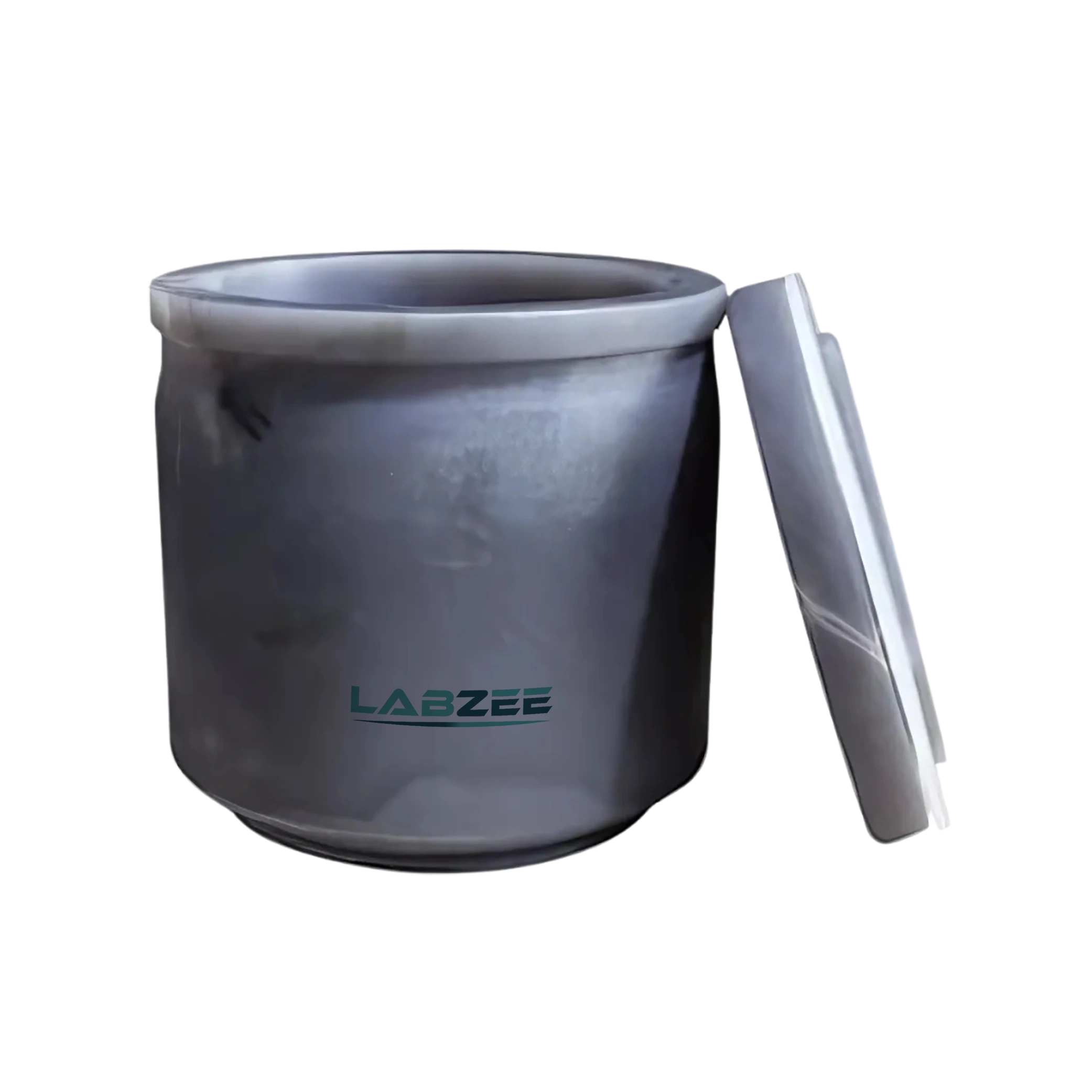

Agate Ball Mill Jar BZABJ-507 is engineered for clean grinding of sensitive and high-purity materials. This ball mill jar has a 3L capacity and features a flat gasket seal for reliable airtight performance. It delivers excellent chemical stability and mechanical strength even under continuous milling. Its robust design ensures efficient grinding with minimal contamination or wear. Our Agate Ball Mill Jar BZABJ-507 is best suited for applications involving rare earth compounds, sintered materials, and semiconductor substrates.
| Volume | 3L |
| Height | 217 mm |
| Wall Thickness | 13 mm |
| Cover Thickness | 23 mm |
| Internal Diameter | 140 mm |
| External Diameter | 163 mm |
| Bottom Diameter | 149 mm |
| Cover Weight | 1.117 Kg |
| Grinding Jar Weight | 5.485 Kg |
Our Agate Ball Mill Jar BZABJ-507 is used for processing semiconductor materials, sintered powders, rare earth alloys, oxide ceramics, and electronic component mixtures with a requirement for purity and abrasion resistance.
Frequently Asked Questions
1: What distinguishes the Agate Ball Mill Jar BZABJ-507 from other jars?
Its chemical stability and resistance to wear make it optimal for grinding without sample contamination, even during repeated cycles.
2: Can you use BZABJ-507 with hard-to-grind materials?
Yes, it is suitable for brittle, abrasive, and high-hardness materials that require consistent particle size reduction.
3: How does the flat gasket in BZABJ-507 enhance safety?
The flat gasket seal ensures airtightness during operation, reducing sample loss and preventing leaks even under high-speed grinding.

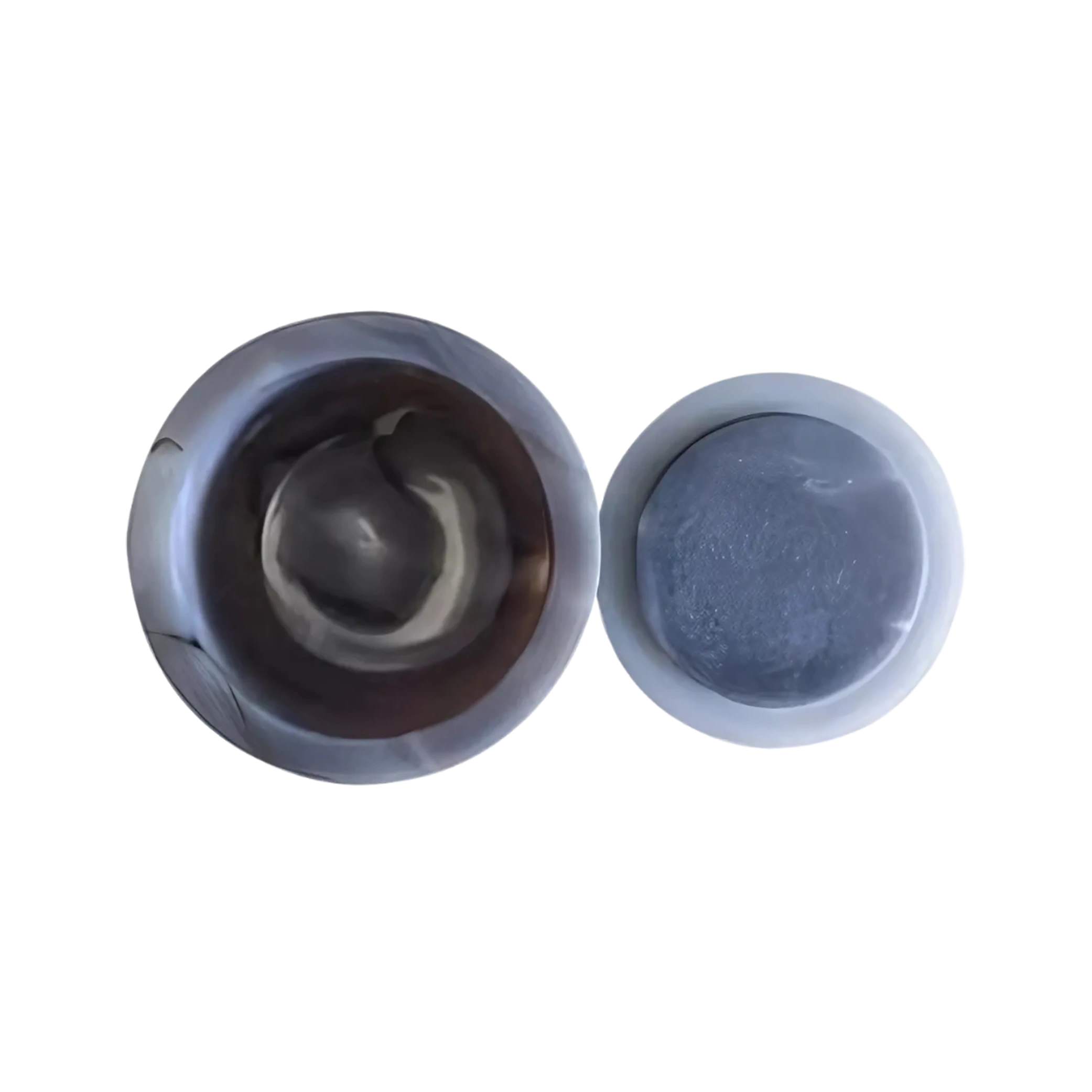

4: Is the internal finish of BZABJ-507 designed for easy cleaning?
Yes, the polished interior surface minimizes sample retention and allows quick cleaning between batches.
5: What makes BZABJ-507 appropriate for electronic material processing?
Its inert construction prevents reactions with compounds, preserving sample integrity during milling of sensitive electronic materials.
6: When is an Agate Ball Mill Jar most suitable?
An Agate Ball Mill Jar is ideal when ultra-purity is required and contamination must be strictly avoided. It’s widely used in trace element analysis, geology, and nanotechnology. Its inert nature prevents sample alteration during grinding.
7: Can the Agate Ball Mill Jar be used for both dry and wet grinding?
Yes, the Agate Ball Mill Jar supports dry and wet grinding of small volumes. For wet grinding, ensure proper sealing to avoid spills. It’s recommended for fine grinding, not heavy mechanical impact.
8: Can it be used with hard or metallic samples?
No, the Agate Ball Mill Jar is best suited for soft to medium-hard materials. Avoid using it with metallic or very hard samples to prevent cracking. Always match the jar’s hardness to the sample type.
9: When should the Agate Ball Mill Jar be replaced?
Replace the Agate Ball Mill Jar if cracks, surface wear, or visible chips are found. Even small fractures can compromise sample safety. Inspect regularly to maintain purity and prevent breakage.
10: Can the Agate Ball Mill Jar be cleaned easily between batches?
Yes, the Agate Ball Mill Jar has a smooth, non-stick surface that makes cleaning simple. Use distilled water, alcohol, or mild solvents depending on the material milled. Avoid extreme temperature changes that may cause stress fractures.
