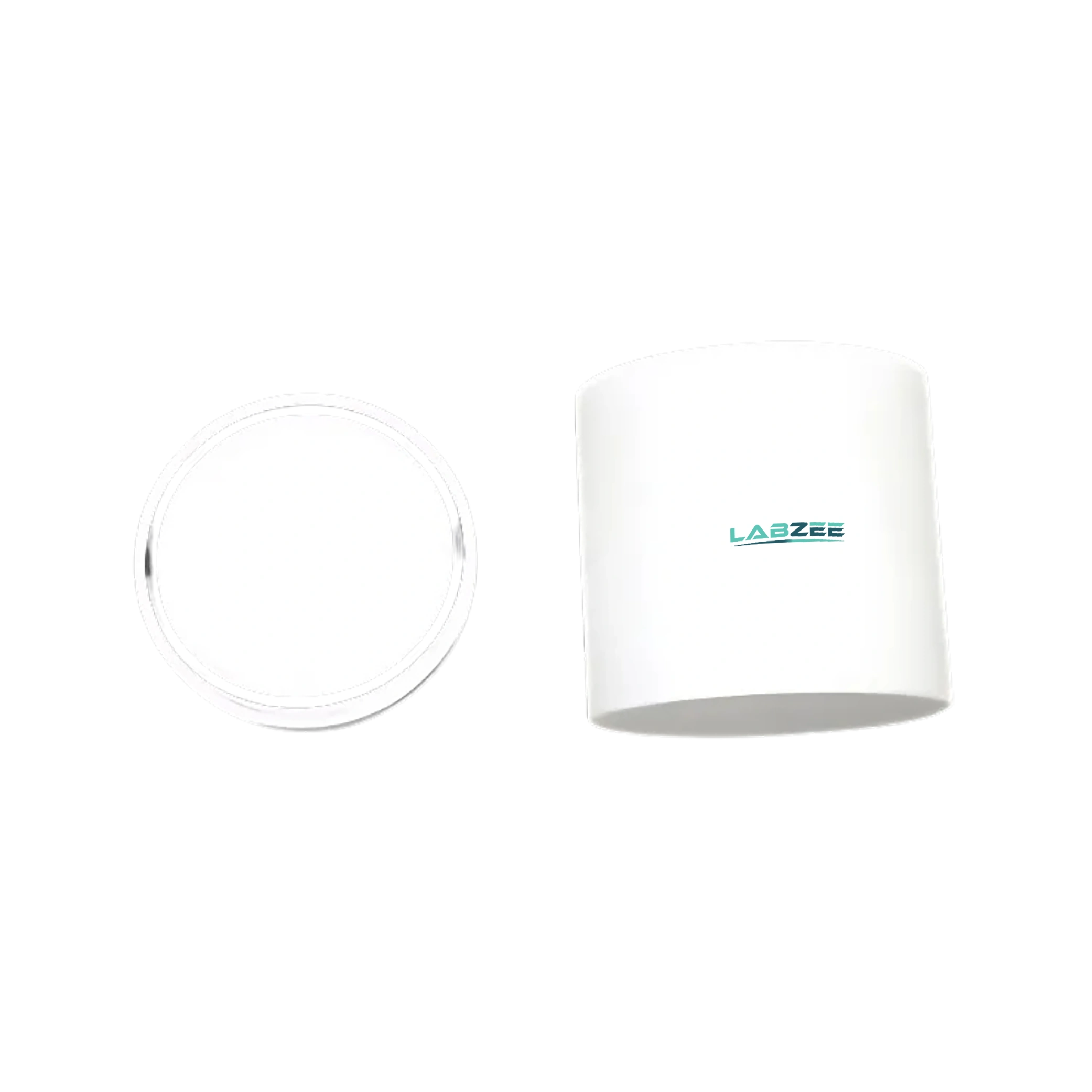

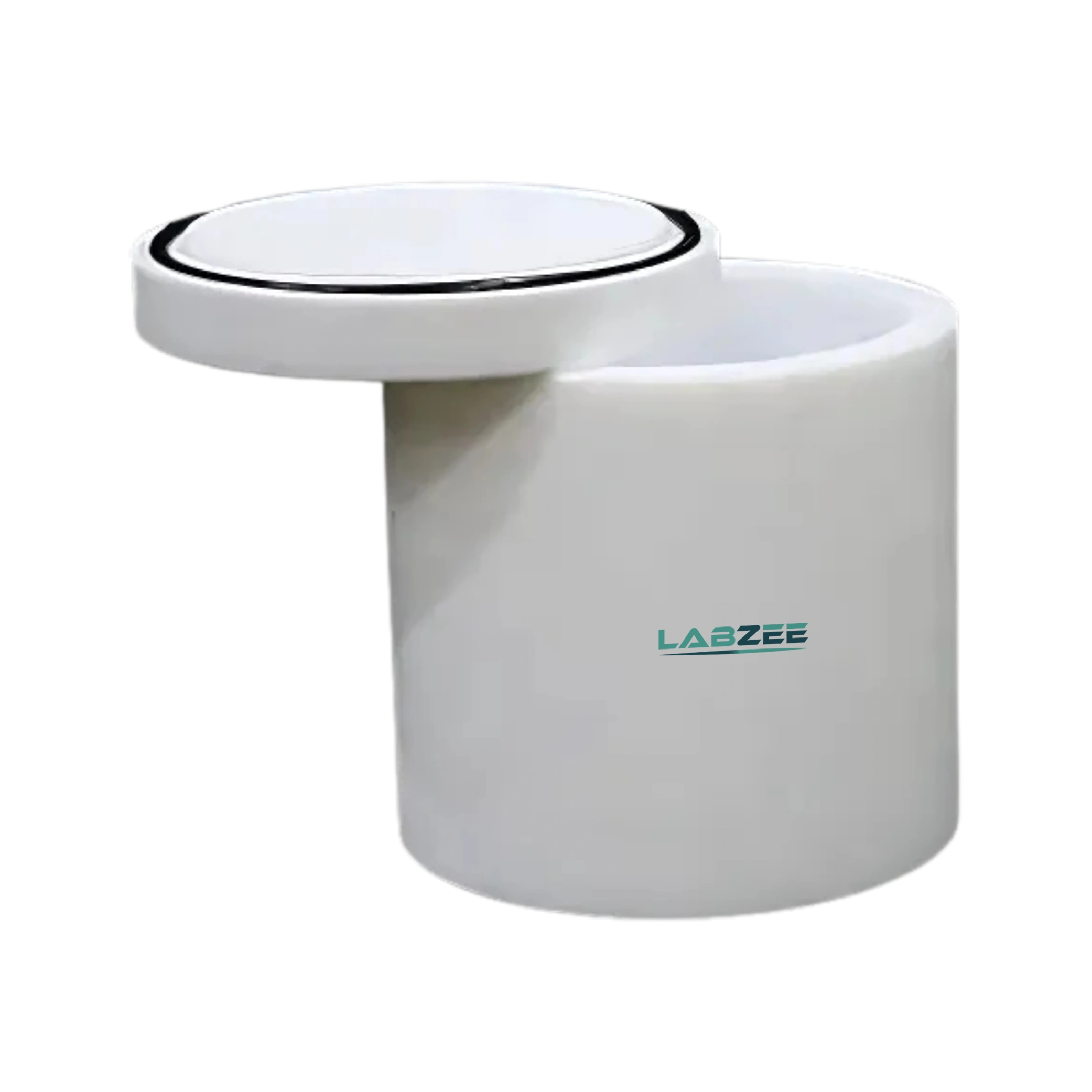

Horizontal PTFE Ball Mill Jar BZHFJ-501 is a corrosion-resistant, low-reactivity grinding jar engineered for the safe milling of highly sensitive and ultra-pure materials. This Ball Mill Jar features a wall thickness of 10 mm and a cover thickness of 28 mm, ensuring excellent mechanical strength and secure sealing during operation. It is constructed from premium PTFE (Polytetrafluoroethylene), offering outstanding chemical inertness, non-stick properties, and thermal stability. Its horizontal structure promotes even energy distribution and reduces localized stress, resulting in uniform grinding without contamination. Our Horizontal PTFE Ball Mill Jar BZHFJ-501 is ideal for pharmaceutical powder processing, semiconductor material grinding, and reactive compound handling.
| Volume | 500 ml |
| No. of Screws | 1 |
| Height | 153 mm |
| Wall Thickness | 10 mm |
| Cover Thickness | 28 mm |
| Internal Diameter | 87 mm |
| External Diameter | 107 mm |
| Bottom Diameter | 107 mm |
| Cover Weight | 0.295 Kg |
| Grinding Jar Weight | 1.280 Kg |
Our Horizontal PTFE Ball Mill Jar BZHFJ-501 is best suited for pharmaceutical compound preparation, semiconductor powder grinding, high-purity oxide milling, and reactive material processing in precision-driven environments.
Frequently Asked Questions
1: What does the capacity of the Horizontal PTFE Ball Mill Jar BZHFJ-501?
The BZHFJ-501 has a 500 ml capacity, ideal for small-batch grinding of high-purity or reactive compounds.
2: Can you use BZHFJ-501 with pharmaceutical and semiconductor powders?
Yes, its chemically inert PTFE construction makes it perfect for ultra-sensitive pharmaceutical and semiconductor applications.
3: Is the PTFE jar resistant to corrosion?
Absolutely, PTFE offers excellent resistance to acids, alkalis, and solvents, making it ideal for harsh chemical environments.
4: Does BZHFJ-501 feature a secure closure system?
Yes, it is equipped with a single screw-lock mechanism to ensure a tight, leak-proof seal during operation.
5: What kind of materials work best in BZHFJ-501?
BZHFJ-501 is suitable for reactive metals, pharmaceutical actives, rare earth compounds, and high-purity oxides.
6: When is a Horizontal PTFE Ball Mill Jar most suitable?
It is ideal for grinding reactive, acidic, or ultra-sensitive materials. Its chemically inert nature ensures contamination-free milling for high-purity applications like pharmaceuticals or rare earth studies.
7: Is the PTFE jar compatible with both dry and wet milling?
Yes, it supports both wet and dry milling. Its hydrophobic surface reduces sticking during wet processes, making cleanup easier and more efficient.
8: What type of grinding media should be used with PTFE jars?
Ceramic or polymer-based media are preferred to avoid damaging the PTFE surface. Avoid metallic media to preserve sample integrity and the jar’s longevity.
9: How durable is the PTFE jar under repeated use?
While chemically robust, PTFE is softer than metals. Avoid abrasive samples or high-speed impacts that can cause surface wear. Regular inspection is recommended.
10: How should I clean a Horizontal PTFE Ball Mill Jar?
Its non-stick surface makes it easy to clean using mild detergents or appropriate lab solvents. Avoid abrasives or harsh scrubbers that may scratch the interior.
