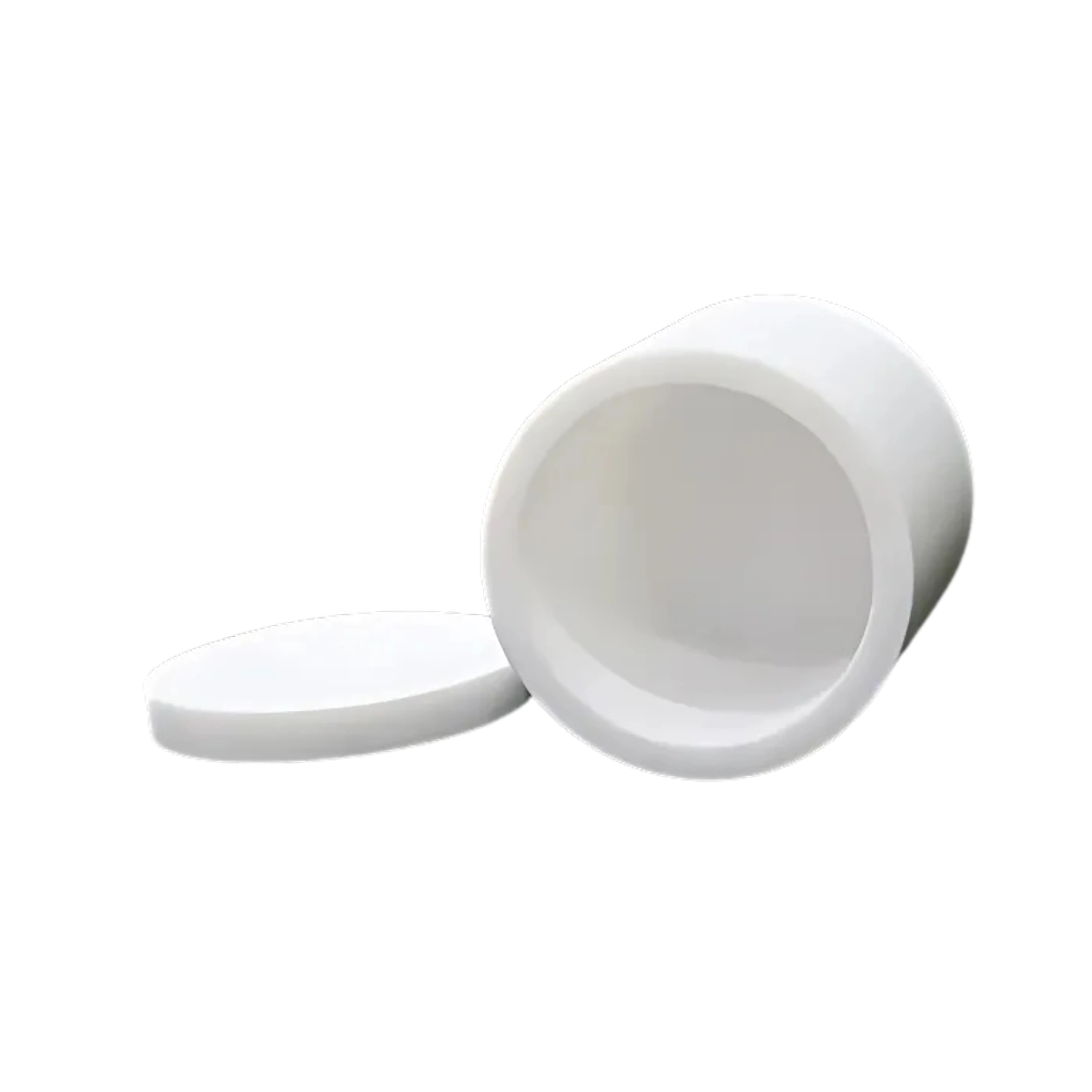

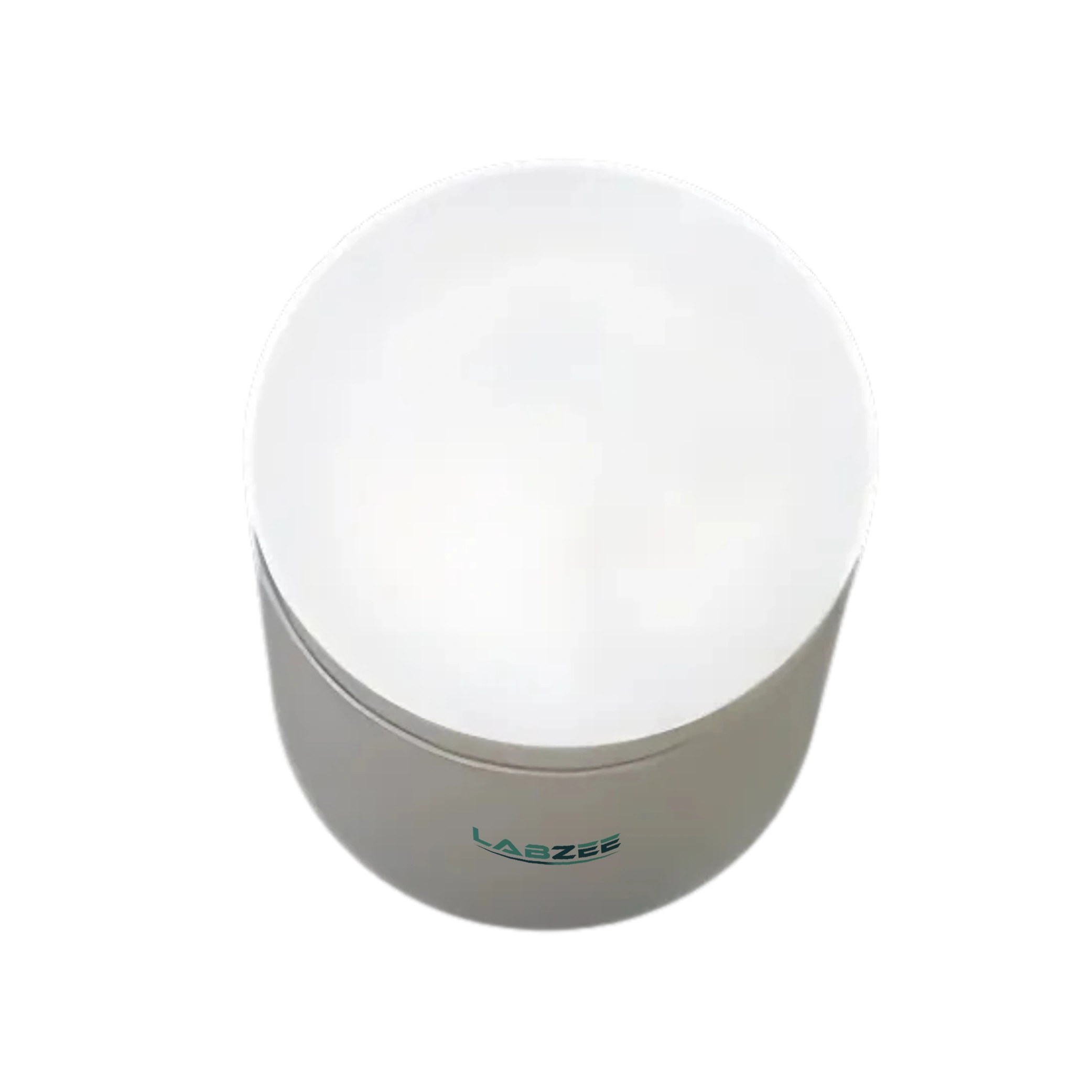

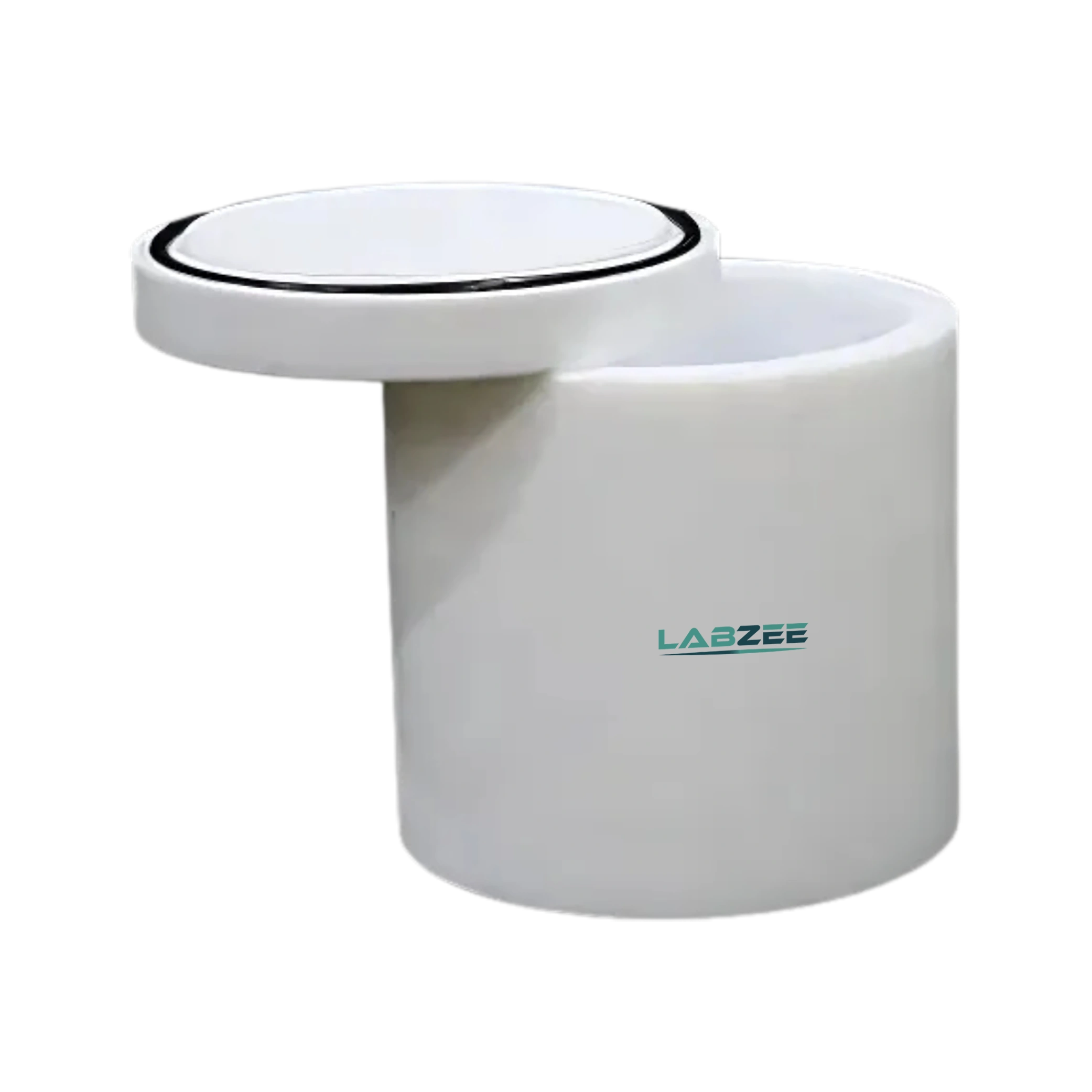

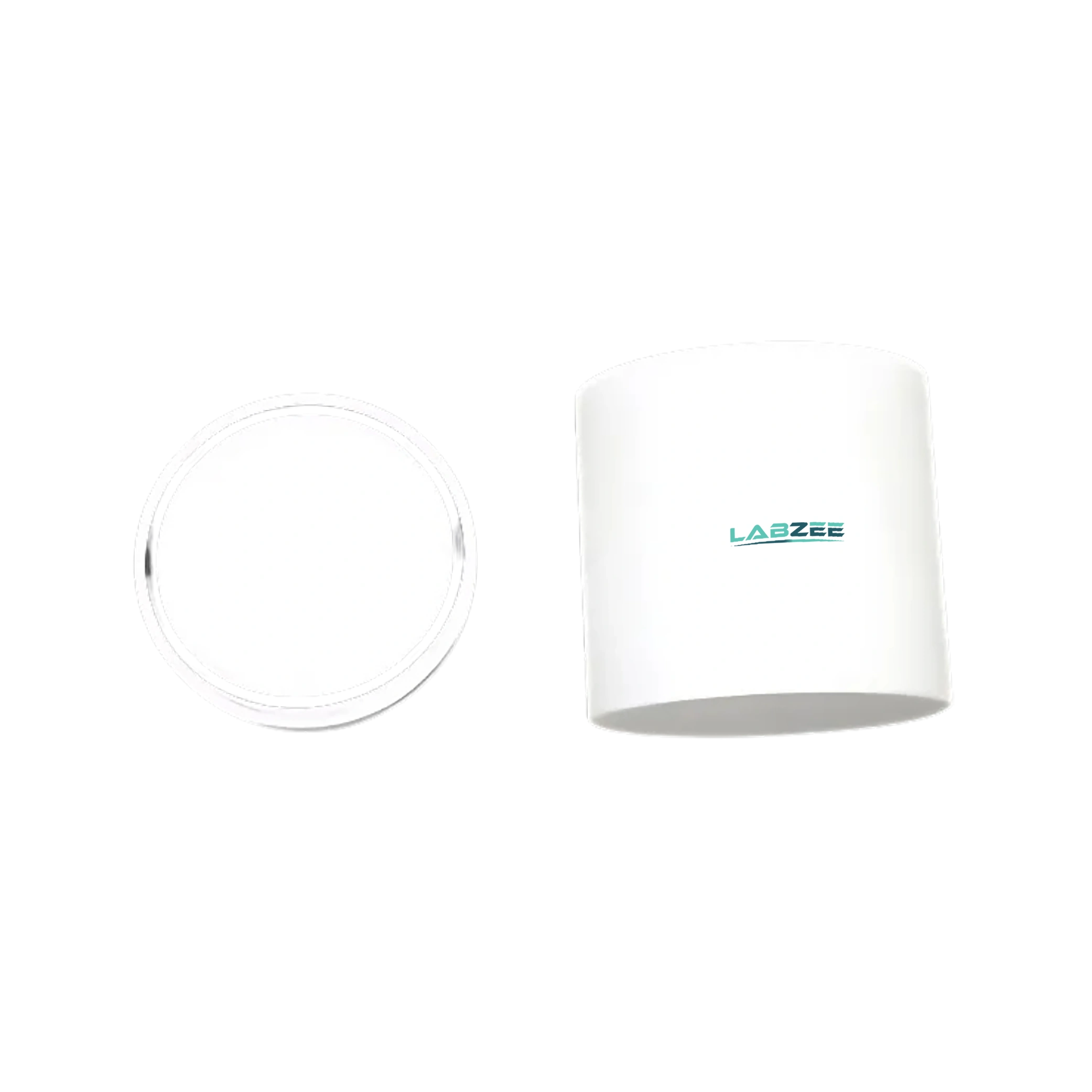

Horizontal PTFE Ball Mill Jar BZHFJ-502 is a chemically inert grinding jar ideal for contamination-free milling of reactive, high-purity, and corrosive materials. This Ball Mill Jar features a wall thickness of 10 mm and a cover thickness of 15 mm, ensuring secure sealing and stable mechanical strength during operation. It is crafted from premium PTFE (Polytetrafluoroethylene), offering exceptional resistance to chemical attack, non-stick properties, and excellent thermal stability. Its horizontal configuration ensures even energy distribution for consistent particle reduction without altering sample composition. Our Horizontal PTFE Ball Mill Jar BZHFJ-502 is best suited for pharmaceutical formulations, high-purity chemical grinding, and reactive metal powder processing.
| Volume | 1 L |
| No. of Screws | 1 |
| Height | 158 mm |
| Wall Thickness | 10 mm |
| Cover Thickness | 15 mm |
| Internal Diameter | 110 mm |
| External Diameter | 130 mm |
| Bottom Diameter | 130 mm |
| Cover Weight | 0.176 Kg |
| Grinding Jar Weight | 1.817 Kg |
Our Horizontal PTFE Ball Mill Jar BZHFJ-502 is best suited for pharmaceutical powder blending, rare earth compound milling, corrosive sample processing, and reactive metal grinding in cleanroom and research-grade environments.
Frequently Asked Questions
1: What is the capacity of the Horizontal PTFE Ball Mill Jar BZHFJ-502?
The BZHFJ-502 has a 1 L capacity, perfect for clean and controlled milling of reactive and corrosive materials.
2: Can you use BZHFJ-502 for pharmaceutical or high-purity grinding?
Yes, its PTFE construction makes it ideal for contamination-free milling of pharmaceutical powders and ultra-pure compounds.
3: Is the jar resistant to harsh chemicals?
Absolutely, PTFE provides excellent chemical resistance to acids, bases, and solvents.
4: Does BZHFJ-502 have a reliable closure system?
Yes, it features a secure single-screw locking cover for leak-proof and safe operation.
5: What materials are best processed in BZHFJ-502?
BZHFJ-502 is best suited for reactive metals, rare earth oxides, pharmaceutical actives, and corrosive chemical powders.
6: When is a Horizontal PTFE Ball Mill Jar most suitable?
It is ideal for grinding reactive, acidic, or ultra-sensitive materials. Its chemically inert nature ensures contamination-free milling for high-purity applications like pharmaceuticals or rare earth studies.
7: Is the PTFE jar compatible with both dry and wet milling?
Yes, it supports both wet and dry milling. Its hydrophobic surface reduces sticking during wet processes, making cleanup easier and more efficient.
8: What type of grinding media should be used with PTFE jars?
Ceramic or polymer-based media are preferred to avoid damaging the PTFE surface. Avoid metallic media to preserve sample integrity and the jar’s longevity.
9: How durable is the PTFE jar under repeated use?
While chemically robust, PTFE is softer than metals. Avoid abrasive samples or high-speed impacts that can cause surface wear. Regular inspection is recommended.
10: How should I clean a Horizontal PTFE Ball Mill Jar?
Its non-stick surface makes it easy to clean using mild detergents or appropriate lab solvents. Avoid abrasives or harsh scrubbers that may scratch the interior.
