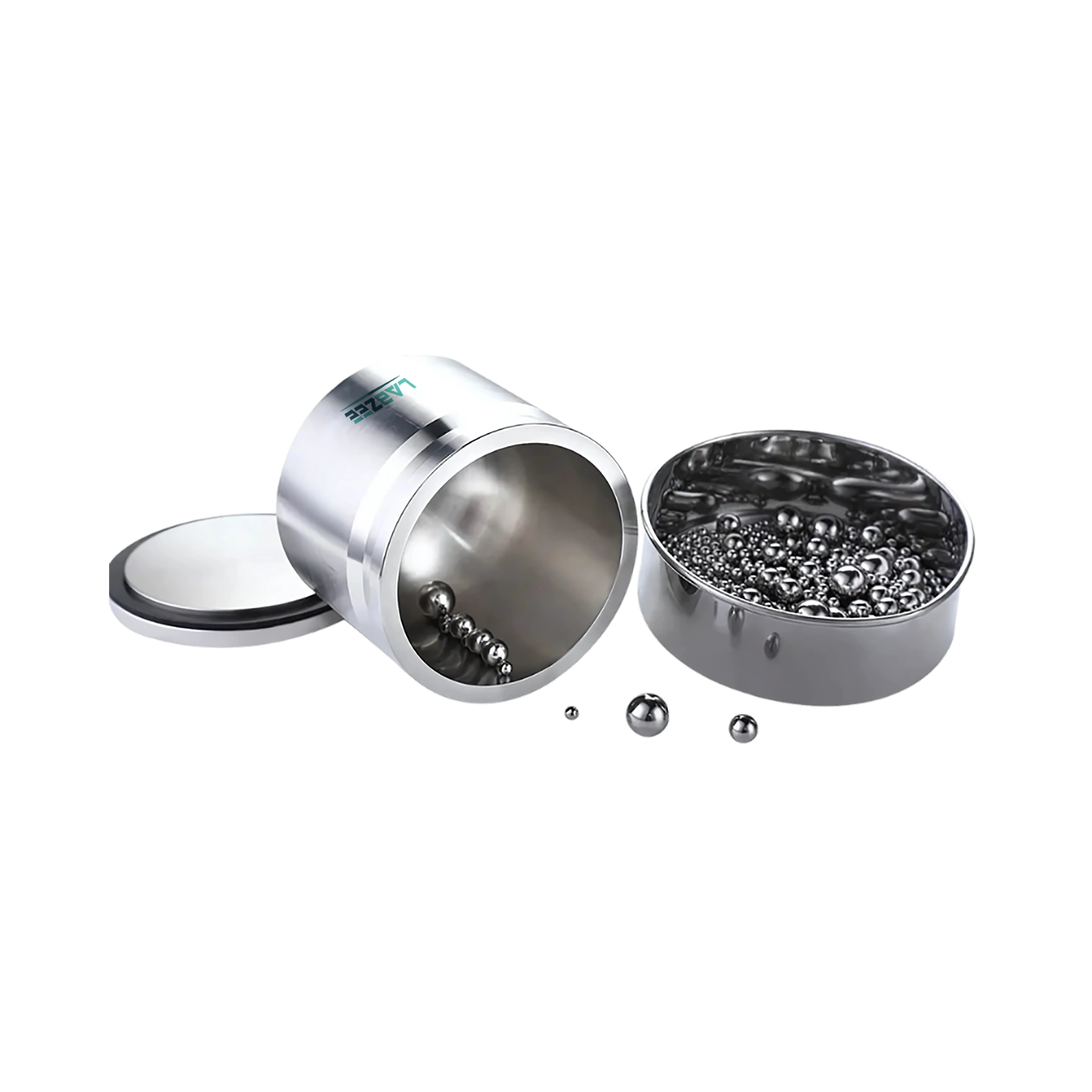

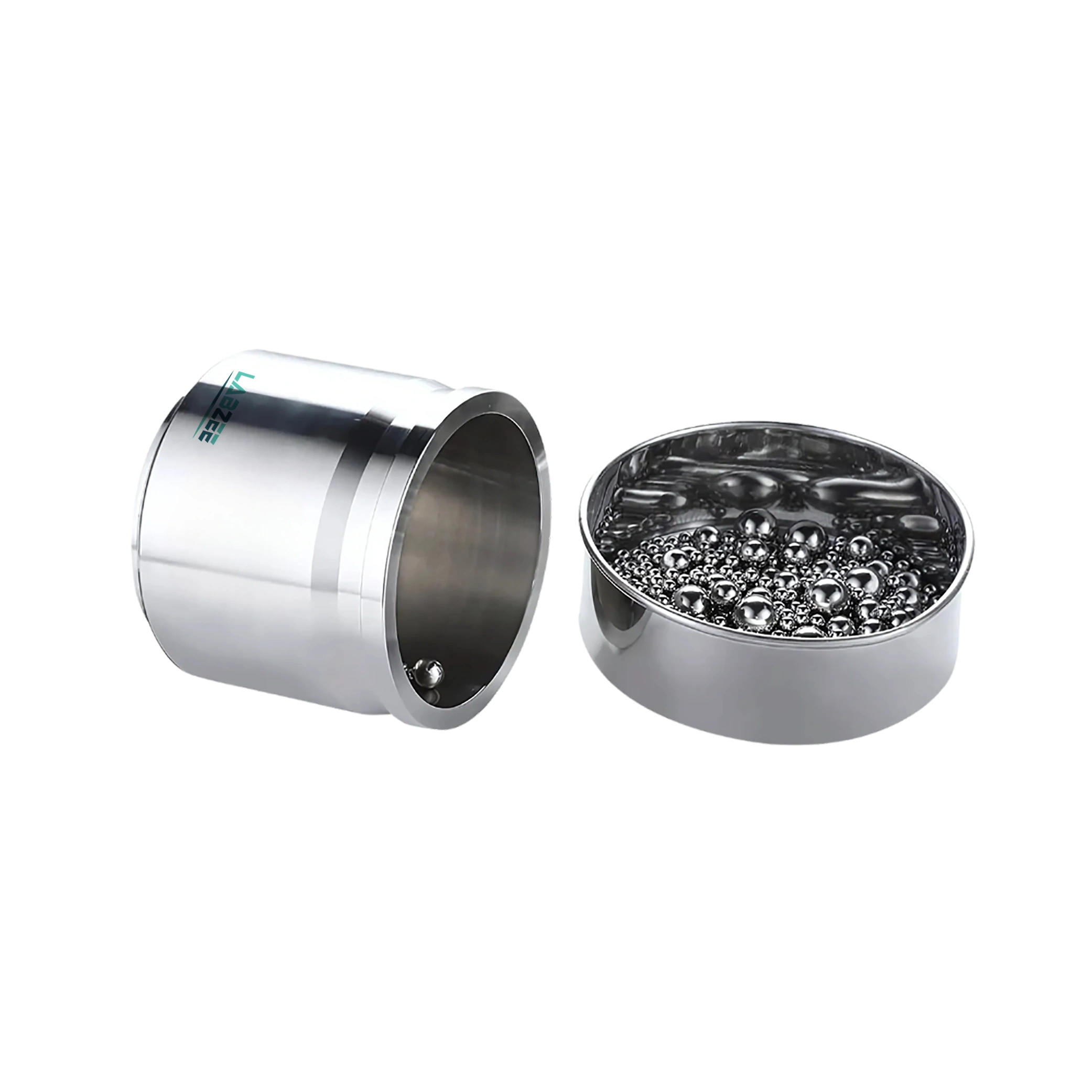

Stainless-Steel Ball Mill Jar BZSSJ-503 is built for intensive grinding in high-energy milling operations. This jar supports a 250 ml capacity and features a wall thickness of 7 mm for durability and stability. It is designed for heavy duty use in both dry and wet milling applications. Its precision sealing ensures minimal contamination and high performance during extended grinding cycles. Our Stainless-Steel Ball Mill Jar BZSSJ-503 is ideal for powder metallurgy, nano-material preparation, and mechanical alloying.
| Volume | 250 ml |
| Height | 88 mm |
| Seal Ring Type | Flat Gasket |
| Wall Thickness | 7 mm |
| Cover Thickness | 13 mm |
| Internal Diameter | 80 mm |
| External Diameter | 94 mm |
| Bottom Diameter | 89 mm |
| Grinding Jar Cover Weight | 0.628 Kg |
| Grinding Jar Wet Weight | 2.09 Kg |
Our Stainless-Steel Ball Mill Jar BZSSJ-503 is used for nano-powder production, ceramic composite synthesis, high-purity material preparation, mineral sample pulverization, mechanical alloying, and fine particle dispersion in high-energy milling environments.
Frequently Asked Questions
1: What is the BZSSJ-503 ball mill jar used for?
The Stainless-Steel Ball Mill Jar BZSSJ-503 is used for grinding, mixing, and homogenizing samples in powder form. It is ideal for applications requiring heavy-duty milling under high pressure. Its strong sealing and thick walls ensure safe operation. This makes it suitable for both laboratory and industrial use.
2: Can you use BZSSJ-503 for wet grinding?
Yes, BZSSJ-503 supports both wet and dry grinding. Its flat gasket and Stainless-Steel build prevent leakage and corrosion. This ensures efficient processing of liquid suspensions. It performs reliably even in repeated wet milling cycles.
3: How is BZSSJ-503 different from other jars?
BZSSJ-503 offers thicker walls and higher strength compared to standard jars. Its heavy-duty build allows longer grinding cycles without distortion. It’s better suited for high-energy applications. The flat gasket also ensures tighter sealing.
4: Is the BZSSJ-503 jar easy to clean?
Yes, its stainless-steel surface is smooth and non-reactive. You can clean it easily with water or alcohol after use. The detachable lid also helps with faster cleaning. This maintains sample purity during multiple uses.
5: Can you use BZSSJ-503 in nanoparticle production?
Absolutely, BZSSJ-503 is often used in nanoparticle synthesis. Its durable construction handles intense grinding without contamination. It’s effective in reducing materials to ultra-fine sizes. This makes it a trusted choice in material science labs.
6: When does a Stainless-Steel ball mill jar used in laboratories?
It is used for grinding, mixing, or homogenizing tough samples under high-energy milling conditions. Its hardness and durability suit metal, ceramic, and composite materials. It’s commonly used in mechanical alloying and fine powder production.
7: Can it be used with different types of ball mills?
Yes, Stainless-Steel Ball Mill Jars are compatible with planetary and roller-type ball mills. Always match the jar size and clamp system with your mill model. Proper fit ensures balanced rotation and safety.
8: Can it withstand corrosive or high-impact samples?
Yes, Stainless-Steel offers excellent corrosion and impact resistance. It performs well with abrasive powders and harsh milling media. Avoid using it with highly reactive materials like acids.
9: When should the jar be cleaned?
Clean the jar after every milling cycle to prevent cross-contamination. Use soft brushes and suitable solvents depending on the material processed. Avoid steel wool or harsh abrasives that may scratch the surface.
10: Can it be sealed tightly for wet grinding?
Yes, these jars include gasketed lids and locking rings for leak-free wet grinding. Ensure the seal is intact before each use. This prevents spills and pressure buildup during operation.
