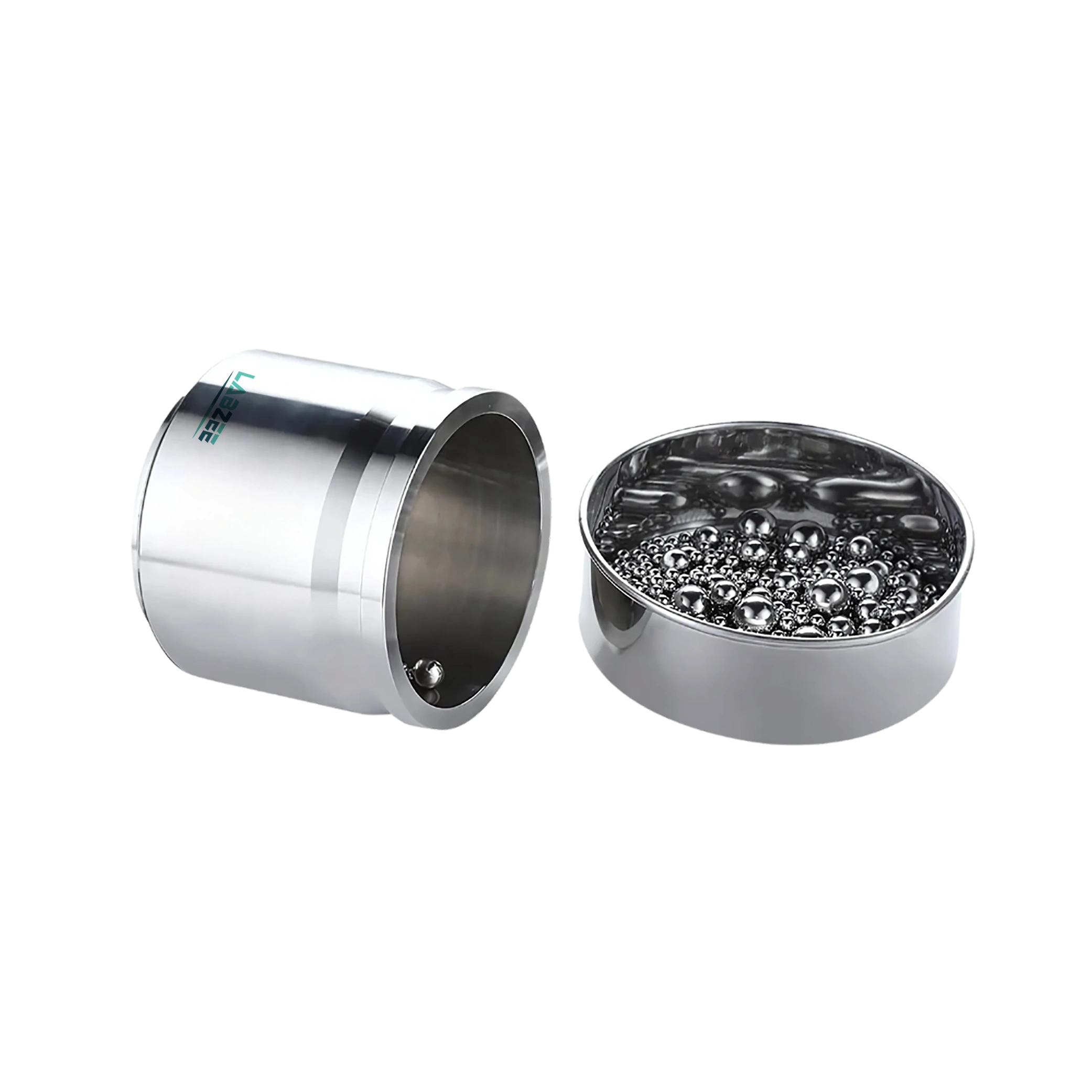

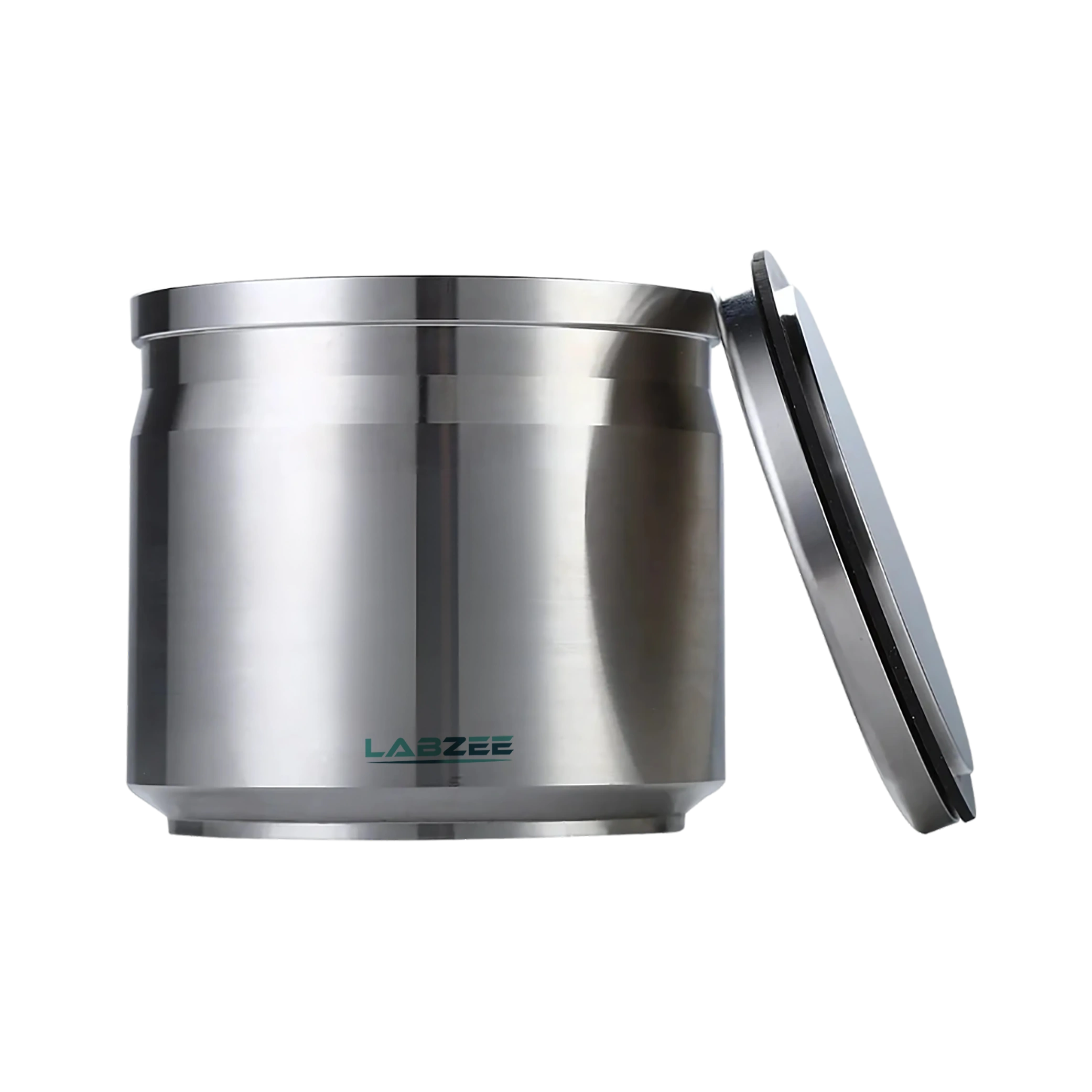

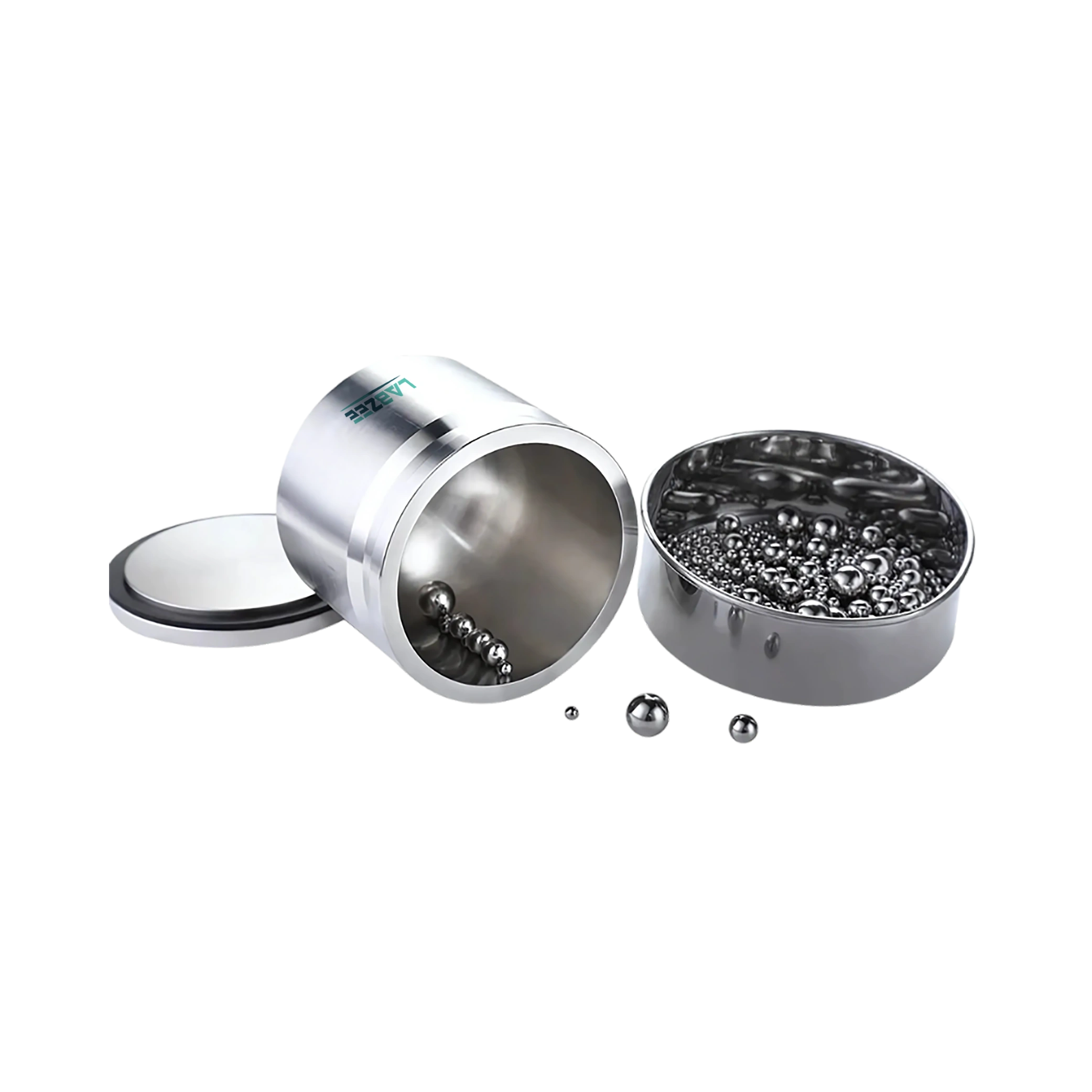

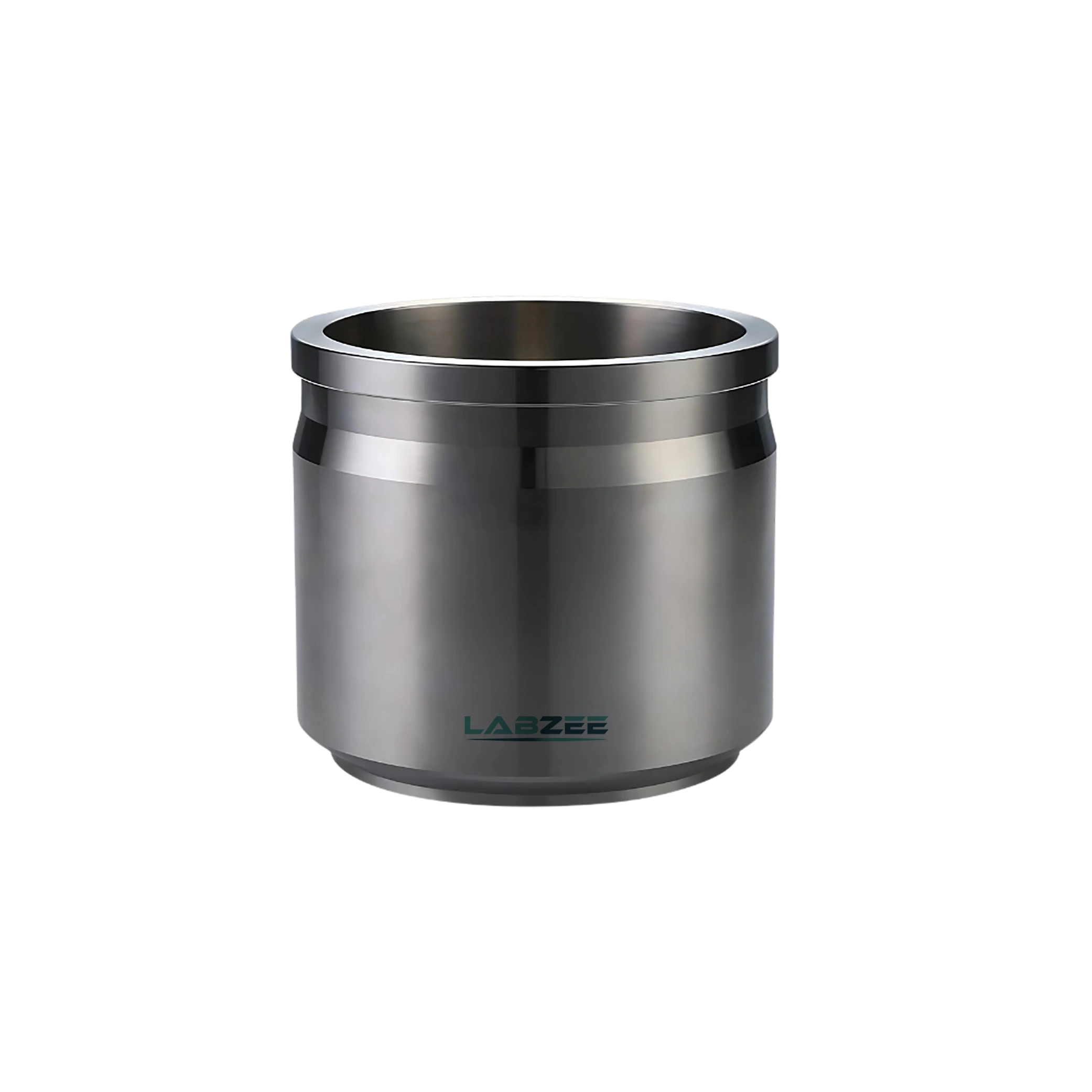

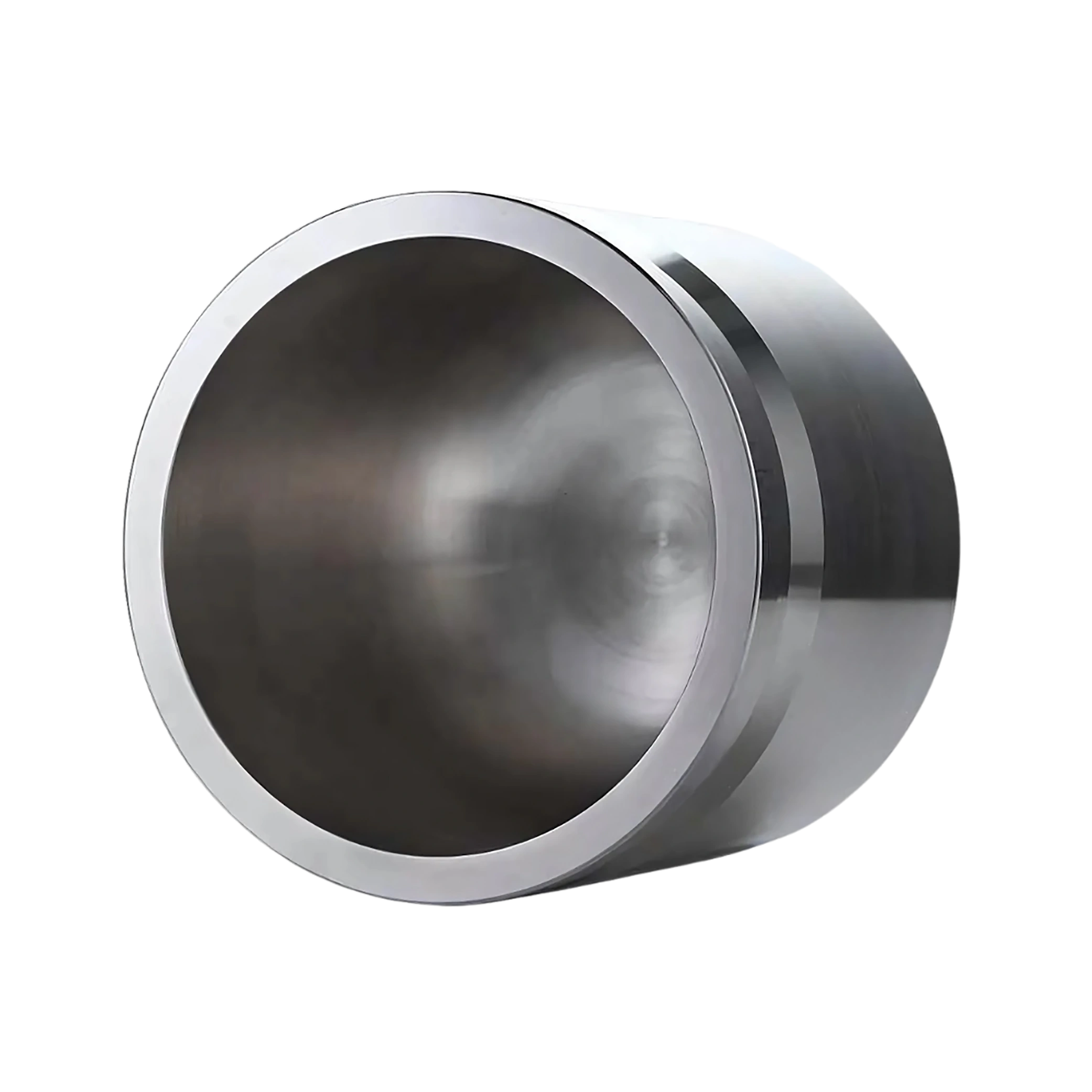

Stainless-Steel Ball Mill Jar BZSSJ-507 is built for high-capacity grinding and consistent material processing. This ball mill jar features a 3 L volume and a 185 mm height for robust sample loading in industrial applications. It includes a secure O-ring seal and precision-balanced weight for leak-free operation and effective energy transfer. Its durable wall and cover structure supports extended milling cycles and long-term usability. Our Stainless-Steel Ball Mill Jar BZSSJ-507 is best suited for homogenizing abrasive ores, reducing refractory solids, and mixing thermally reactive powder blends.
| Volume | 3 L |
| Height | 185 mm |
| Seal Ring Type | O Ring |
| Wall Thickness | 6 mm |
| Cover Thickness | 14 mm |
| Internal Diameter | 154 mm |
| External Diameter | 166 mm |
| Bottom Diameter | 149 mm |
| Grinding Jar Cover Weight | 1.466 Kg |
| Grinding Jar Wet Weight | 6.818 Kg |
Our Stainless-Steel Ball Mill Jar BZSSJ-507 is used in mineral batch pulverization, thermal powder preparation, dry and wet dispersion of pigment materials, and mechanical alloying of metal powders in high-speed ball milling systems.
Frequently Asked Questions
1: What makes BZSSJ-507 ideal for large-scale grinding tasks?
The Stainless-Steel Ball Mill Jar BZSSJ-507 offers a spacious 3 L volume, which is excellent for high-load grinding applications that require uniform particle size reduction across large sample batches.
2: Can you explain the role of the O-ring in BZSSJ-507?
The integrated O-ring creates a dependable seal that prevents leaks during intense grinding, especially when wet media or reactive powders are involved, enhancing safety and consistency.
3: Is BZSSJ-507 compatible with high-speed ball mills?
Yes, BZSSJ-507 is designed with balanced construction and durable materials that withstand the rigors of high-speed milling, including rapid media collisions and prolonged rotational cycles.
4: How does the jar's structure benefit repeated milling?
Its thick stainless-steel body and strong lid absorb repetitive mechanical stress, making it suitable for extended use without compromising shape, safety, or grinding accuracy.
5: What types of materials are best processed with BZSSJ-507?
BZSSJ-507 is excellent for heavy-duty applications involving metallic powders, ceramic oxides, composite slurries, or other hard-to-grind industrial samples.
6: When does a Stainless-Steel ball mill jar used in laboratories?
It is used for grinding, mixing, or homogenizing tough samples under high-energy milling conditions. Its hardness and durability suit metal, ceramic, and composite materials. It’s commonly used in mechanical alloying and fine powder production.
7: Can it be used with different types of ball mills?
Yes, Stainless-Steel Ball Mill Jars are compatible with planetary and roller-type ball mills. Always match the jar size and clamp system with your mill model. Proper fit ensures balanced rotation and safety.
8: Can it withstand corrosive or high-impact samples?
Yes, Stainless-Steel offers excellent corrosion and impact resistance. It performs well with abrasive powders and harsh milling media. Avoid using it with highly reactive materials like acids.
9: When should the jar be cleaned?
Clean the jar after every milling cycle to prevent cross-contamination. Use soft brushes and suitable solvents depending on the material processed. Avoid steel wool or harsh abrasives that may scratch the surface.
10: Can it be sealed tightly for wet grinding?
Yes, these jars include gasketed lids and locking rings for leak-free wet grinding. Ensure the seal is intact before each use. This prevents spills and pressure buildup during operation.
