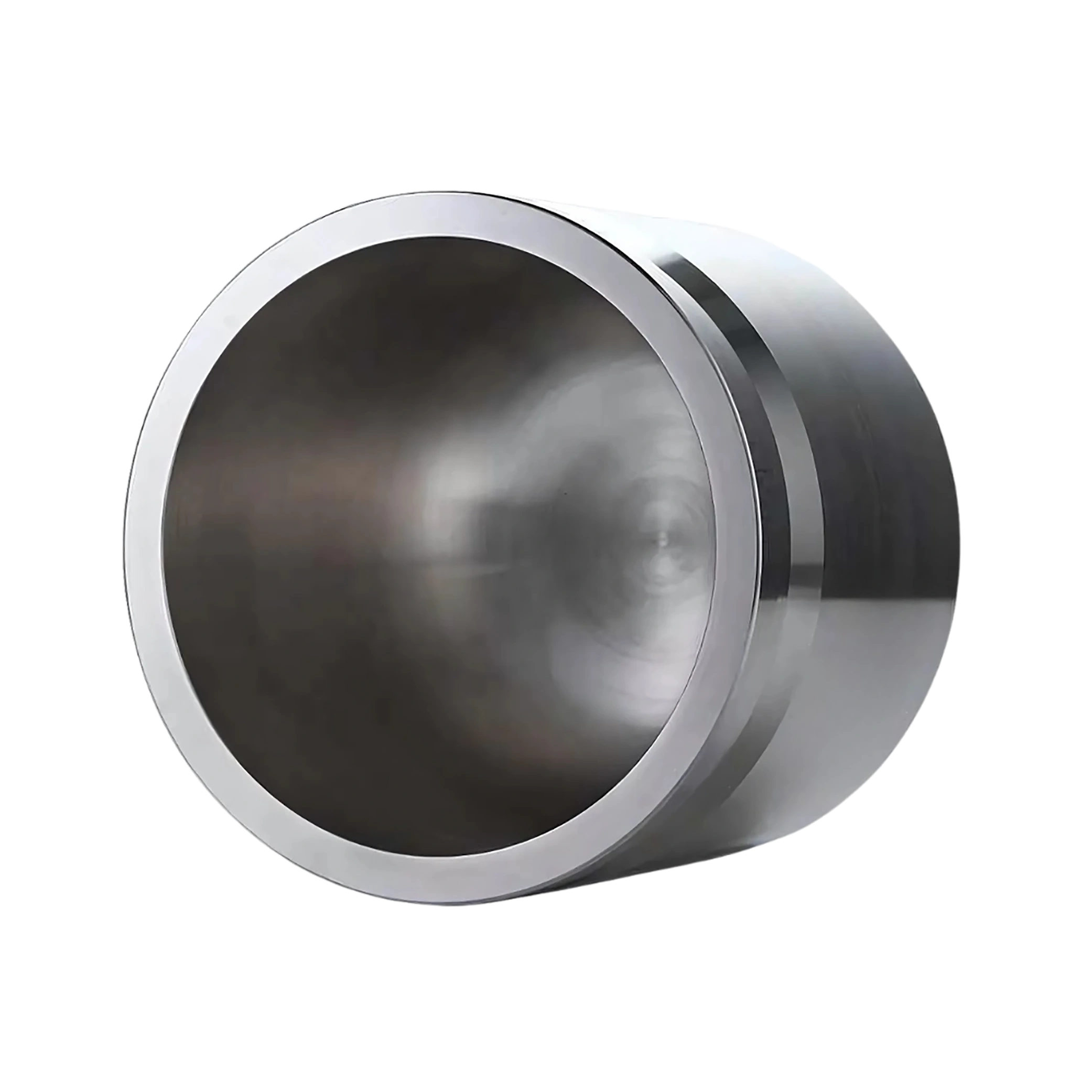

Stainless-Steel Ball Mill Jar BZSSJ-511 is built for ultra-high volume milling use. This ball mill jar holds a 25L capacity and stands 369 mm tall, ideal for intensive grinding operations. It is designed with corrosion-resistant Stainless-Steel and a secure O-ring seal for long-term durability. Its robust structure allows it to operate efficiently under high mechanical loads and thermal fluctuations. Our Stainless-Steel Ball Mill Jar BZSSJ-511 is suitable for ceramic material dispersion, metallurgy-based powder preparation, and mechanical alloying in large industrial labs and heavy-duty pilot plants.
| Volume | 25 L |
| Height | 369 mm |
| Seal Ring Type | O Ring |
| Wall Thickness | 6.5 mm |
| Cover Thickness | 17 mm |
| Internal Diameter | 309 mm |
| External Diameter | 322 mm |
| Bottom Diameter | 192 mm |
| Grinding Jar Cover Weight | 7.8 Kg |
| Grinding Jar Wet Weight | 33.4 Kg |
Our Stainless-Steel Ball Mill Jar BZSSJ-511 is well-suited for advanced grinding of high-density samples, heavy-duty mixing of ceramics or metal powders, thermal insulation powder processing, and large-batch particle homogenization in R&D labs and pilot production environments.
Frequently Asked Questions
1: What makes BZSSJ-511 suitable for large-scale milling?
The BZSSJ-511 is engineered with a 25L volume and a reinforced Stainless-Steel body that ensures reliable grinding performance during bulk material handling.
2: Can you process both wet and dry materials in BZSSJ-511?
Yes, the jar is versatile and supports both wet and dry milling processes, thanks to its leakproof design and corrosion-resistant construction.
3: Is the O-ring seal of BZSSJ-511 reliable under continuous use?
Absolutely. The O-ring provides a secure seal that prevents leaks and contamination even during extended, high-speed milling sessions.
4: Does BZSSJ-511 require special handling for cleaning?
No, the smooth stainless-steel interior and removable cover make cleaning quick and hassle-free after intensive grinding operations.
5: How does BZSSJ-511 manage mechanical stress?
Its thick-walled body and high-quality materials distribute mechanical forces evenly, minimizing vibration and wear during prolonged use.
6: Can you use BZAOJ-501 with aggressive media?
Yes, BZAOJ-501 resists acidic and basic reagents, allowing safe grinding of chemically reactive or corrosive compounds without degrading the jar surface.
7: When does a Stainless-Steel ball mill jar used in laboratories?
It is used for grinding, mixing, or homogenizing tough samples under high-energy milling conditions. Its hardness and durability suit metal, ceramic, and composite materials. It’s commonly used in mechanical alloying and fine powder production.
8: Can it be used with different types of ball mills?
Yes, Stainless-Steel Ball Mill Jars are compatible with planetary and roller-type ball mills. Always match the jar size and clamp system with your mill model. Proper fit ensures balanced rotation and safety.
9: Can it withstand corrosive or high-impact samples?
Yes, Stainless-Steel offers excellent corrosion and impact resistance. It performs well with abrasive powders and harsh milling media. Avoid using it with highly reactive materials like acids.
10: When should the jar be cleaned?
Clean the jar after every milling cycle to prevent cross-contamination. Use soft brushes and suitable solvents depending on the material processed. Avoid steel wool or harsh abrasives that may scratch the surface.
11: Can it be sealed tightly for wet grinding?
Yes, these jars include gasketed lids and locking rings for leak-free wet grinding. Ensure the seal is intact before each use. This prevents spills and pressure buildup during operation.
