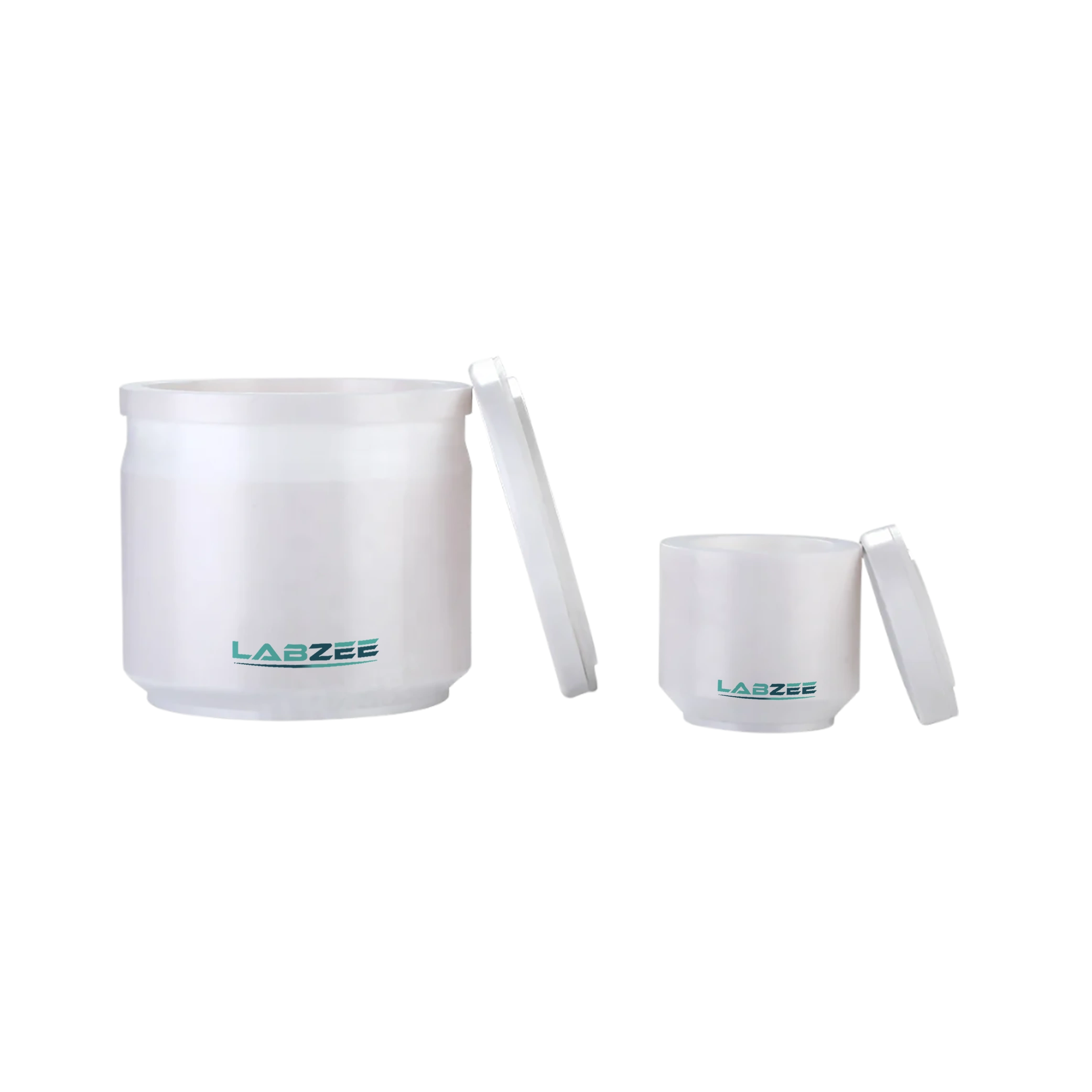

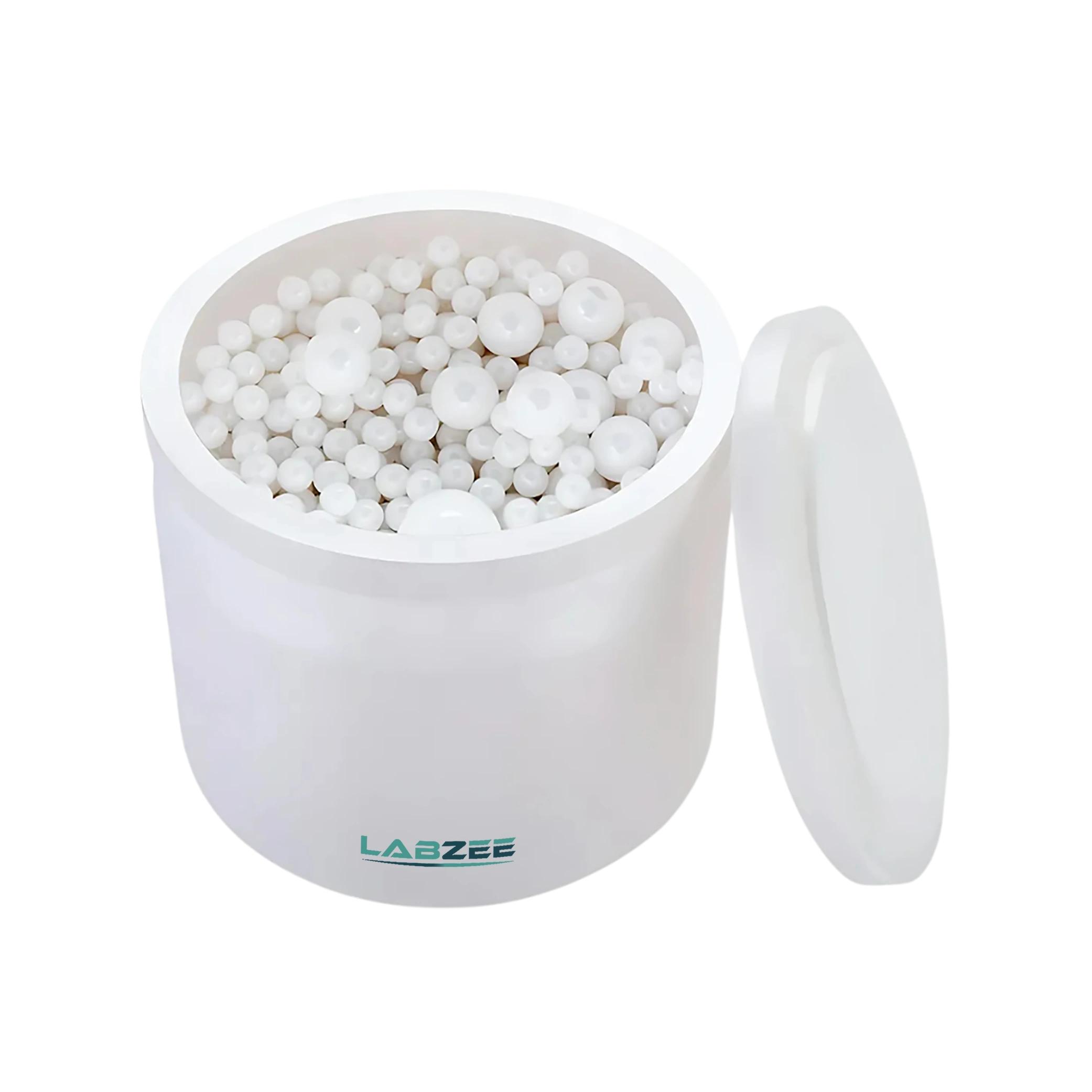

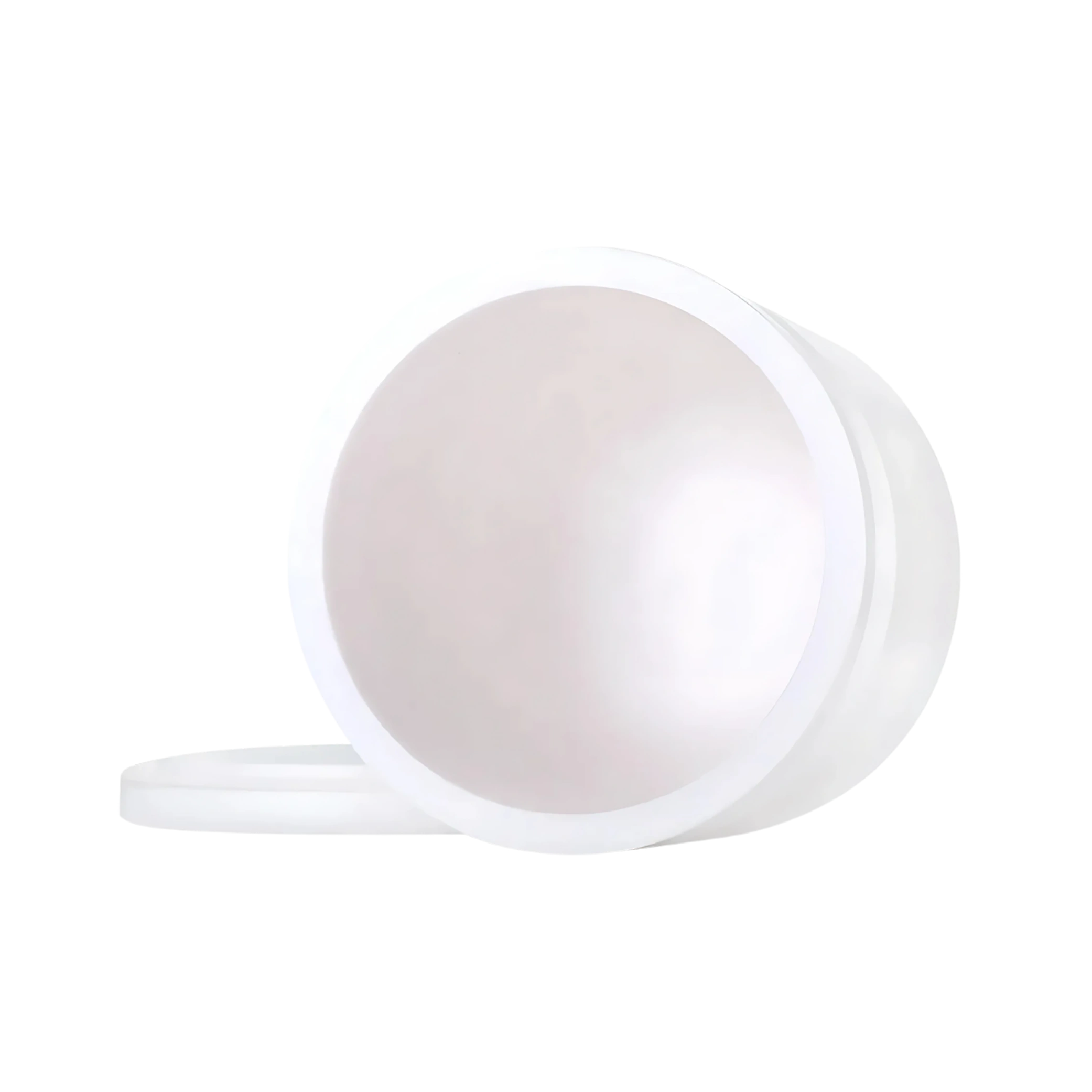

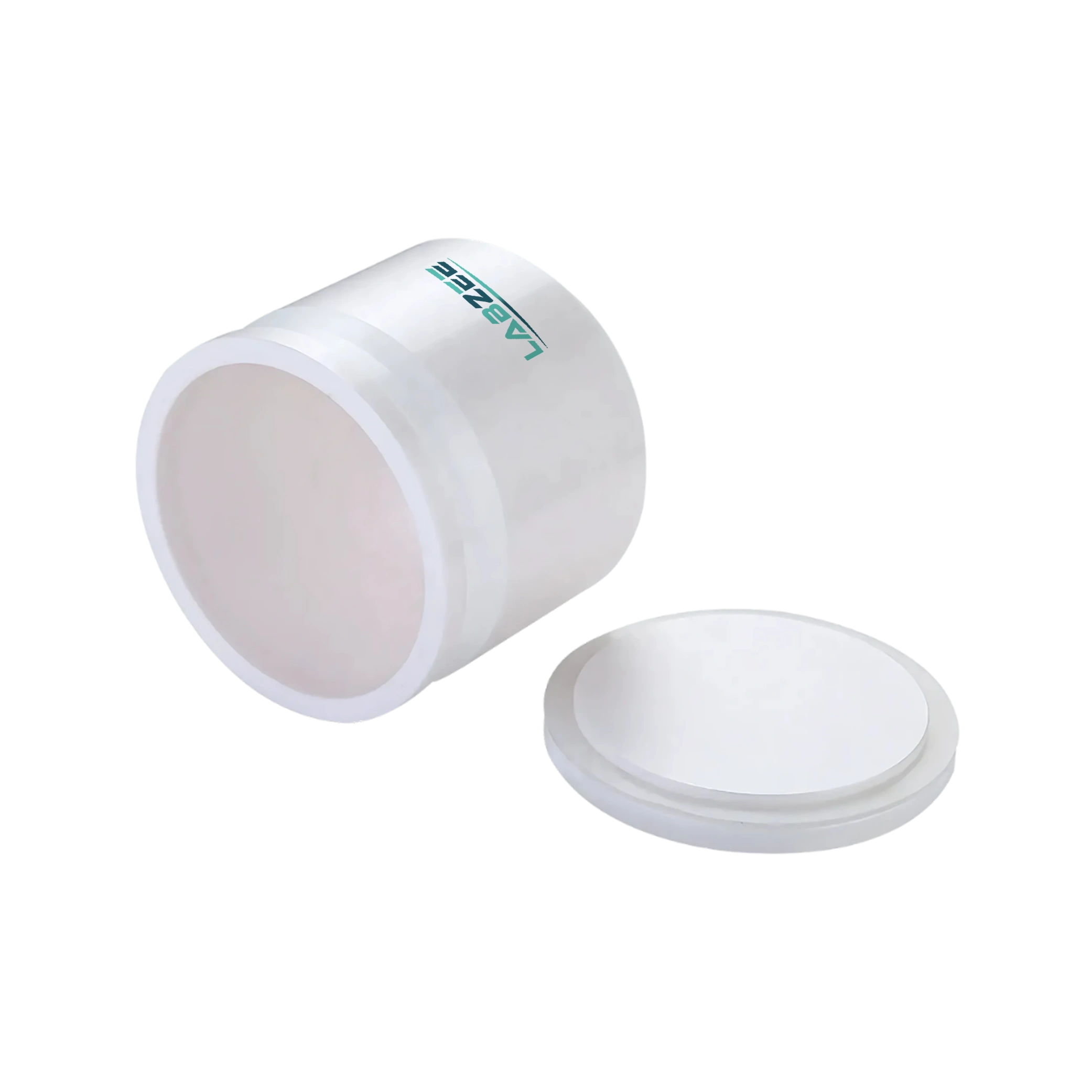

Zirconia Oxide Ball Mill Jar BZZOJ-505 is designed for efficient, contamination-free milling. This ball mill jar features a 1 L capacity with a flat gasket sealing system and a precisely engineered ceramic body. It offers excellent mechanical strength, chemical inertness, and thermal stability for demanding grinding tasks. Its smooth internal surface prevents residue build-up and simplifies cleaning between batches. Our Zirconia Oxide Ball Mill Jar BZZOJ-505 is ideal for pigment blending, nano-powder production, ink formulation, catalyst mixing, and advanced composite material research.
| Volume | 1L |
| Seal Type | Flat Gasket |
| Height | 122 mm |
| Bottom Diameter | 119 mm |
| Wall Thickness | 7 mm |
| Lid Thickness | 13 mm |
| Inner Diameter | 116 mm |
| Outer Diameter | 130 mm |
| Lid Weight | 0.955 Kg |
| Jar Net Weight | 3.508 Kg |
Our Zirconia Oxide Ball Mill Jar BZZOJ-505 is specifically used for nano-particle synthesis, pigment formulation, electronic material dispersion, high-purity compound mixing, and precision grinding of chemical substances where purity and repeatability are essential.
Frequently Asked Questions
1: What is the primary benefit of using BZZOJ-505?
Zirconia Oxide Ball Mill Jar BZZOJ-505 provides contamination-free milling, making it perfect for high-purity sample preparation.
2: Can you use BZZOJ-505 for abrasive materials?
Yes, it can handle abrasive and reactive materials due to its tough ceramic body and resistance to chemical wear.
3: How is the flat gasket in BZZOJ-505 effective?
The flat gasket ensures a tight and uniform seal that minimizes sample leakage and supports secure, consistent milling.
4: Is BZZOJ-505 easy to clean after use?
Its smooth zirconia surface prevents material sticking and simplifies post-use cleaning, even for fine powders.
5: What types of grinding tasks is BZZOJ-505 ideal for?
Zirconia Oxide Ball Mill Jar BZZOJ-505 is ideal for fine grinding in pigment processing, nano-powder production, and specialty material applications.
6: When is a Zirconia Oxide Ball Mill Jar the best choice for milling?
A Zirconia Oxide Ball Mill Jar is best used when absolute purity and high abrasion resistance are critical. It is ideal for grinding materials like ceramics, glass, pigments, and electronics-grade powders. The non-reactive nature ensures no contamination even with highly sensitive samples.
7: Can a Zirconia Oxide Ball Mill Jar be used for both dry and wet grinding?
Yes, a Zirconia Oxide Ball Mill Jar is fully suitable for both dry and wet grinding applications. It features a secure sealing system that prevents leakage during wet milling. Always ensure the jar is properly closed before operation.
8: Can the Zirconia Oxide Ball Mill Jar be used in all ball mill models?
Zirconia Oxide Ball Mill Jars are compatible with most planetary and roller-type mills. Check the dimensions and locking compatibility with your specific machine model. Using an unbalanced jar can affect performance and safety.
9: When should the Zirconia Oxide Ball Mill Jar be replaced?
A Zirconia Oxide Ball Mill Jar should be replaced when surface cracks, internal wear, or efficiency loss is observed. Although highly durable, it can wear down over extended use. Regular inspection ensures sample purity and equipment protection.
10: Can the Zirconia Oxide Ball Mill Jar be cleaned between batches?
Yes, the Zirconia Oxide Ball Mill Jar can be easily cleaned using water, alcohol, or compatible solvents. Its smooth, dense surface prevents material buildup. Avoid using abrasive tools that may damage the jar’s polish.
