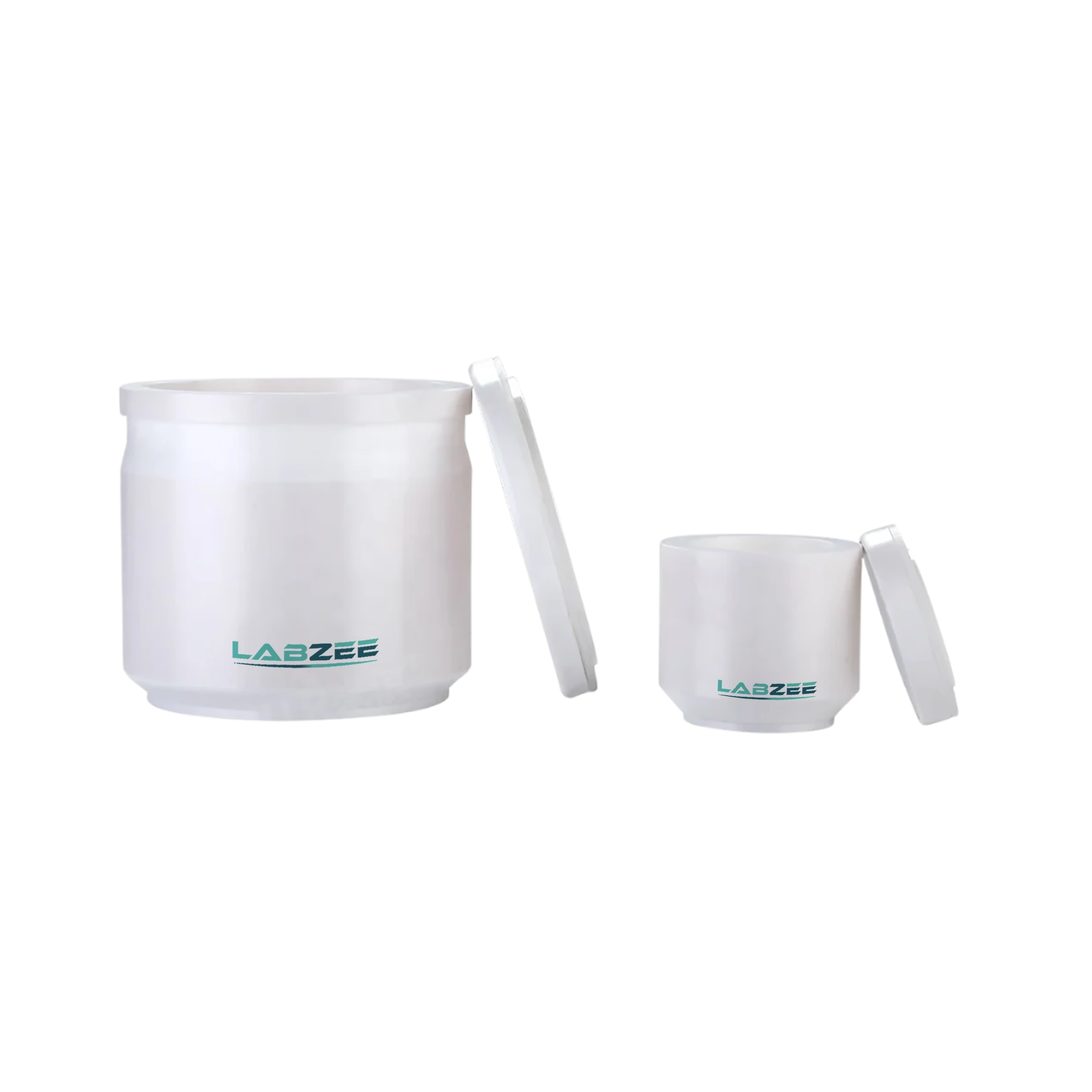

Zirconia Oxide Ball Mill Jar BZZOJ-508 is built for precision grinding of sensitive materials. This ball mill jar has a 5L capacity and includes a flat gasket seal to ensure secure, contamination-free milling. It features a tough zirconia body that delivers excellent resistance against wear, thermal shock, and chemical corrosion. Its construction supports high-energy grinding with low noise and minimal jar wear, making it ideal for demanding tasks. Our Zirconia Oxide Ball Mill Jar BZZOJ-508 is designed for nano grinding, electronic material dispersion, pigment processing, and advanced composite synthesis applications.
| Volume | 5L |
| Seal Type | Flat Gasket |
| Height | 211 mm |
| Bottom Diameter | 179 mm |
| Wall Thickness | 8 mm |
| Lid Thickness | 13 mm |
| Inner Diameter | 184 mm |
| Outer Diameter | 200 mm |
| Jar Weight | 9.765 Kg |
| Lid Weight | 2.327 Kg |
Our Zirconia Oxide Ball Mill Jar BZZOJ-508 is used in ultra-fine dispersion of electronic pastes, uniform particle breakdown in pigment blending, mechanical alloying of sensitive compounds, and wet grinding of oxides in advanced ceramic research and materials development.
Frequently Asked Questions
1: What are the benefits of using BZZOJ-508 in wet grinding?
Zirconia Oxide Ball Mill Jar BZZOJ-508 ensures consistent particle dispersion while minimizing contamination, making it highly effective for wet grinding of oxides and fine suspensions.
2: Can you use BZZOJ-508 for pigment preparation?
Yes, BZZOJ-508 provides uniform grinding and smooth internal surfaces, ensuring accurate and repeatable results during pigment dispersion and particle size reduction.
3: Does BZZOJ-508 resist chemical corrosion?
This jar offers excellent resistance to acids, alkalis, and organic solvents, allowing it to handle aggressive grinding environments without degradation.
4: Is BZZOJ-508 suitable for high-speed milling?
With its dense zirconia construction and flat gasket seal, BZZOJ-508 supports high-energy milling while maintaining structural integrity and reducing wear.
5: What materials are ideal to process in BZZOJ-508?
BZZOJ-508 is perfect for processing sensitive electronic materials, oxides, ceramic slurries, nano powders, and pigment mixtures with demanding purity requirements.
6: When is a Zirconia Oxide Ball Mill Jar the best choice for milling?
A Zirconia Oxide Ball Mill Jar is best used when absolute purity and high abrasion resistance are critical. It is ideal for grinding materials like ceramics, glass, pigments, and electronics-grade powders. The non-reactive nature ensures no contamination even with highly sensitive samples.
7: Can a Zirconia Oxide Ball Mill Jar be used for both dry and wet grinding?
Yes, a Zirconia Oxide Ball Mill Jar is fully suitable for both dry and wet grinding applications. It features a secure sealing system that prevents leakage during wet milling. Always ensure the jar is properly closed before operation.
8: Can the Zirconia Oxide Ball Mill Jar be used in all ball mill models?
Zirconia Oxide Ball Mill Jars are compatible with most planetary and roller-type mills. Check the dimensions and locking compatibility with your specific machine model. Using an unbalanced jar can affect performance and safety.
9: When should the Zirconia Oxide Ball Mill Jar be replaced?
A Zirconia Oxide Ball Mill Jar should be replaced when surface cracks, internal wear, or efficiency loss is observed. Although highly durable, it can wear down over extended use. Regular inspection ensures sample purity and equipment protection.
10: Can the Zirconia Oxide Ball Mill Jar be cleaned between batches?
Yes, the Zirconia Oxide Ball Mill Jar can be easily cleaned using water, alcohol, or compatible solvents. Its smooth, dense surface prevents material buildup. Avoid using abrasive tools that may damage the jar’s polish.
