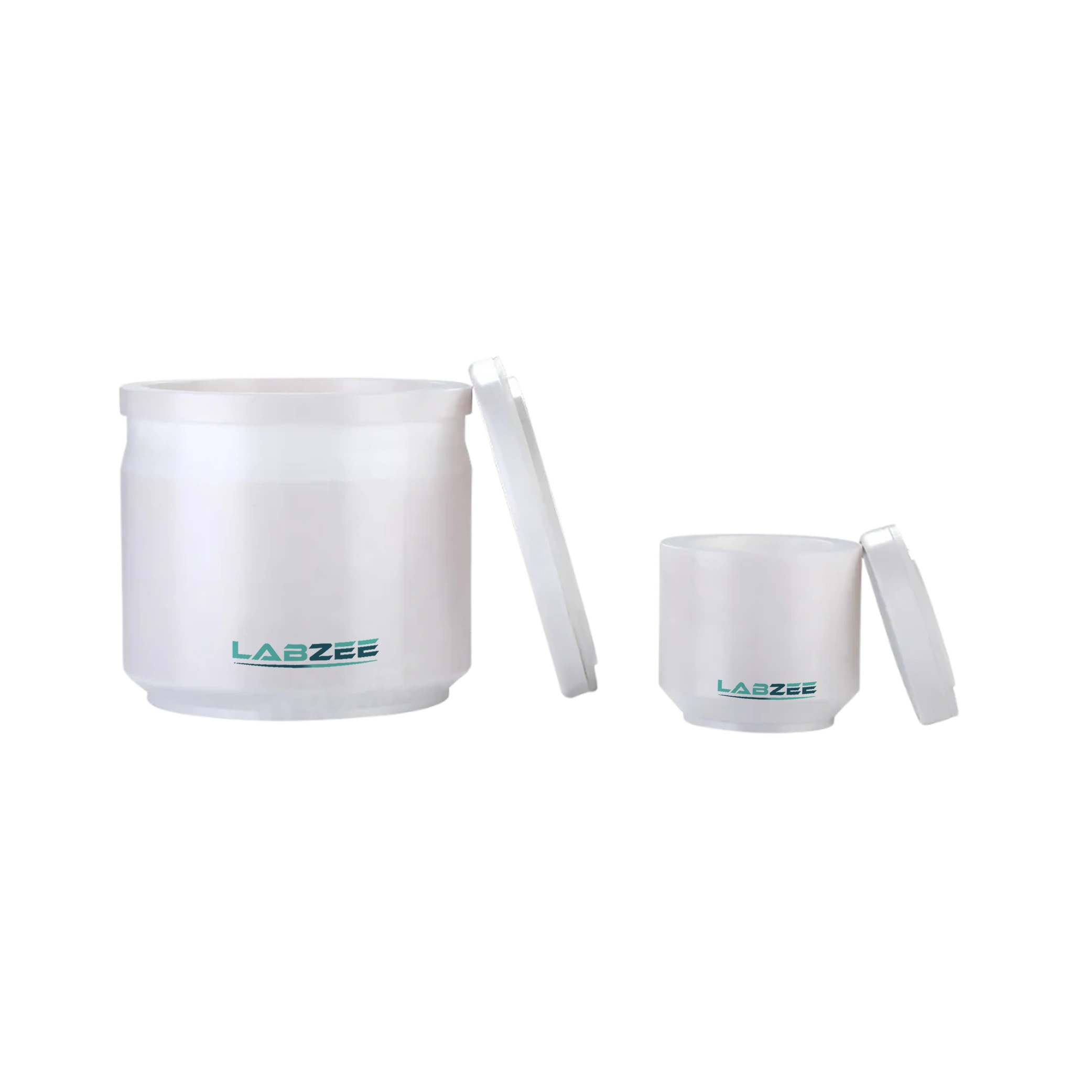

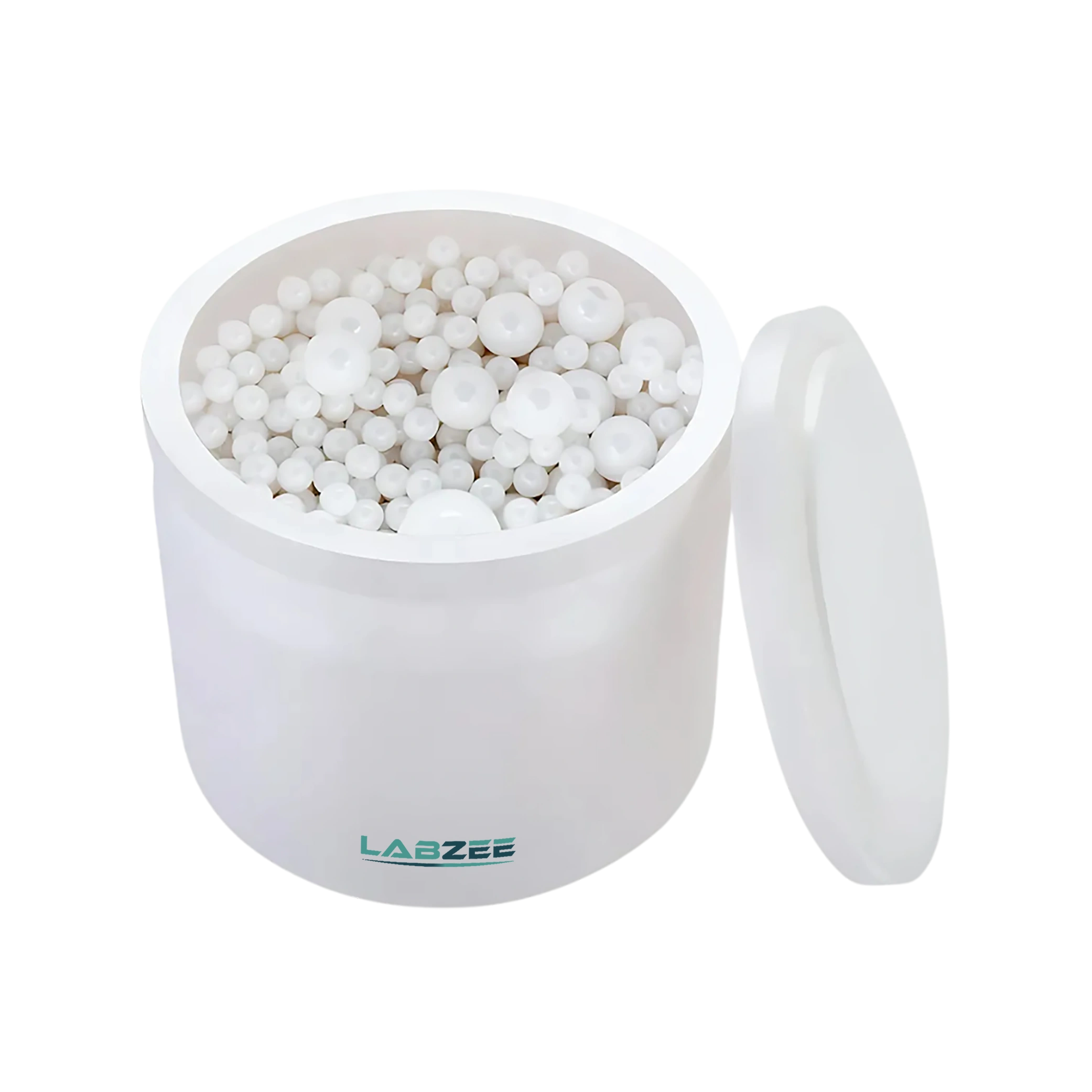

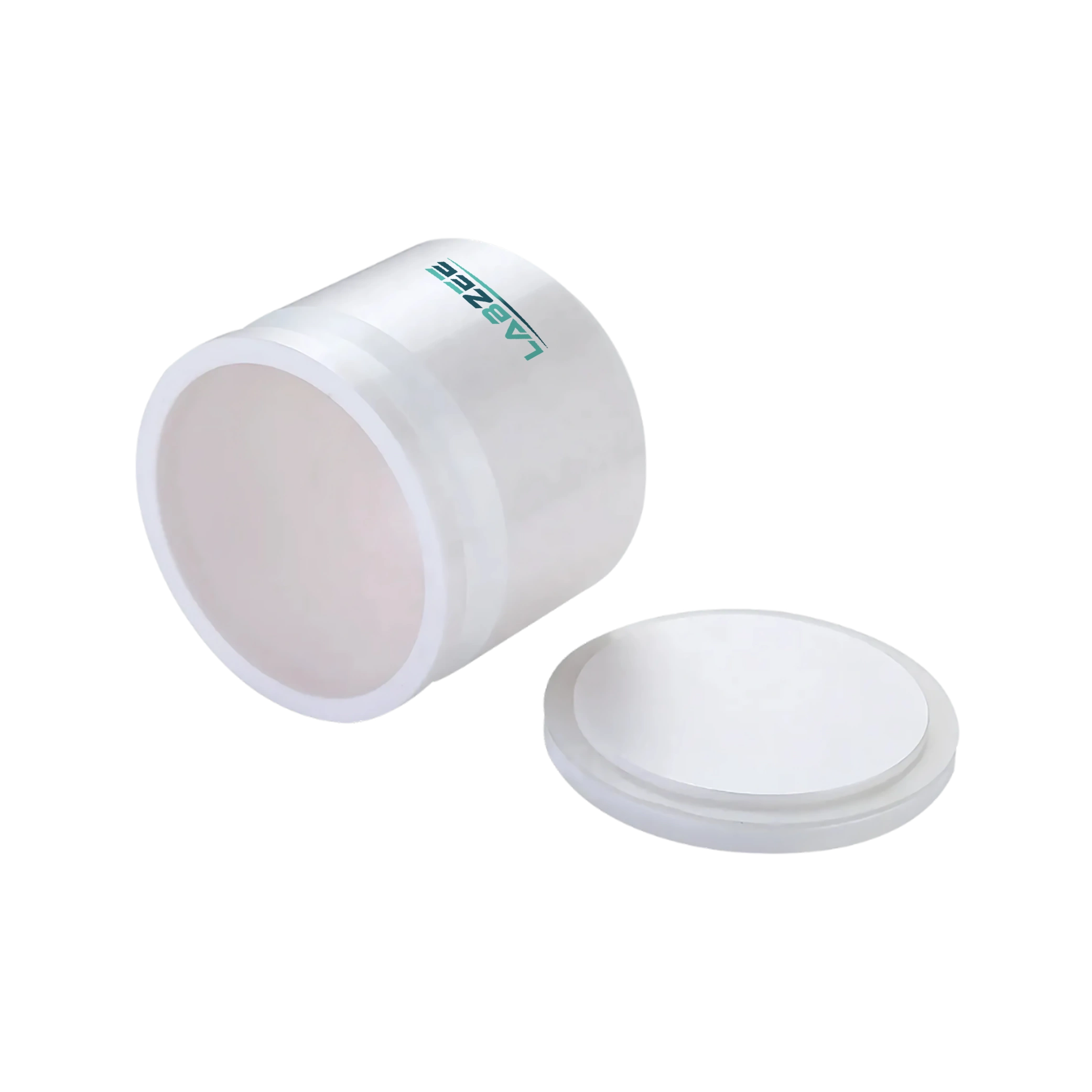

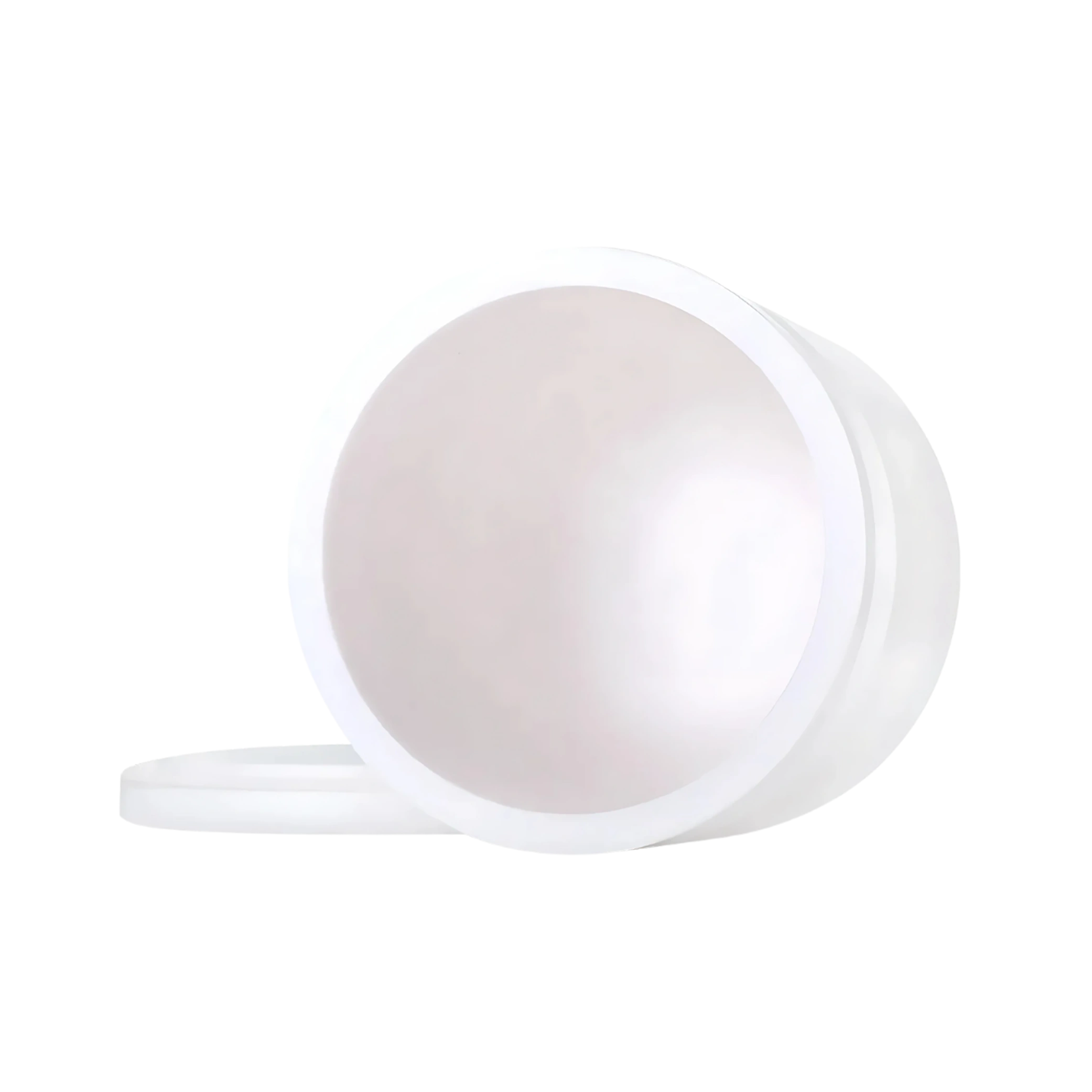

Zirconia Oxide Ball Mill Jar BZZOJ-504 is built for high-efficiency precision grinding applications. This ball mill jar offers a 500 ml capacity with a flat gasket sealing system and tightly machined body for optimal results. It is designed to prevent contamination, maintain chemical inertness, and withstand intense grinding operations. Its uniform wall thickness ensures consistent results even under prolonged and high-energy use. Our Zirconia Oxide Ball Mill Jar BZZOJ-504 is used in pigment dispersion, fine particle synthesis, ink formulation, chemical mixing, and nano-material grinding.
| Volume | 500 ml |
| Seal Type | Flat Gasket |
| Height | 100 mm |
| Bottom Diameter | 89 mm |
| Wall Thickness | 7 mm |
| Lid Thickness | 13 mm |
| Inner Diameter | 89 mm |
| Outer Diameter | 103 mm |
| Lid Weight | 0.590 Kg |
| Jar Weight | 2.096 Kg |
Our Zirconia Oxide Ball Mill Jar BZZOJ-504 is designed for use in pigment milling, ink compound homogenization, ceramic glaze mixing, catalyst material preparation, and nano-material development where precision and purity are critical.
Frequently Asked Questions
1: What makes BZZOJ-504 suitable for high-purity sample grinding?
Zirconia Oxide Ball Mill Jar BZZOJ-504 is made of chemically stable zirconia that avoids metal contamination, ensuring clean results for high-purity materials.
2: Can you use BZZOJ-504 with aggressive compounds?
Yes, the jar’s chemical resistance allows it to handle reactive and abrasive compounds without degrading or affecting the sample.
3: How is the flat gasket seal effective in BZZOJ-504?
The flat gasket creates a secure and tight seal, minimizing sample loss and ensuring reliable performance during high-speed milling.
4: Is BZZOJ-504 reusable over long durations?
Absolutely, it’s tough zirconia body and durable lid offer excellent wear resistance, making it ideal for repeated long-term usage.
5: What applications are ideal for BZZOJ-504?
Zirconia Oxide Ball Mill Jar BZZOJ-504 is perfect for fine grinding of ceramics, pigments, catalysts, and ink compounds in precision-driven R&D environments.
6: When is a Zirconia Oxide Ball Mill Jar the best choice for milling?
A Zirconia Oxide Ball Mill Jar is best used when absolute purity and high abrasion resistance are critical. It is ideal for grinding materials like ceramics, glass, pigments, and electronics-grade powders. The non-reactive nature ensures no contamination even with highly sensitive samples.
7: Can a Zirconia Oxide Ball Mill Jar be used for both dry and wet grinding?
Yes, a Zirconia Oxide Ball Mill Jar is fully suitable for both dry and wet grinding applications. It features a secure sealing system that prevents leakage during wet milling. Always ensure the jar is properly closed before operation.
8: Can the Zirconia Oxide Ball Mill Jar be used in all ball mill models?
Zirconia Oxide Ball Mill Jars are compatible with most planetary and roller-type mills. Check the dimensions and locking compatibility with your specific machine model. Using an unbalanced jar can affect performance and safety.
9: When should the Zirconia Oxide Ball Mill Jar be replaced?
A Zirconia Oxide Ball Mill Jar should be replaced when surface cracks, internal wear, or efficiency loss is observed. Although highly durable, it can wear down over extended use. Regular inspection ensures sample purity and equipment protection.
10: Can the Zirconia Oxide Ball Mill Jar be cleaned between batches?
Yes, the Zirconia Oxide Ball Mill Jar can be easily cleaned using water, alcohol, or compatible solvents. Its smooth, dense surface prevents material buildup. Avoid using abrasive tools that may damage the jar’s polish.
