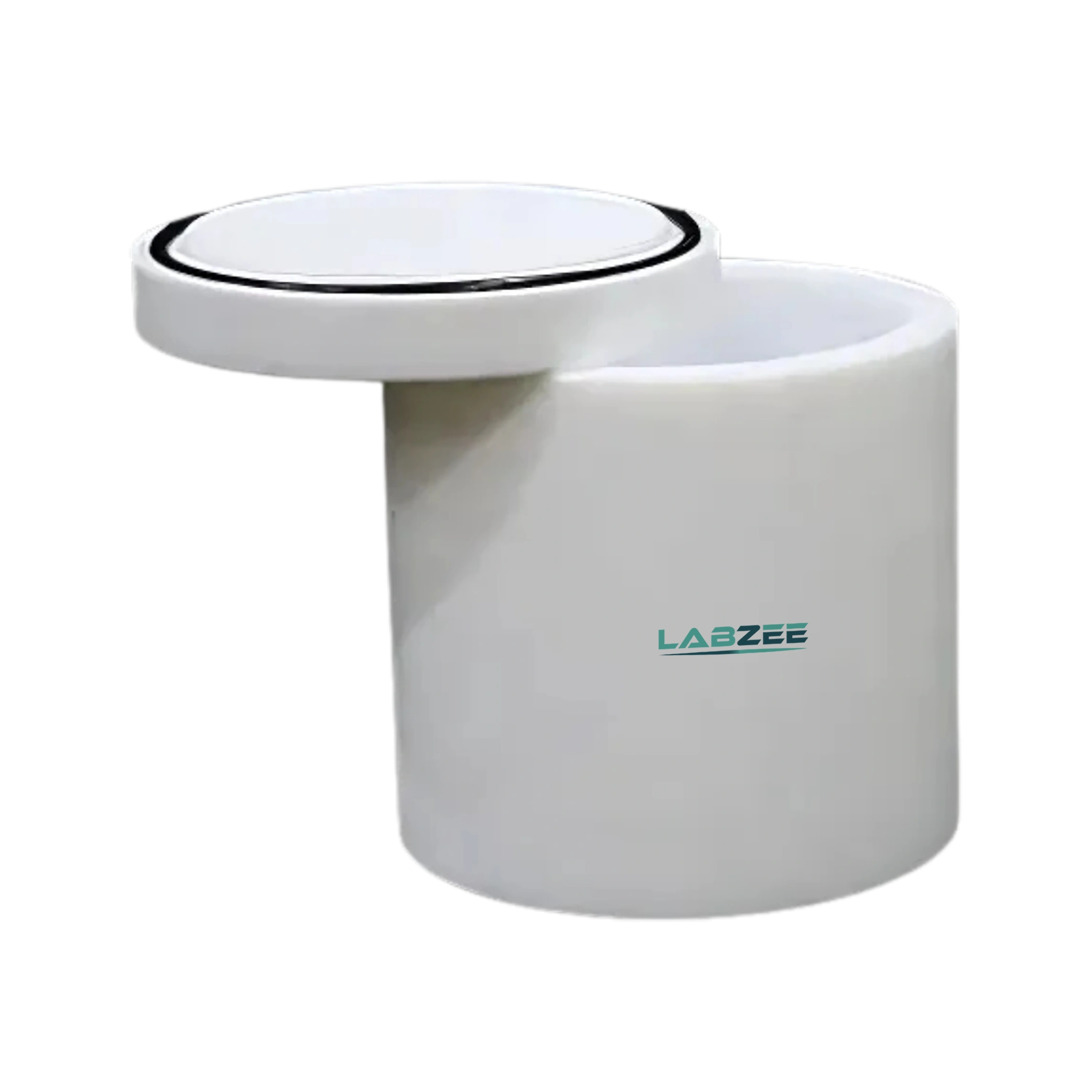

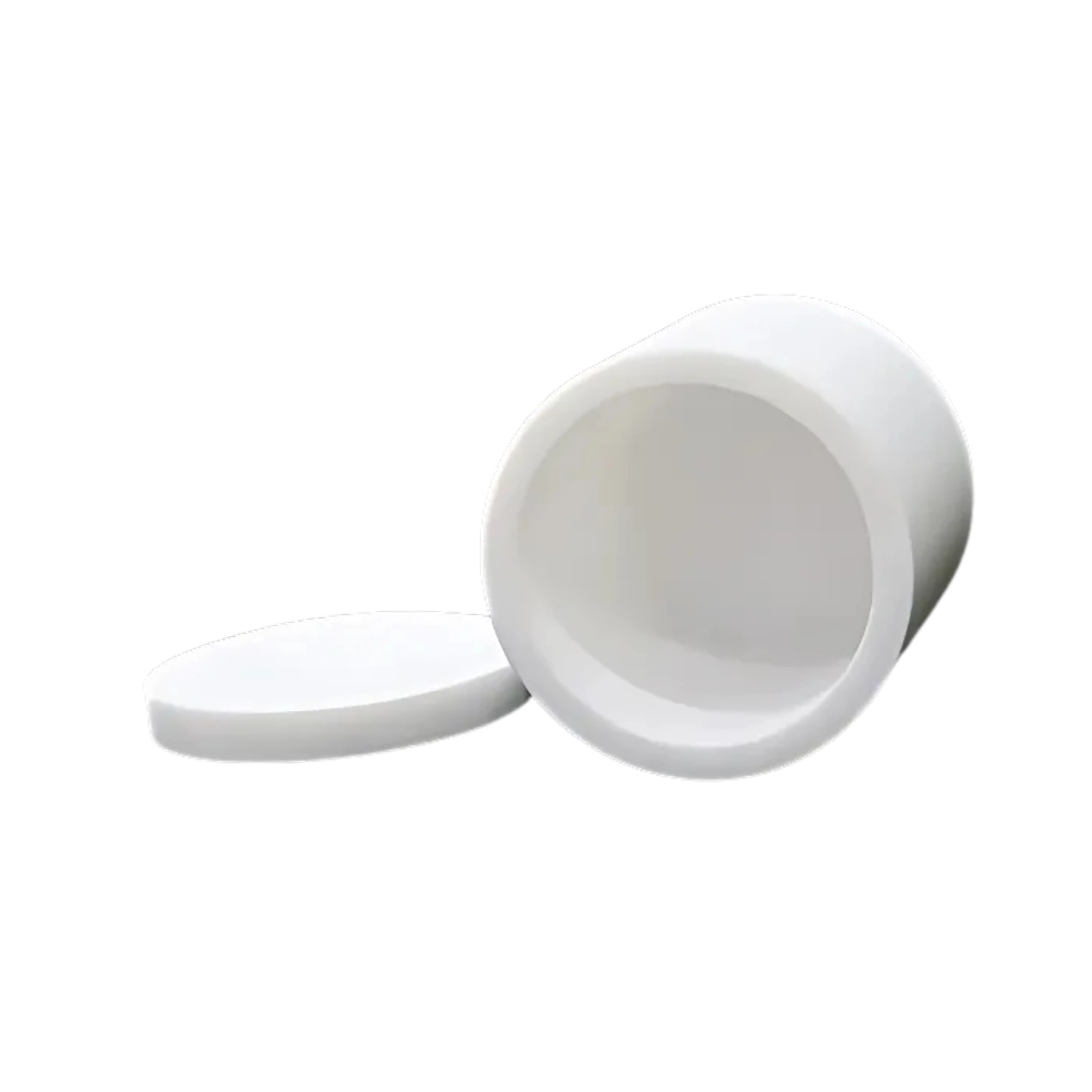

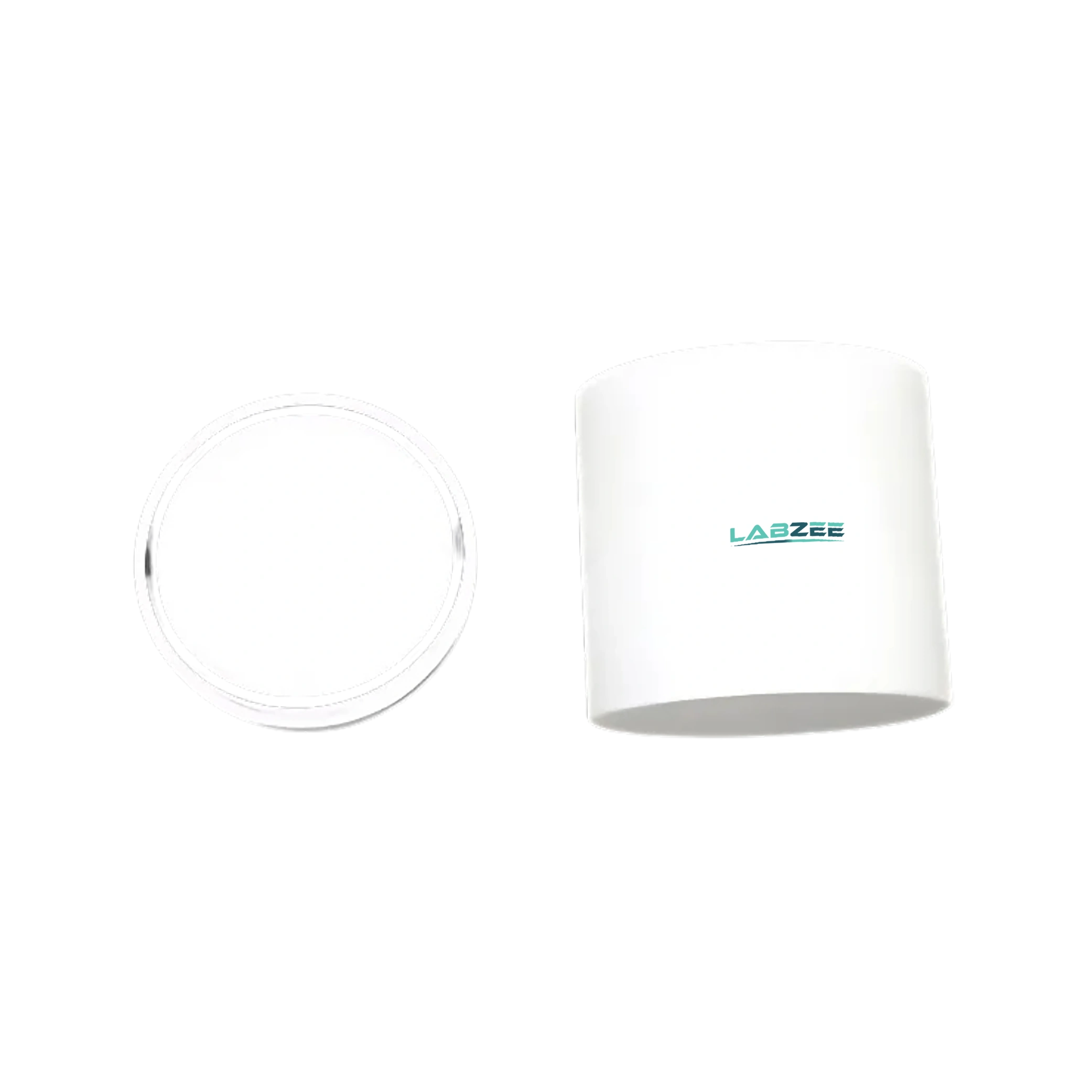

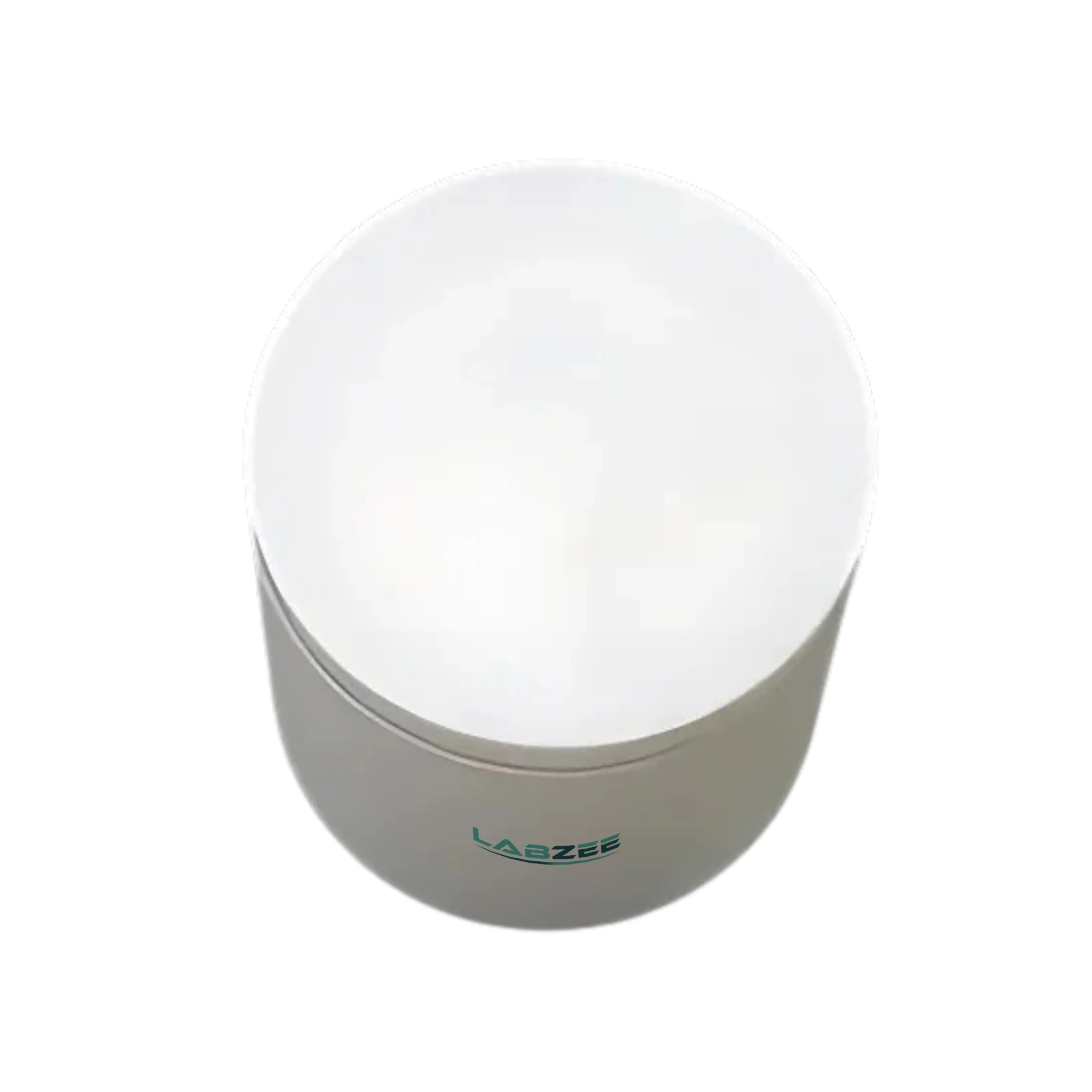

Poly Tetra Floro Ethylene Ball Mill Jar BZTBJ-511 is an ultra-high-capacity grinding jar designed for heavy-duty milling of corrosive and reactive substances at industrial scale. This Ball Mill Jar features a wall thickness of 20 mm and a cover thickness of 30 mm, providing maximum structural integrity and superior chemical resistance. It is crafted from pure PTFE, offering a completely inert environment that prevents contamination during intense grinding. Its O-ring sealing mechanism ensures a secure and leak-proof operation under high-stress conditions. Our Poly Tetra Floro Ethylene Ball Mill Jar BZTBJ-511 is ideal for processing large batches of reactive powders, volatile compounds, and high-purity chemical blends.
| Volume | 25 L |
| Seal Ring Type | O Ring |
| Height | 359 mm |
| Wall Thickness | 20 mm |
| Cover Thickness | 30 mm |
| Internal Diameter | 303.5 mm |
| External Diameter | 351 mm |
| Bottom Diameter | 189 mm |
| Cover Weight | 5.910 Kg |
| Grinding Jar Weight | 17.450 Kg |
Our Poly Tetra Floro Ethylene Ball Mill Jar BZTBJ-511 is perfect for mass-scale chemical powder processing, milling explosive or moisture-sensitive compounds, homogenizing pharmaceutical batches, and large-volume dispersion of high-purity materials in industrial environments.
Frequently Asked Questions
1: What does the total capacity of the Poly Tetra Floro Ethylene Ball Mill Jar BZTBJ-511?
The BZTBJ-511 provides a 25 L capacity, making it ideal for large-batch material processing in industrial applications.
2: Can you use BZTBJ-511 for explosive or moisture-sensitive powders?
Yes, its inert PTFE build, and tight O-ring seal make it safe for handling moisture-sensitive and volatile compounds.
3: How does BZTBJ-511 ensure leak-proof grinding?
The integrated O-ring seal offers an airtight fit that prevents leaks and safeguards sample integrity throughout the milling cycle.
4: Is Poly Tetra Floro Ethylene Ball Mill Jar BZTBJ-511 suitable for chemical manufacturing?
Absolutely, its corrosion-resistant PTFE material and large capacity are ideal for processing aggressive chemicals in bulk.
5: What makes BZTBJ-511 ideal for high-purity applications?
Its non-reactive and contamination-free PTFE surface ensures reliable results when working with ultra-pure compounds or pharmaceutical materials.
6: When is a Poly Tetra Floro Ethylene Ball Mill Jar most suitable?
A Poly Tetra Floro Ethylene Ball Mill Jar is ideal when working with highly reactive, corrosive, or ultra-sensitive materials. Its non-reactive surface prevents contamination and preserves sample purity. It is frequently used in pharmaceutical, chemical, and environmental labs.
7: Can the Poly Tetra Floro Ethylene Ball Mill Jar be used for wet grinding?
Yes, the Poly Tetra Floro Ethylene Ball Mill Jar can handle both wet and dry milling. Its hydrophobic surface minimizes sticking during wet grinding. Always ensure proper sealing before use with liquids.
8: Can metallic media be used in the Poly Tetra Floro Ethylene Ball Mill Jar?
It is recommended to use ceramic or polymer-based media with the Poly Tetra Floro Ethylene Ball Mill Jar. Metallic media may damage the soft PTFE surface and reduce performance. Always select media based on sample type and required purity.
9: When should the Poly Tetra Floro Ethylene Ball Mill Jar be replaced?
The Poly Tetra Floro Ethylene Ball Mill Jar should be replaced if it shows deformation, deep scratches, or wear. Despite its chemical resistance, it can wear over time under abrasive conditions. Regular inspection ensures contamination-free results.
10: Can the Poly Tetra Floro Ethylene Ball Mill Jar be cleaned easily?
Yes, the Poly Tetra Floro Ethylene Ball Mill Jar is exceptionally easy to clean due to its non-stick surface. Use mild detergents or lab-grade solvents depending on the residue. Avoid harsh abrasives that may scratch the inner surface.
