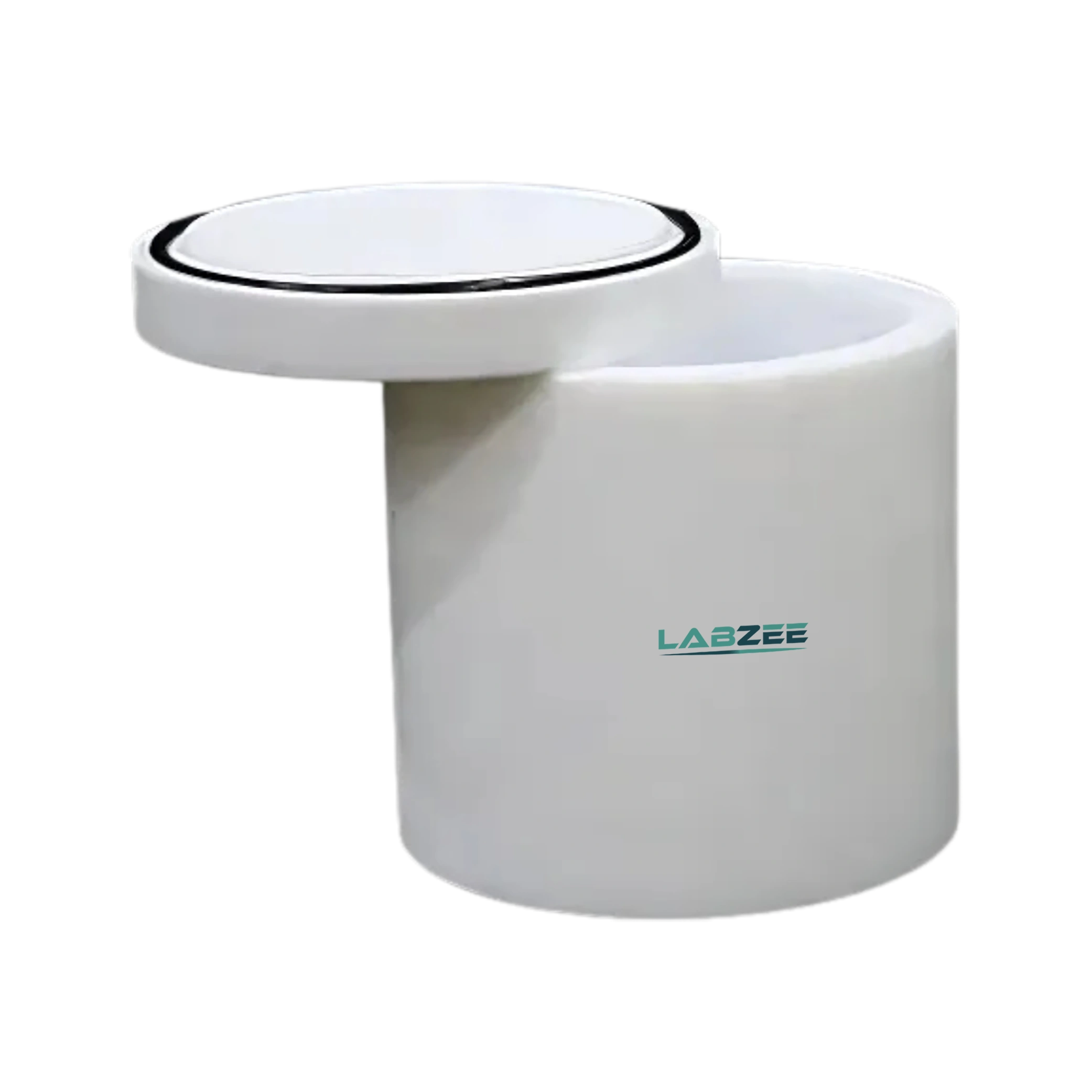

Poly Tetra Floro Ethylene Ball Mill Jar BZTBJ-510 is an extra-large capacity, precision-engineered grinding jar tailored for high-volume and chemically aggressive material processing. This Ball Mill Jar features a wall thickness of 15 mm and a cover thickness of 28 mm, ensuring robust mechanical support and superior chemical resistance. It is constructed from high-grade PTFE, providing a completely inert environment for grinding without sample contamination. Its O-ring seal enhances airtight closure, securing sensitive materials during extended milling operations. Our Poly Tetra Floro Ethylene Ball Mill Jar BZTBJ-510 is ideal for large-batch powder homogenization, high-volume chemical mixing, and reactive substance dispersion.
| Volume | 15 L |
| Seal Ring Type | O Ring |
| Height | 354 mm |
| Wall Thickness | 15 mm |
| Cover Thickness | 28 mm |
| Internal Diameter | 250 mm |
| External Diameter | 280 mm |
| Bottom Diameter | 180 mm |
| Cover Weight | 1.823 Kg |
| Grinding Jar Weight | 11.875 Kg |
Our Poly Tetra Floro Ethylene Ball Mill Jar BZTBJ-510 is best suited for grinding highly reactive compounds, processing large batches of pharmaceutical powders, homogenizing corrosive formulations, and conducting high-purity chemical milling in bulk production settings.
Frequently Asked Questions
1: What does the capacity of the Poly Tetra Floro Ethylene Ball Mill Jar BZTBJ-510?
The BZTBJ-510 has a 15 L capacity, making it highly suitable for industrial-scale and batch processing needs.
2: Can you use BZTBJ-510 for reactive or volatile substances?
Yes, its inert PTFE construction and O-ring seal offer excellent protection when handling reactive or volatile materials.
3: How does the O-ring seal in BZTBJ-510 improve performance?
The O-ring provides a secure, airtight closure, minimizing exposure and leakage during long-duration grinding operations.
4: Is Poly Tetra Floro Ethylene Ball Mill Jar BZTBJ-510 suitable for pharmaceutical compounds?
Absolutely, its non-contaminating PTFE surface ensures purity and compliance with sensitive pharmaceutical processing standards.
5: What types of industries benefit most from BZTBJ-510?
BZTBJ-510 is perfect for chemical, pharmaceutical, and materials science industries requiring large-scale, contamination-free grinding.
6: When is a Poly Tetra Floro Ethylene Ball Mill Jar most suitable?
A Poly Tetra Floro Ethylene Ball Mill Jar is ideal when working with highly reactive, corrosive, or ultra-sensitive materials. Its non-reactive surface prevents contamination and preserves sample purity. It is frequently used in pharmaceutical, chemical, and environmental labs.
7: Can the Poly Tetra Floro Ethylene Ball Mill Jar be used for wet grinding?
Yes, the Poly Tetra Floro Ethylene Ball Mill Jar can handle both wet and dry milling. Its hydrophobic surface minimizes sticking during wet grinding. Always ensure proper sealing before use with liquids.
8: Can metallic media be used in the Poly Tetra Floro Ethylene Ball Mill Jar?
It is recommended to use ceramic or polymer-based media with the Poly Tetra Floro Ethylene Ball Mill Jar. Metallic media may damage the soft PTFE surface and reduce performance. Always select media based on sample type and required purity.
9: When should the Poly Tetra Floro Ethylene Ball Mill Jar be replaced?
The Poly Tetra Floro Ethylene Ball Mill Jar should be replaced if it shows deformation, deep scratches, or wear. Despite its chemical resistance, it can wear over time under abrasive conditions. Regular inspection ensures contamination-free results.
10: Can the Poly Tetra Floro Ethylene Ball Mill Jar be cleaned easily?
Yes, the Poly Tetra Floro Ethylene Ball Mill Jar is exceptionally easy to clean due to its non-stick surface. Use mild detergents or lab-grade solvents depending on the residue. Avoid harsh abrasives that may scratch the inner surface.
